4 Create Event with Function Space
Business Context
The Events feature is designed to manage any kind of catering activity. Events can be as simple as a one-hour reception or more complex, such as a three-day business meeting with meals, breaks, and specific meeting rooms with setup and resource requirements. Any group function can be an event.

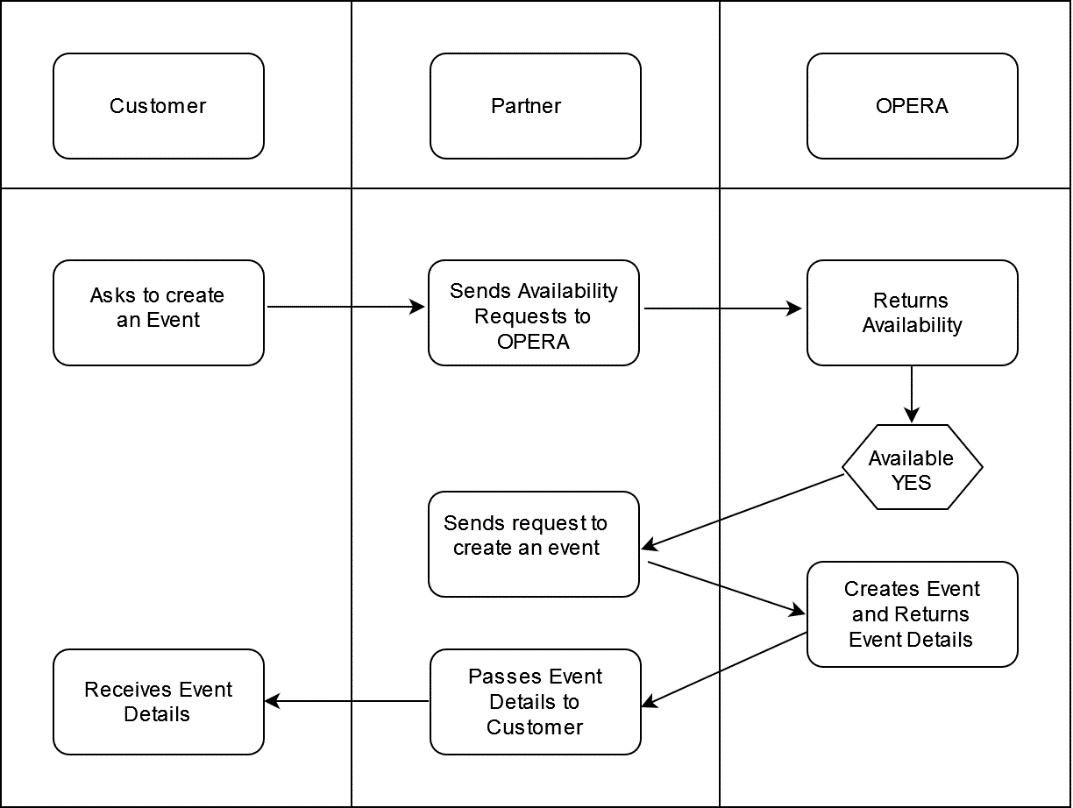

The below functional diagram explains the typical use cases for creating a new event.
Customer — The meeting manager is planning an off-site meeting for a group of VIP executives.
Partner — The partner is checking with the chosen property about meeting space availability for the selected dates.
OPERA Cloud — The application checks and returns availability request and response, creates the event, adds the details, and returns the final event detailed.
Figure 4-1 Typical use cases for creating a new event
Prerequisites
Table 4-1 Required Software Tools
| Tool | Description | Links |
|---|---|---|
|
Postman |
Postman is an API Platform that allows you to design, create and test API's. Use Postman to send API requests or to use the Postman collections provided. |
Table 4-2 Current Versions Required
| OPERA Cloud Platform Module | Description | Minimum Version |
|---|---|---|
|
OPERA Cloud Services |
The customer must have a subscription to OPERA Cloud Foundation |
|
|
OPERA Cloud Sales and Event Management |
The customer must have a subscription to OPERA Cloud Sales and Event Management |
|
|
OPERA Cloud Sales and Event Management |
For customers OHIP is included in the subscription to OPERA Cloud Foundation. Partners need a subscription to Oracle Hospitality Integration Cloud Service |
Configuration of OPERA Controls
To activate the Create Block functionality, you need to ensure the following OPERA Controls are active in the target property. You can use the following API operations to validate the settings:
Ensure that application function EVENTS - CATERING EVENTS is active
RQ: ent/config/v1/settings?hotelId={{HotelId}}¶meterNameWildCard=CATERING EVENTS
Mandatory Fields - Available Values:
Event Type
RQ: evm/config/v1/cateringEventTypes?includeInactive=false&hotelIds={{hotelId}}
Event Status Code
RQ: blk/config/v1/blockStatusCodes
Dependent Field - Available Values:
Function Space Configuration
Note:
This will return the codes available for Rental Code and Setup Styles which are required fields when creating an event with a function space.
RQ: evm/config/v1/hotels/{{HotelId}}/functionSpaces/{{FunctionSpaceCode}}/configurations
Workflow

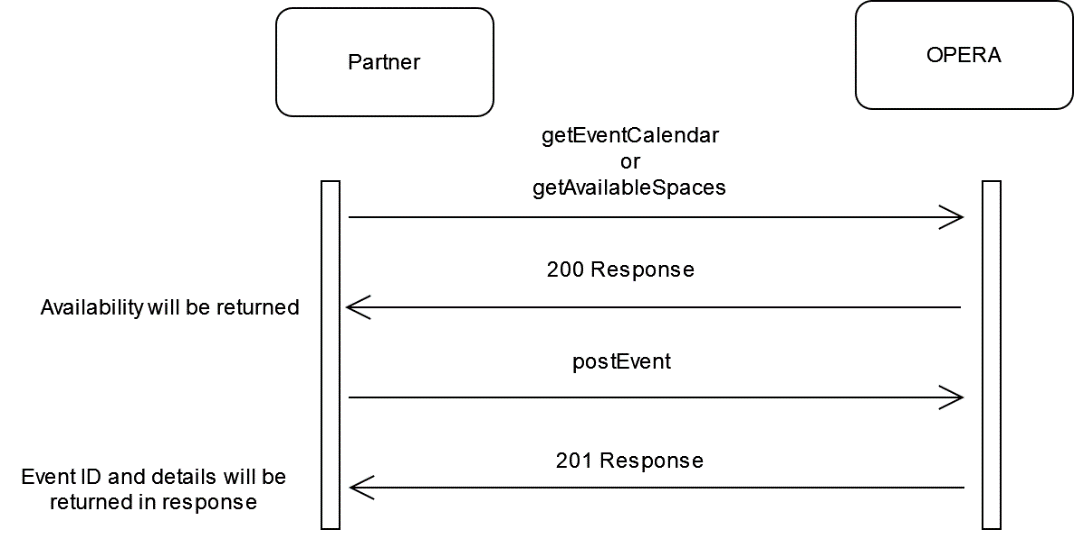

Figure 4-2 The sequence of API calls (in any direction)
Description of Steps:
A typical process to create a new event with a function space is as follows:
- Search for function space availability for the event date(s) using getEventCalendar or getAvailableSpaces. The getEventCalendar request returns function spaces available
for a specific date while the getAvailableSpaces request provides
function spaces available for the specified date and time period.
If you are creating an event without function space, then omit this
step
- If you use getAvailableSpaces, the default setup style and default rental code details are returned in the response for each space.
- Search for the blocks by date and name. If you know the internal
block ID, then omit this step. Ensure the block has an active Catering
Status and Catering Attendees is populated.
- To search for a block, you can use the REST API call.
{{HostDomain}}/operarest/{schemamap}/blk/v1/blocks?onlyOpportunities=false&offset=1&blockName={{BlockId}}&tourSeries=false&markAsRecentlyAccessed=false&leads=false&limit=20&hotelId={{HotelId}}&onlyPickupBlocks=false
- To search for a block, you can use the REST API call.
- Create the event using postEvent.
- Ensure that mandatory fields Event Type, Event Status Code, Start Time, End Time, and Expected Attendees are sent with valid values.
- If you are intending to assign a function space, ensure that the elements for Rental Code and Setup Styles are present and contain valid values.
Sample calls: Sample API calls for steps described in the diagram.
Sample forgeteventCalendar
Check Function Space Availability
getEventCalendar
GET {{HostName}}/evm/v1/hotels/{{HotelId}}/eventcalendar?eventEndDate=2025-04-21&isSortDescending=false&showAvailableRooms=true&display=ALL&eventLabel=Booking&sortingBy=Name&eventStartDate=2025-04-21
200 response:
{
"eventCalendarDetails": {
"eventSpace": [
{
"description": "Anna",
"eventSpaceAttributes": {
"spaceArea": {
"area": 960,
"unit": "SqFeet"
},
"shareable": false,
"comboSpace": false,
"alternate": false,
"maximumOccupancy": 100,
"comboElement": true,
"comboRoom": "AFCR"
},
"hotelId": "BHOTEL",
"roomId": "ANNA",
"name": "ANNA",
"building": "MAIN",
"roomOrder": 1
}
],
"eventCodes": [],
"sellMessages": {},
"totalRooms": 1
},
"links": [],
"warnings": []
} Sample for getavailablespaceslov
Check Function Space Availability
getAvailableSpaces
GET {{HostName}}/lov/v1/listOfValues/AvailableSpaces?parameterName=Event_Start¶meterName=Event_End¶meterName=HotelCode&includeInactiveFlag=false¶meterValue=2024-04-21+09:00:00.0¶meterValue=2025-04-21+17:00:00.0¶meterValue={{HotelId}}
200 response:
{
"listOfValues": {
"items": [
{
"flexfields": [
{
"parameterName": "AvailableYn",
"parameterValue": "Y"
},
{
"parameterName": "SetupCode",
"parameterValue": "THE"
},
{
"parameterName": "OccMin",
"parameterValue": "10"
},
{
"parameterName": "OccMax",
"parameterValue": "100"
},
{
"parameterName": "SetupTime"
},
{
"parameterName": "SetdownTime"
},
{
"parameterName": "RateCode",
"parameterValue": "HD"
},
{
"parameterName": "Rate",
"parameterValue": "12"
},
{
"parameterName": "ShareableYn",
"parameterValue": "N"
},
{
"parameterName": "ForceAlternateYn",
"parameterValue": "N"
}
],
"code": "001",
"name": "Argus Conference Room - 001",
"description": "Argus Conference Room - 001",
"active": true
},Sample for postEvent
Create Event with Space
POST{{HostName}}/evm/v1/events
Body:
{
"eventDetails": [
{
"eventPrimaryInfo": {
"eventId": {
"type": "EventId",
"idContext": "OPERA",
"id": "-1"
},
"hotelId": "BHOTEL"
},
"eventDetail": {
"eventName": {
"defaultText": "Meeting",
"translations": [],
"translatedTexts": []
},
"eventType": "MTG",
"eventTimeSpan": {
"startDateTime": "2025-04-21 09:00:00.0",
"endDateTime": "2025-04-21 17:00:00.0"
},
"eventStatus": {
"status": {
"code": "INQ"
}
},
"attendees": {
"expected": "30"
},
"doorcard": "Do Not Update KD API Block",
"notMoveable": false,
"displayDoorcard": true
},
"processInstructions": {
"overrideCapacity": false,
"overbook": false,
"overrideMaxgroups": false,
"warnFunctionSpace": true
},
"eventBlockInfo": {
"blockIdList": [
{
"type": "Block",
"idContext": "OPERA",
"id": "919698"
}
],
"hotelId": "BHOTEL",
"markAsRecentlyAccessed": false
},
"functionSpaceInformation": {
"functionSpaceCode": "BALT",
"functionSpace": "Baltimore",
"setupCode": "CLR",
"setupTime": "30",
"setdownTime": "30",
"rateCode": "CUSTOM",
"rentalCode": "CUSTOM",
"rentAmount": {
"amount": "500"
},
"rentalAmount": {
"amount": "500"
}
}
}
]
}201 Response: Created
{
"eventDetails": [
{
"eventPrimaryInfo": {
"eventId": {
"type": "EventId",
"idContext": "OPERA",
"id": "642344"
},
"hotelId": "BHOTEL"
},
"eventDetail": {
"eventName": {
"defaultText": "Meeting",
"translations": []
},
"eventType": "MTG",
"eventTimeSpan": {
"startDateTime": "2025-04-21 09:00:00.0",
"endDateTime": "2025-04-21 17:00:00.0"
},
"eventStatus": {
"status": {
"code": "INQ"
}
},
"attendees": {
"expected": 30
},
"doorcard": "Do Not Update KD API Block",
"masterEvent": false,
"subEvent": false,
"packageEvent": false,
"alternateEvent": false,
"notMoveable": false,
"loudEvent": false,
"hasPostings": false,
"displayDoorcard": true,
"cateringDeductInventory": false,
"eventShared": false,
"includeSpaceInPackage": false,
"eventLevelRevenueActualization": false
},
"functionSpaceInformation": {
"functionSpaceCode": "BALT",
"setupCode": "CLR",
"setupTime": 30,
"setdownTime": 30,
"rentalCode": "CUSTOM",
"rentalAmount": {
"amount": 500
}
}
}
]
}References
-
For more information, review the Anti-Patterns chapter in the OHIP user guide to learn more about functional and technical anti-patterns.
-
For more information, refer to the Events topic in the OPERA Cloud Services user guide.
