Updating Core Configuration with PSP Endpoints

Once the OPI Cloud Tenant Configuration portal is launched, OPERA Cloud users with the CCCONF role can update the Tenant core configuration details with PSP endpoints to perform credit card and token exchange transactions.

1. The OPI Cloud Tenant Configuration portal landing page appears once you configure the property through OPERA Cloud.





2. Hotel Name: Enter the Hotel name.

3. Merchant ID: Enter the Merchant ID.

   The Merchant ID configured in OPERA Cloud should match exactly with the Merchant ID that is configured in the OPI Cloud for that property. If the ID is not the same, OPI will reject the transaction from that property due to a mismatched MerchantID. To locate the Merchant ID in OPERA Cloud Administration Menu > Interfaces > Property Interfaces > Select the EFT Interface > Click Edit. Go to the Translation tab and the Merchant ID is configured here.

4. Donations Supported: If the check box is selected that means the Donation is supported by PMS. If the check box is not selected that means the Donation is not supported.

5. CC Surcharge Supported: If the check box is selected that means the Credit Card Surcharge is supported by PMS. If the check box is not selected that means Credit Card Surcharge is not supported.

   Note:

   • OPERA Cloud, OPERA 5, or Suite 8 does not support the Donations or Credit Card Surcharge Support through OPI Cloud at this time.

   • The Save option allows you to save the Core Configuration only after the Payment Service Provider is selected.

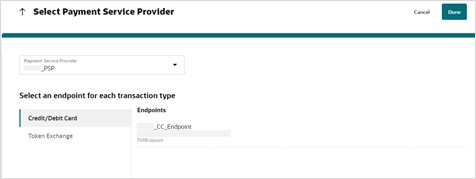

6. Click Select to select the Payment Service Provider.

   The Select Payment Service Provider screen appears.





7. Select the Payment Service Provider from the list.

   Once the PSP is selected, the lists of configured endpoints for each transaction type are displayed.

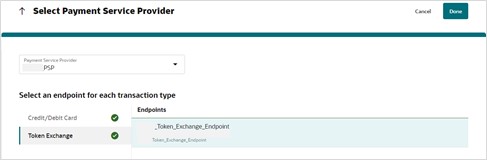

8. Select an endpoint for each transaction type (Credit/Debit Card or Token Exchange) from the Endpoints list.

   You can use the up arrow icon to navigate to Tenant Core Configuration screen.





   Once the endpoints are selected for each transaction type, you will see a tick mark next to the Transaction Type (Credit/Debit Card or Token Exchange).

9. Click Done.

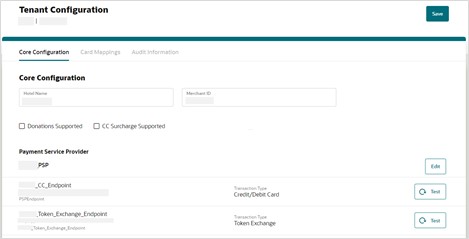

   The Tenant Core Configuration screen appears with mapped PSP endpoints.





10. Click the Test icon to test the endpoint connectivity.

    • If the PSP endpoint test is successful, the connection is successful.

    • If the PSP endpoint test is unsuccessful, the connection fails.

      If a test fails, you need to access the OPI Cloud logs to review the issue.





11. Click Save and you will see a confirmation that Core Configuration has been updated successfully.

    You will see a confirmation that the Core Configuration has been updated successfully.

    Whenever you are trying to update any of the following fields, you will see a message ‘Configuration update may take up to 15 mins to reflect in runtime’.

    • Hotel Name

    • Merchant ID

    • Donations Supported

    • CC Surcharge Supported

    • Endpoint for each transaction type

    Note:

    The Sign Out option allows you to logout from the OPI Cloud Tenant Configuration portal. When you login next time, you will directly navigate to the Tenant Core Configuration landing page as you have already configured the property using OPERA Cloud.
