WebLogic Node Manager

Cert Manager also allows the user to connect to the WebLogic Admin Server, and update the certificate associated with the Node Manager.

This option will be disabled until you have the WebLogic managed server certificates configured.
  1. After WebLogic server certificates are configured, select Configure the certificates for the WebLogic Node Manager.

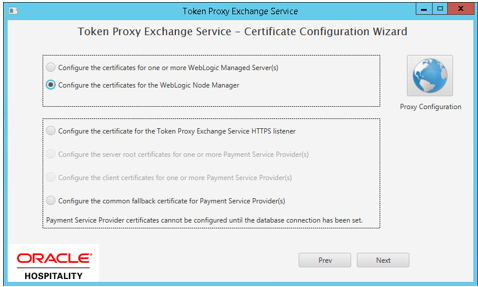

    This image shows configuration of the certificates for the WebLogic Node Manager

  2. You will be provided with a list of the machines that are present on your WebLogic instance.

  3. Select the Machine that you want to assign a certificate to. If you need to add certificates to the Machine 1 and Machine 2, repeat the process for both.

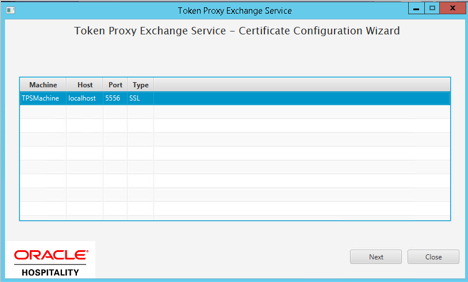

    This image shows how to select machine that you want to assign a certificate to
  4. The Cert Manager allows the supported certificate to be imported by browsing or using drag and drop. Browse to the location of the certificate you want to import from add icon (Add icon ) available on the top right of the page or you can also drag the certificate to the Cert Manager page (be attentive of the File Extension filter in the file browser window).

    This image shows certificate configuration wizard.
  5. You will be prompted to supply the password for the certificate you have selected. Enter the password and select Decrypt.

    This image prompts to provide the password for the certificate you have selected.
  6. If the entered password is correct, then you should see a file read successfully message.

    This image shows PFX file read message successfully.

  7. The Cert Manager will display the certificate chains from the certificate provided.

  8. Select from the Active Certificate Chain drop-down list, the required alias if more than one is available.

  9. This will display the associated Certificate Expiry Date and Status.

    This image shows the certificate chains from the certificate provided
  10. On the next page you will have four options to configure the hostname, so the node manager matches the hostname the certificate is issued to.
    • Leave the Node Manager configuration unaltered:

      • Allows a user to make these changes in WebLogic manually if they required or it can be that the value is already correct so needs no update.

    • Update the NodeManager Hostname to the following configuration:

      • Allows user to update the NodeManager Hostname to a value defined by the user.

    • Update the NodeManager Hostname to the address specified by the CN (CommonName) field of the certificate subject name.

      • Allows users to set the Hostname to a value same as the CN value.

    • Update the NodeManager hostname to the address listed in the SubjectAltName of the certificate:

      • Allows user to update the NodeManager hostname to the address specified by the Alternative Name of the certificate set the NodeManager value as the AltName value selected from the drop-down menu.

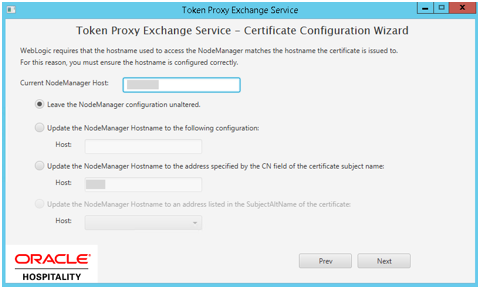

    This image shows options to configure the hostname

  11. Click Next to choose a password for the keystore.

  12. Provide and confirm the password that meets the minimum requirements, for the keystore that will store the Node manager certificate.

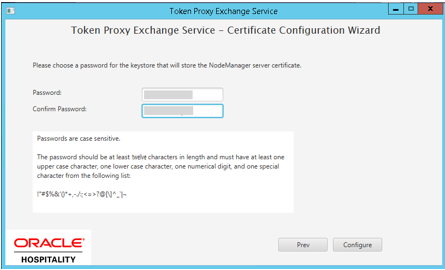

    This image shows how to provide and confirm the password.

  13. Click Configure to configure the Node manager certificates.

    Managed Server identity keystore has been updated, it is important that the WebLogic and Node manager are manually restarted to make the changes come into effect. Click OK to return to the option selection screen.

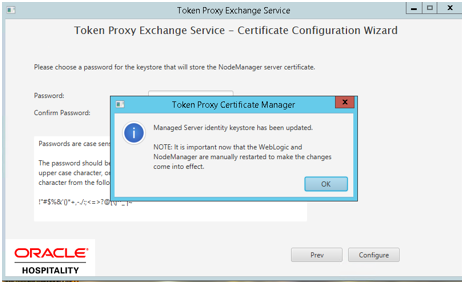

    This image shows Managed Server identity keystore has been updated
