1 Introduction

Oracle Retail Fiscal Management Cloud Service (RMFCS) is a cloud native solution that leverages the most recent and advanced technologies used in Oracle Cloud applications and Merchandise Foundation Cloud Service Suite Architecture.

Fiscal Management Cloud Service is a JET and Java based application deployed on Oracle Cloud Infrastructure along with Oracle Retail Merchandise Cloud Services. The applications are deployed in a highly available, high performance, horizontally scalable architecture.

Key Technical Features:

  • JET Redwood themed application

  • Rest Services to integrate with external systems

  • OAuth2.0 based authentication through Oracle Cloud Infrastructure Identity and Access Management (OCI IAM)

  • Batch programs resides inside MFCS batch scheduler

  • DAS/GG and RDS data replication available upon request

  • Workflow based development

  • Language and Notification customization through Retail Home application

Please refer to Merchandising Cloud Service Suite Architecture documentation for more details.

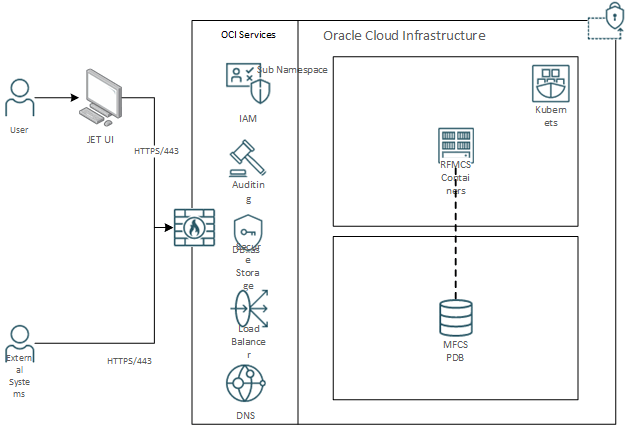

Figure 1-1 RFMCS Architecture in OCI

RFM Overview
