RIB-EXT Side of Configuration to Point to External Application
Below are the steps to point rib-ext to the correct injector service.
Table 4-2
Category | Step | Comment |
---|---|---|

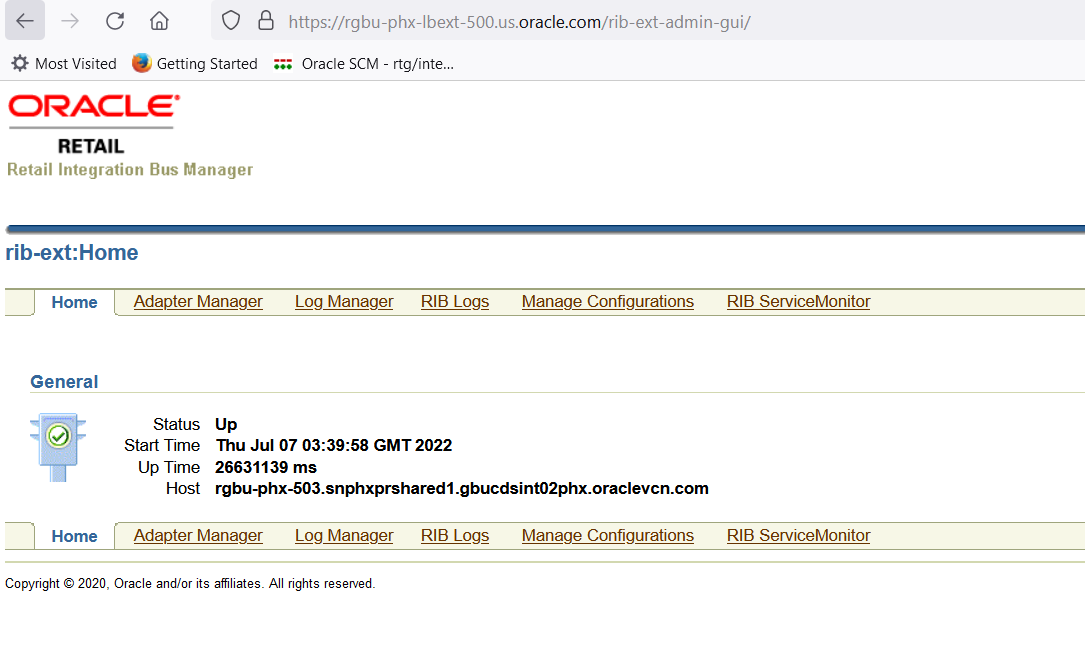

Access RIB Admin GUI |
Access the rib admin GUI at https://<external-load-balancer>/rib-ext-admin-gui Log in with the admin user. |
|

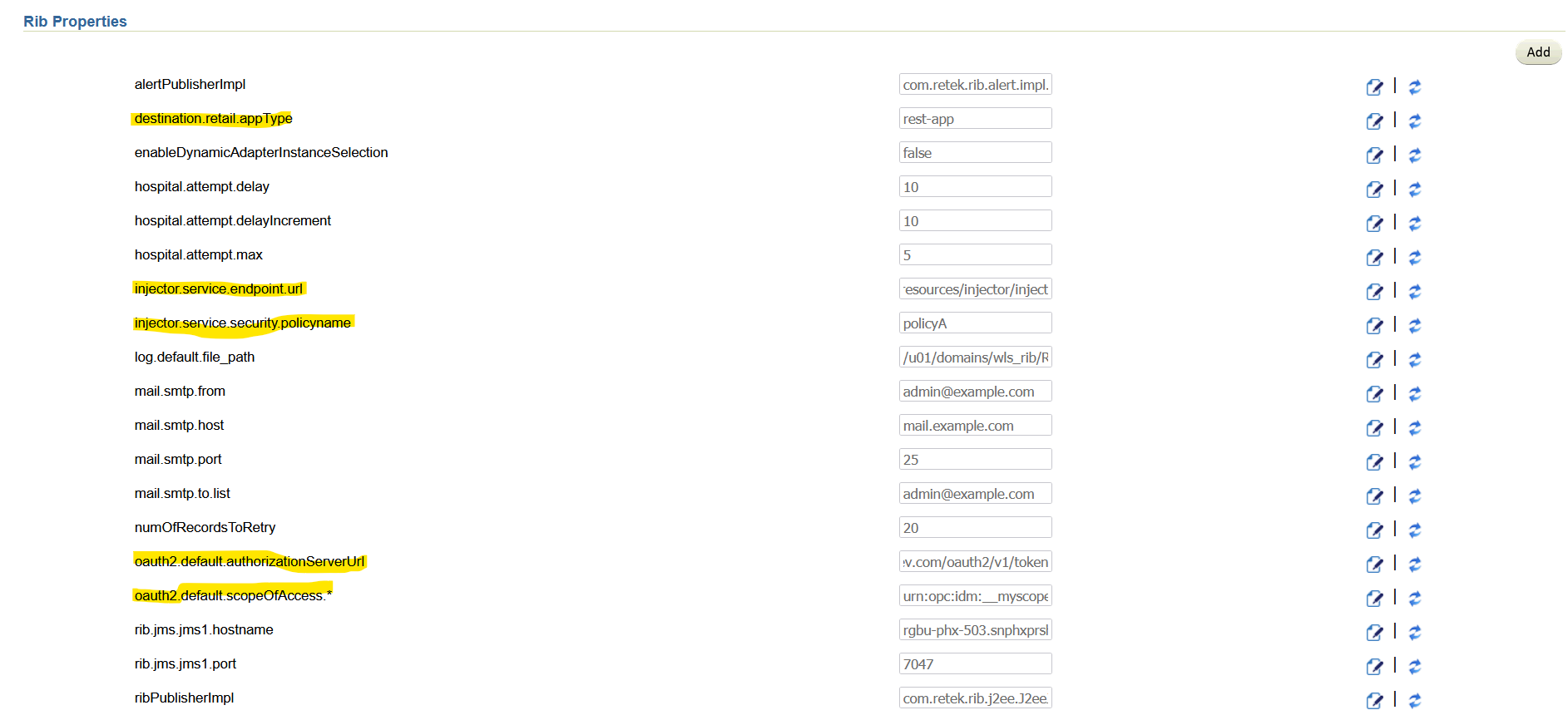

Verify Configuration and update |
Navigate to Manage Configurations -> System options Search for and verify the following:
|
|
Supported Grant Types for OAuth2 |
There are two grant type supported. Based on the use case follow steps below. |
|
Steps for grant_type as password |
||

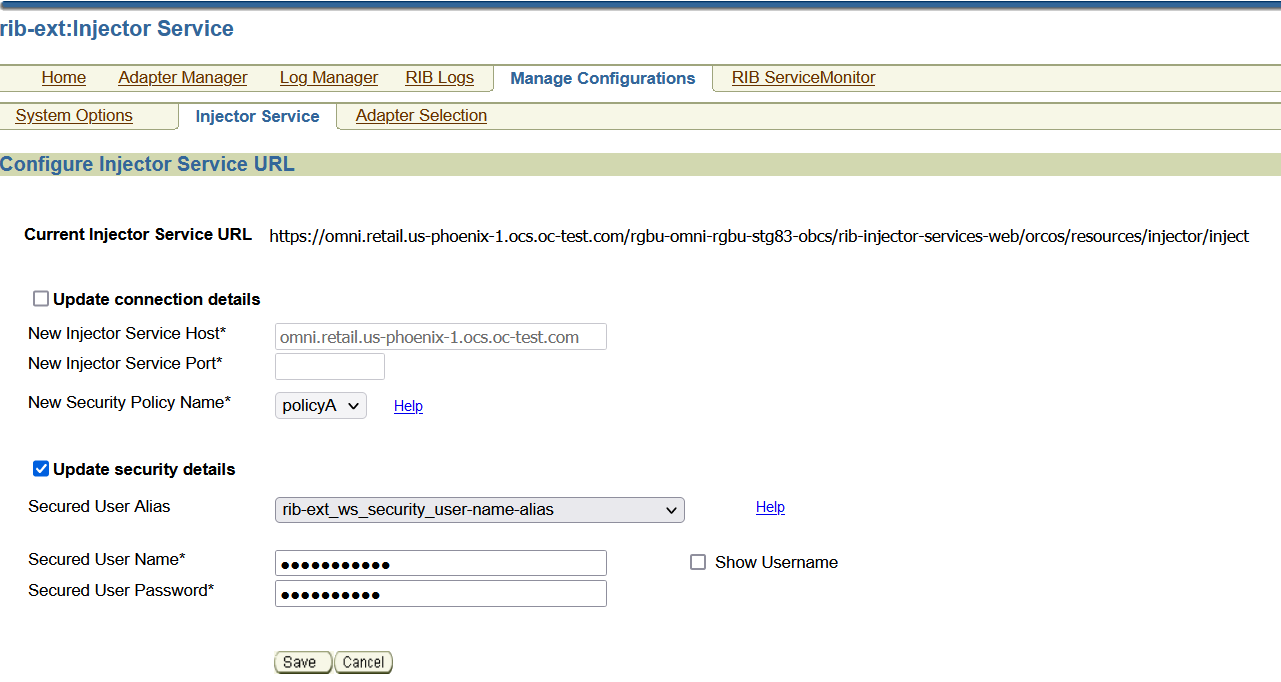

Update username and password |
Navigate to Manage Configurations - > Injector Service Update details
|
|

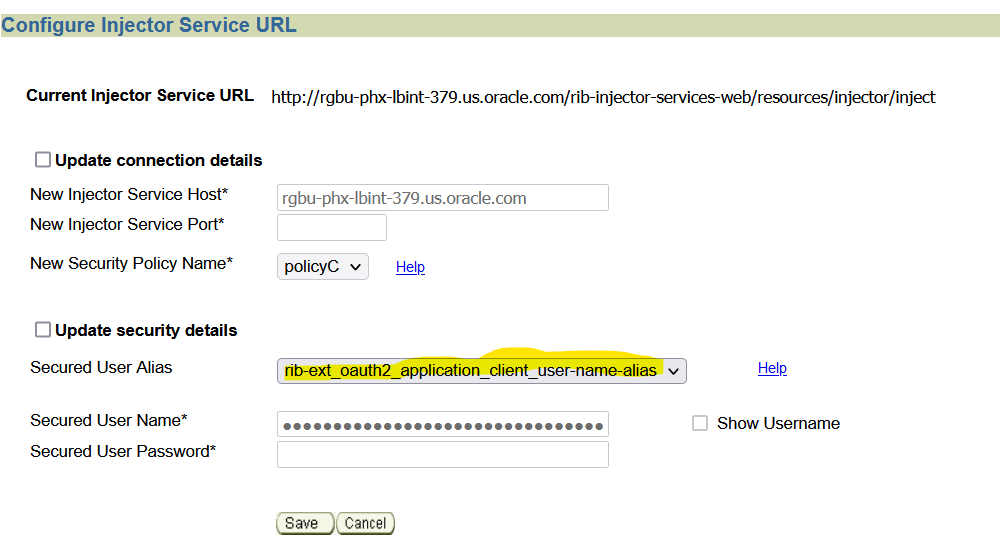

Update ClientID/Secret needed for token generation |
Navigate to Manage Configurations - > Injector Service Choose rib-ext_oauth2_application_client_user-name-alias from drop down and update details
|
|
How to verify provided injector service details are correct |
Verify if the provided injector service URL and credentials are correct for grant_type password using curl. |
Execute the following curl commands for grant_type password: ClientId=56c7eb72f11b43bb98bf2570fa2353eb ClientSecret=bb18aa22-4bb4-41d1-9ed4-fea276651e28 IDCSUrl=https://idcs-24e4baae56764e91be371e6a2060d66e.identity.c9dev2.oc9qadev.com un=integrationUser pw=Welcome@1234 AccessToken=$(curl -i -X POST \ --user $ClientId:$ClientSecret \ -H "Content-Type: application/x-www-form-urlencoded;charset=UTF-8" \ $IDCSUrl/oauth2/v1/token \ -d "grant_type=password&username=$un&password=$pw&scope=urn:opc:idm:__myscopes__" | grep -o -P '(?<=access_token":").*(?=","token_type)') echo $AccessToken ribExtServiceUrl=https://<external-app-load-balancer>/rib-injector-services-web/resources/injector/ping curl -ivkL --noproxy '*' -H "Authorization: Bearer $AccessToken" -H "Content-Type: applica-tion/xml" -X GET $ribExtServiceUrl if you get a 200 response, then the configuration is correct if you get 401 unauthorized, then Client ID and secret are incorrect |
Steps for grant_type as client credentials |
||

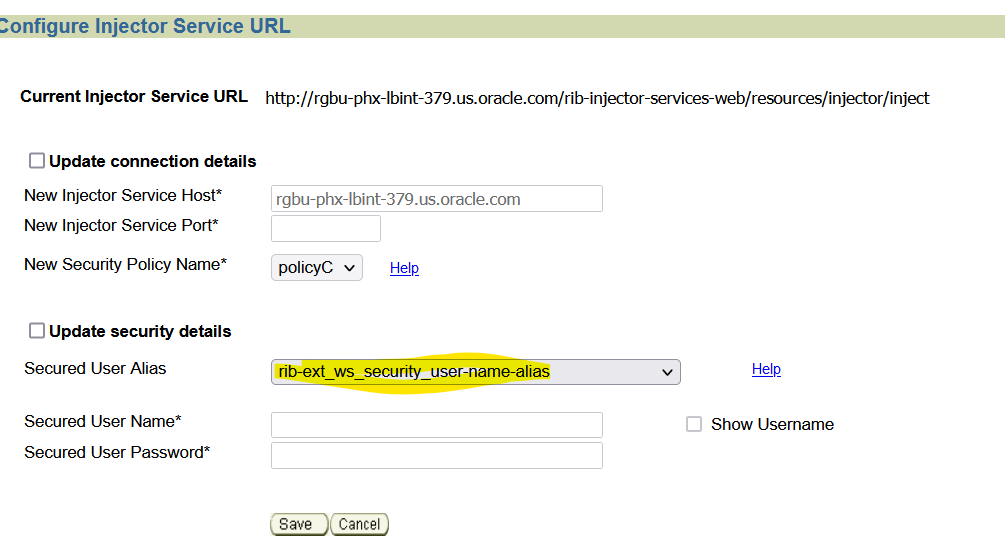

Update username and password to empty |
Navigate to Manage Configurations - > Injector Service Update details.
|
|

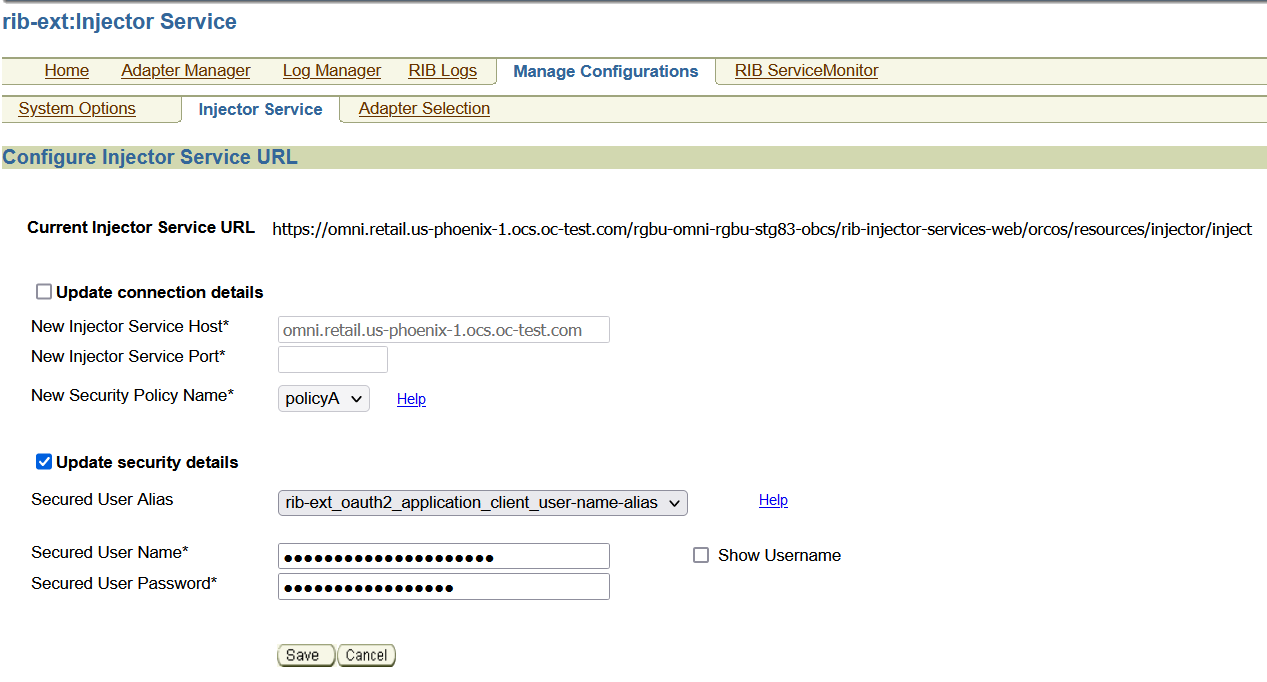

Update ClientID/Secret |
Navigate to Manage Configurations - > Injector Service Update details
|
|

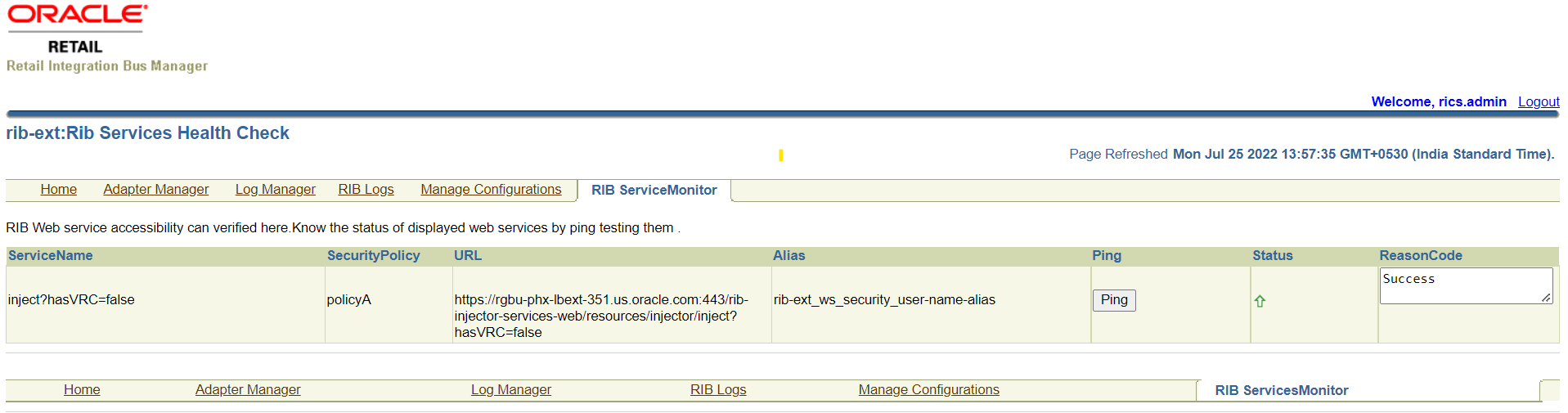

Ping Test |
Navigate to Manage Configurations -> RIB Service Monitor
|
|
How to verify provided injector service details are correct |
Verify if the provided injector service URL and credentials are correct. |
Execute the following curl commands ClientId=56c7eb72f11b43bb98bf2570fa2353eb ClientSecret=bb18aa22-4bb4-41d1-9ed4-fea276651e28 IDCSUrl=https://idcs-24e4baae56764e91be371e6a2060d66e.identity.c9dev2.oc9qadev.com AccessToken=$(curl -i -X POST \ --user $ClientId:$ClientSecret \ -H "Content-Type: applica-tion/x-www-form-urlencoded;charset=UTF-8" \ $IDCSUrl/oauth2/v1/token \ -d "grant_type=client_credentials&scope=urn:opc:idm:__myscopes__" | grep -o -P '(?<=access_token":").*(?=","token_type)') ribExtServiceUrl=https://rgbu-phx-lbext-351.us.oracle.com/rib-injector-services-web/resources/injector/ping curl -ivkL --noproxy '*' -H "Authorization: Bearer $AccessToken" -H "Content-Type: applica-tion/xml" -X GET $ribExtServiceUrl |
