Pull-Down Menus

The user interface has two pull-down menus that provide access to a variety of functionality.

The Actions pull-down menu provides functionality that you use to manipulate the application data.

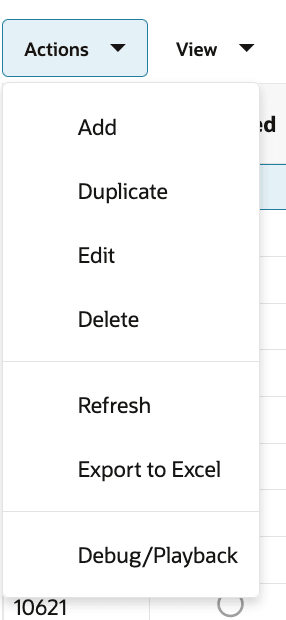

Figure 10-1 Actions Pull-Down Menu

Description of Figure 10-1 follows
Description of "Figure 10-1 Actions Pull-Down Menu"
Action Description

Create Run

In Run Overview, takes you to the Optimization Setup train stop.

Copy Run

In Run Overview, used to create a duplicate of an existing run.

Delete Run

In Run Overview, used to delete a run.

Export to Excel

Used to export the set of rows displayed to Excel.

Add

In Business Rules-Pricing Groups, used to add data.

Edit

In Business Rules-Pricing Groups, used to edit data.

Delete

In Business Rules-Pricing Groups, used to delete data.

Create

In Fixture and Product Data, used to create.

The View pull-down menu can be used to adjust how the display is organized.

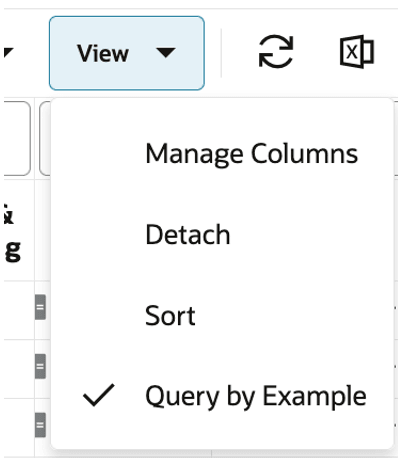

Figure 10-2 View Pull-Down Menu

This image shows the view pull-down menu.
The options provided are:
Action Description
Manage Columns Provides the ability to choose/hide columns and reorder them.
Detach Maximizes the table to fit your browser.
Sort Provides the ability to specify up to three columns to sort the data in ascending or descending order for each column.

Query by Example (Filter Options)

Query by Example can be turned off or on by clicking the option in View menu or by clicking the Query by Example icon in the table toolbar. Clicking the icon displays empty text boxes over the table. You can filter the table data based on the filter on each column.
