Configure CCB Buckets

This page details how to add new bucket configurations and bucket ranges for configured buckets for Oracle Utilities Customer Care and Billing (CCB) application.

On this page:

Add a New Bucket Configuration

To add a new bucket configuration:

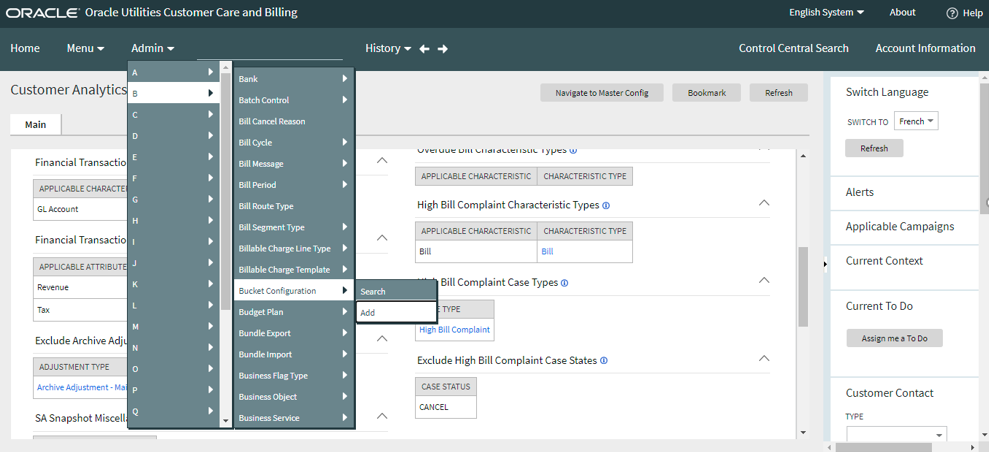

  1. Navigate to the Add Bucket Configuration page from the Admin menu.

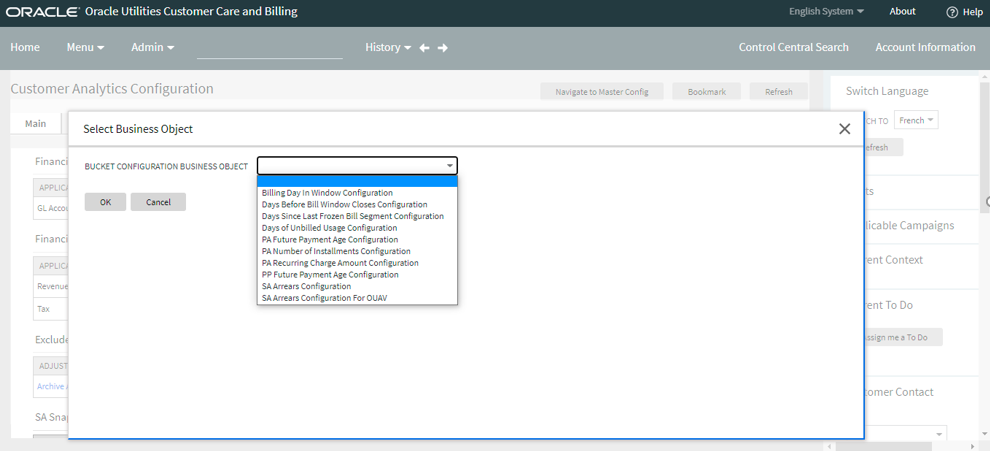

  2. On the resulting Select Business Object drop-down menu, select the business object for which the buckets are to be configured and click OK.

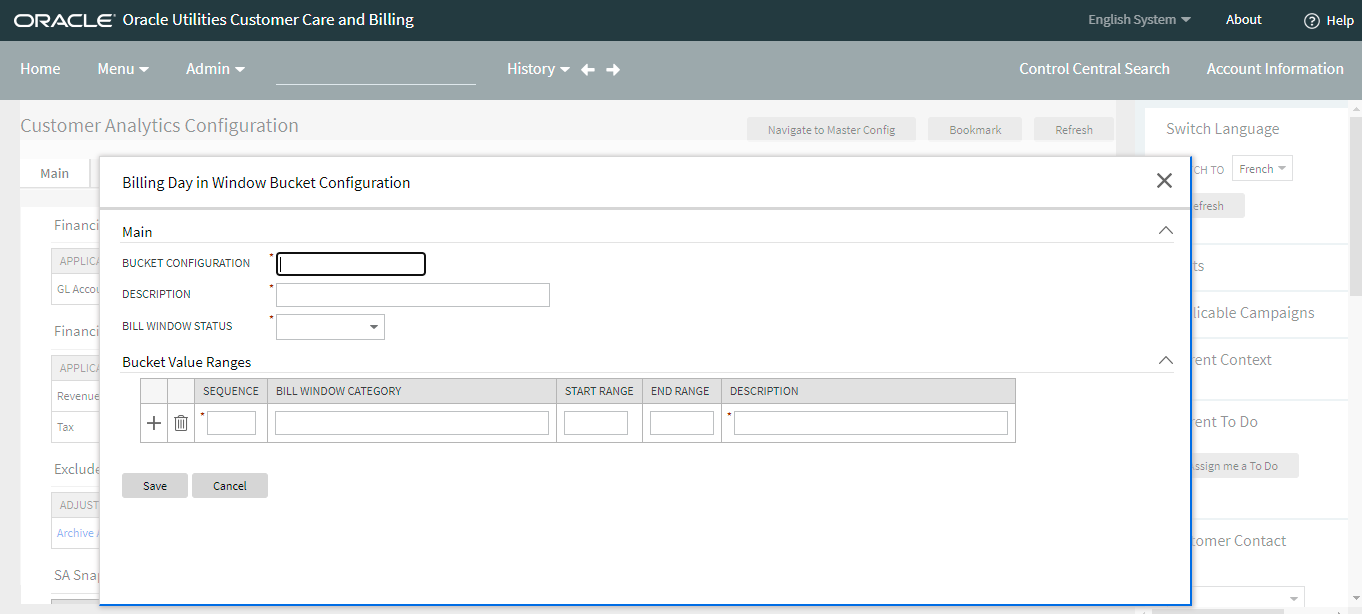

  3. A new page for the selected configuration appears. Enter the required fields and also provide the bucket value ranges. Click Save and close the window.

Back to Top

Add Bucket Ranges for Configured Buckets

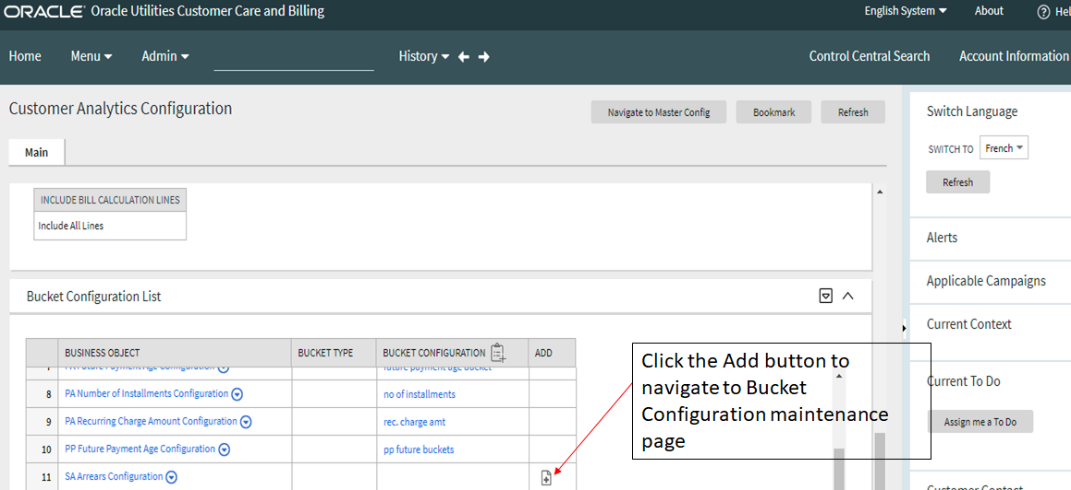

  1. To navigate to the Bucket Configuration page of a bucket that has been added to the configuration list, but for which ranges have not been set up yet, click the Add (+) button (located in the Add column).

  2. Populate the Bucket Configuration and the Description text fields.

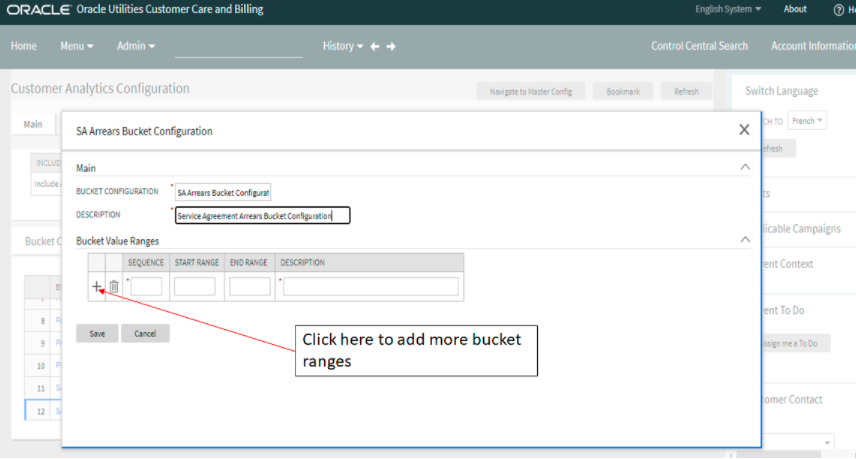

  3. Provide values in the Bucket Value Ranges section. To add a new bucket range, click the Add (+) button on the left. While providing the bucket value ranges, ensure that:
    • At least one bucket has a start range of 0.
    • At least one bucket has an end range of 99999.
    • There is not overlapping between bucket ranges. For example, if there is a bucket with start range of 1 and an end range of 10, there cannot be a bucket with a start range of 5 and an end range of 13 (5 to 10 is the overlapping range).
    • The bucket ranges do not have gaps. For example, if there is a bucket with start range as 1 and end range as 10, the start range for the next consecutive bucket should be 11.
