TOU 101 Module

This module educates customers about when electricity is most expensive based on their TOU rate plan. The module provides customers with the following information:

Whether electricity prices differ on weekdays and weekends
How much more expensive peak prices are than oﬀ-peak prices
The hours during which electricity is most expensive
A visual timeline that displays oﬀ-peak, partial-peak, and peak hours

Design

The following images show examples of the TOU 101 module followed by the available configuration options.

Note that this module was designed to be used in conjunction with the Hourly Usage module. Oracle Utilities requires that the colors and charts for these modules match and are aligned to show the customer the visual connection between each hour's price and the customer's usage during each hour.

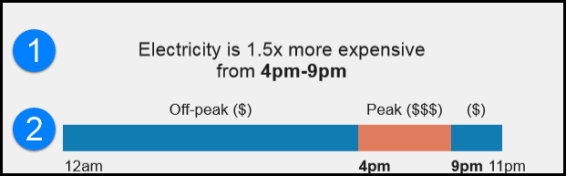

This image shows an example using only peak and off-peak periods:

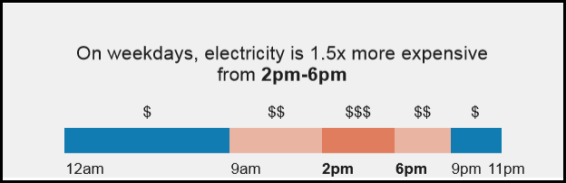

This image shows an example using peak, partial-peak, and off-peak periods:

Configuration Options

For each element listed in the table, indicate the desired configuration in the Input Value column. If you do not provide an input for optional configurations, the default will be used.

Image Number	Configuration Option	Input Value
1	Peak Time Price Ratio The introduction statement of the TOU 101 module identifies how much more expensive electricity is during peak hours. For example: On weekdays, electricity is 1.5x more expensive from 2pm to 6pm. By default, this value is automatically calculated by dividing the peak price by .off-peak price, based on the rate plan details provided .	Required Choose one of the following: Use the default calculation. Use this peak time price ratio:
1	Peak Time Hours The introduction statement of the TOU 101 module identifies the hours included in peak time pricing. For example: On weekdays, electricity is 1.5x more expensive from 2pm to 6pm. Note that this value, and the Peak Time Hours value in the Hourly Usage module must be the same.	Required Specify the peak hours: Specify partial peak hours (if needed):
2	Bar Chart Colors Colors in the bar graph for Off-peak, Partial peak, and Peak can match the utility’s color palette, if desired. The colors shown are the default colors. Research has shown that using a bright color to identify the peak periods is the most successful. Attention to contrast and accessibility guidelines should be considered if changing the default colors. Note that the colors used here must be the same as the colors used in the Hourly Usage module.	Optional Choose one of the following: Use the default colors. Work with your Delivery Team to specify other colors.
2	Peak Time Names You can designate the name of peak and off-peak ranges on the bar chart. Default values include: Off-peak periods: Off-peak ($) Partial peak periods: Partial peak ($$) Peak periods: Peak ($$$) Note that the values used here must be the same as the values used in the Hourly Usage module.	Optional Choose from the following: Use the default values. Use this name for off-peak periods: Use this name for partial peak periods: Use this name for peak periods:

Image Number

Configuration Option

Input Value

Peak Time Price Ratio

The introduction statement of the TOU 101 module identifies how much more expensive electricity is during peak hours.

For example:

On weekdays, electricity is 1.5x more expensive from 2pm to 6pm.

By default, this value is automatically calculated by dividing the peak price by .off-peak price, based on the rate plan details provided .

Required

Choose one of the following:

Use the default calculation.

Use this peak time price ratio:

Peak Time Hours

The introduction statement of the TOU 101 module identifies the hours included in peak time pricing.

For example:

On weekdays, electricity is 1.5x more expensive from 2pm to 6pm.

Note that this value, and the Peak Time Hours value in the Hourly Usage module must be the same.

Required

Specify the peak hours:

Specify partial peak hours (if needed):

Bar Chart Colors

Colors in the bar graph for Off-peak, Partial peak, and Peak can match the utility’s color palette, if desired.

The colors shown are the default colors. Research has shown that using a bright color to identify the peak periods is the most successful. Attention to contrast and accessibility guidelines should be considered if changing the default colors.

Note that the colors used here must be the same as the colors used in the Hourly Usage module.

Optional

Choose one of the following:

Use the default colors.

Work with your Delivery Team to specify other colors.

Peak Time Names

You can designate the name of peak and off-peak ranges on the bar chart. Default values include:

Off-peak periods: Off-peak ($)
Partial peak periods: Partial peak ($$)
Peak periods: Peak ($$$)

Note that the values used here must be the same as the values used in the Hourly Usage module.

Optional

Choose from the following:

Use the default values.

Use this name for off-peak periods:

Use this name for partial peak periods:

Use this name for peak periods:

To see how this module fits into the overall user experience, see Design and Configuration: Time of Use Coach Emails.

User Experience Variations

This section discusses the user experience variations in the TOU 101 module.

Peak Hours Insight Statement

The Peak Hours insight statement varies based on the customer's rate plan and the type of days displayed in the timeline. The following table shows the insight statement variations for different scenarios:

Peak Hour Scenario	User Experience Example
Weekdays with a single peak period for plans with differing rates on weekdays and weekends.	On weekdays, electricity is 1.5x more expensive from 2pm to 6pm.
Weekdays with multiple peak periods for plans with differing rates on weekdays and weekends.	On weekdays, electricity is 1.5x more expensive from 9am to 12pm and 4pm to 9pm.
Weekend days with a single peak period for plans with differing rates on weekdays and weekends.	On weekends, electricity is 1.5x more expensive from 4pm to 9pm.
Weekend days with multiple peak periods for plans with differing rates on weekdays and weekends.	On weekdays, electricity is 1.5x more expensive from 9am to 12pm and 4pm to 9pm.
Any day for plans with a single peak period, and a pricing scheme that is the same on weekdays and weekends.	Electricity is 1.5x more expensive from 4pm to 9pm.
Any day for plans with multiple peak periods, and a pricing scheme that is the same on weekdays and weekends.	Electricity is 1.5x more expensive from 9am to 12pm and 4pm to 9pm.

Multiple Peak Periods

For utility customers with rate plans that include multiple peak periods, the timeline shows all peak periods using the same color.

Peak and Partial-Peak Periods

For utility customers with rate plans that include both peak and partial-peak periods, the timeline shows both periods using two different colors.

Weekday and Weekend Breakdowns with Different Pricing

If a customer’s rate plan has different weekday and weekend pricing breakdowns, then the TOU Coach Hourly Usage and TOU 101 modules must be separated so that weekdays are discussed ﬁrst (with the accompanying TOU Coach Hourly Usage graph) and the weekend modules appear next.

Note that the insight statement above the timeline changes to reflect weekday and weekend usage, and includes the expense ratio for the specified day.

Weekday and Weekend Breakdowns with Same Pricing

If a customer’s rate plan has peak hours on the weekdays and weekends, but the pricing scheme is the same during both the weekdays and weekends, then the TOU 101 module should only appear once, followed by two separate TOU Hourly Usage modules that show the usage patterns of weekdays and weekends separately. Weekday and weekend usage patterns are typically consistently different, and separating them gives the customer an opportunity to better envision their behaviors.
