Sensus Web Service Authentication

MultiSpeak 4.1 Release

Inbound Requests

Include “/multispeak41” prior to the inbound web service name in the URL to signal the application that it should locate credentials in the MultiSpeakMsgHeader SOAP Header element.

Ex: https://144.25.13.161:8086/tnt22a/test03/ccs/soap/api/iws/multispeak41/D6-CB_Server

Outbound Requests

On the Context tab of the Message Sender portal, add a Sender Security Type row with a value of “MS_V41R” (as shown in the following screen capture). The values of the HTTP Login User and HTTP Login Password will be added as attributes of MultiSpeakMsgHeader in the outgoing SOAP header.

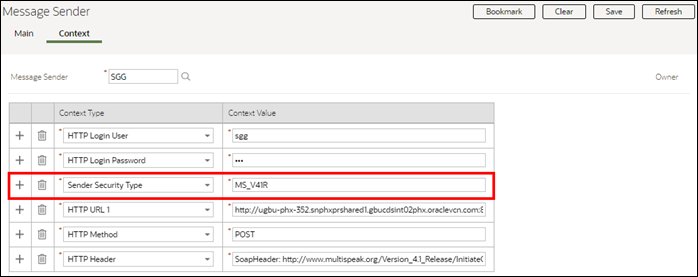

Screen capture showing the Sender Security Type parameter set to "MS_V41R" on the Context tab of the Message Sender portal.

Parent topic: Web Service Authentication
