Network Monitor
To examine the connections between VMDs or VCCs in your configuration, click the Network Monitor tab at the bottom of the Node Table.

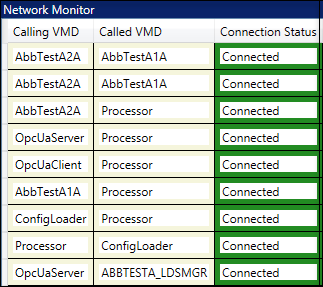

The Network Monitor shows the status of each VMD connection.
The Network Monitor panel shows the MMS association statuses: Listening, Attempting, Connected, and Disabled.
- Listening means the device is waiting for an inbound connection.
- Attempting means that the device is attempting to make an outbound connection
- Connected means that the two devices are connected.
- Disabled means that the device's ability to connect has been turned off.

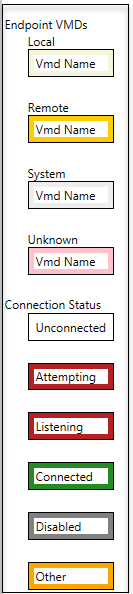

To display a legend of the different types of endpoint VMDs and Connection Statuses:

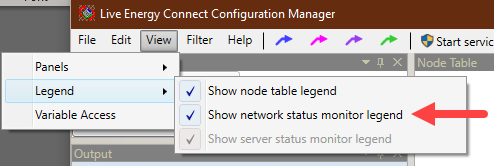

- Click View and then Legend from the command bar.
- Check Show network status monitor legend.
Note: VMDs in the given example are local and connected because the VMD names are outlined in light green and the connections are outlined in forest green as shown in the legend.
