Migrate Oracle Database 11g from Windows to Oracle Database 19c on Linux

Introduction

This tutorial shows how to migrate an Oracle Database 11g database from Windows to Oracle Database 19c on Linux by using Oracle Recovery Manager (RMAN) backup and restore, a physical standby process, database upgrade, and non-CDB to PDB plug-in.

The process reduces application downtime by restoring the database on the target system before cutover, manually shipping archive logs, applying the remaining archive logs during the cutover window, upgrading the database, and plugging it into a container database (CDB).

Environment Details

Environment details

Objectives

Migrate Oracle Database 11g from Windows to Oracle Database 19c on Linux by using a physical standby, upgrade, and plug-in process with minimal application downtime.

Prerequisites

The source database must be in ARCHIVELOG mode.
Force logging must be enabled on the source database.
Provision OCI environment like a compartment, virtual cloud network (VCN), subnet, and so on.
Provision a target multi-tenant database running on 19c.

Task 1: Backup the source database (Windows) with ‘NFS’ storage.

RMAN backup script for Windows

Task 2: Start database `NOMOUNT` in stage DB and start restoring the database in OCI.

Start database in nomount mode.

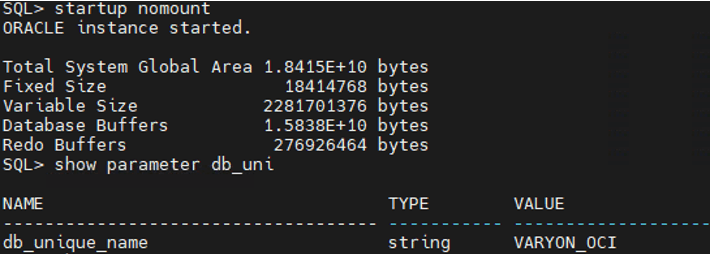

Startup nomount database with spfile

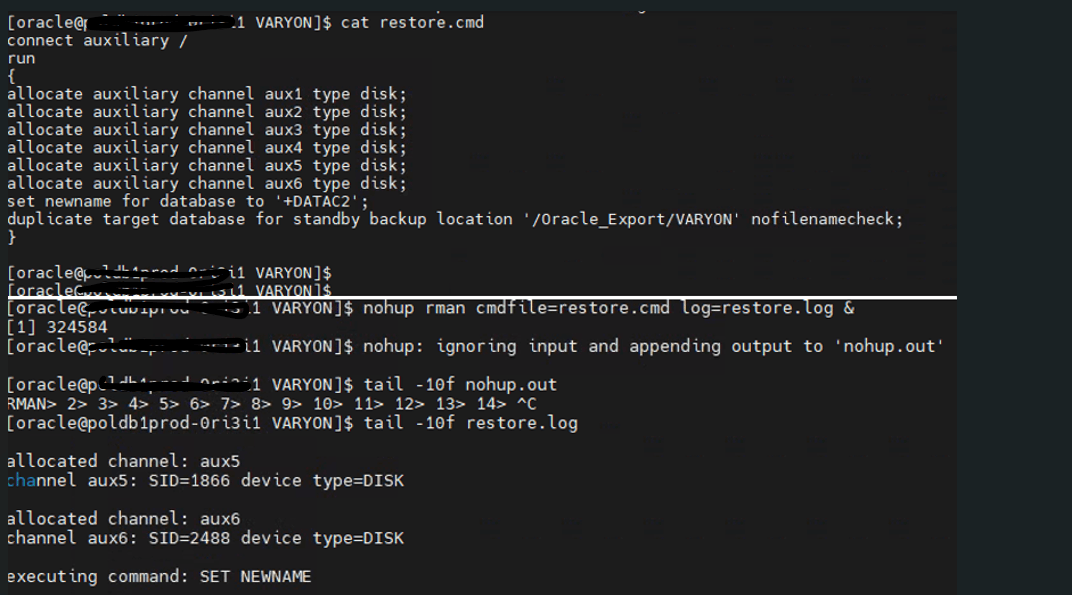

To run Database Restore script in background mode.

Database Start Restore output

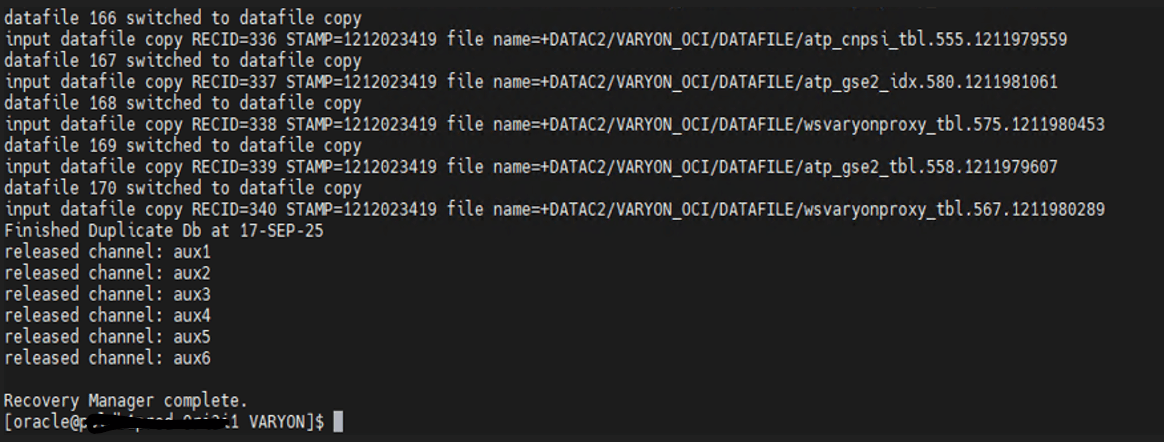

Database restore output

Task 3: Once the restore is complete, copy all archive logs from the source database to the `NFS` location until the cutover.

MRP should be enabled on the target standby database.
Catalog archive directory path and applying logs on the target database.

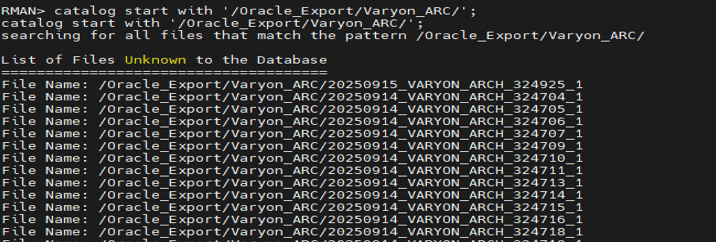

catalog archive directory path

MRP will pick these archive logs and start recovery after cataloging archive logs.

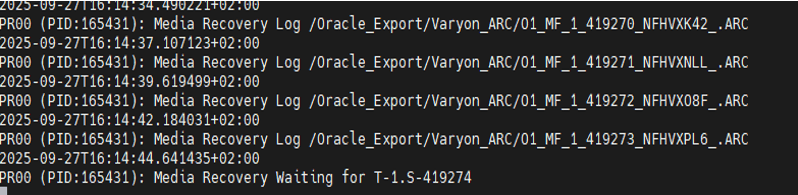

MRP process applying archive logs to standby database

Task 4: Stop recovery, activate the standby database, and open the database in `OPEN UPGRADE` mode in the target DB system.

To stop the MRP Process and activate standby database in source database.

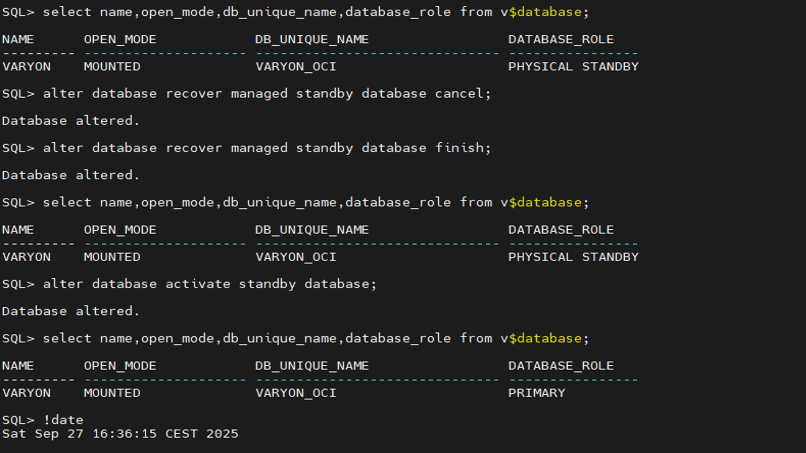

Stop `MRP` process and activate standby database

To open database with upgrade mode.

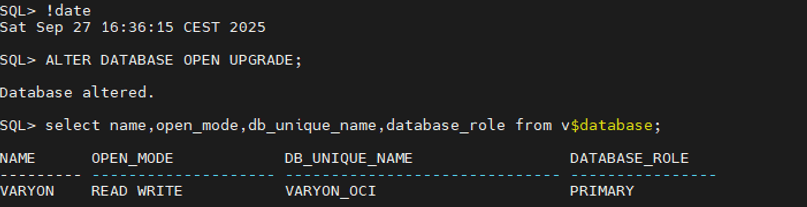

DB Open Upgrade Mode

Task 5: Upgrade the stage database to the 19c version within the target database system.

To run the upgrade script on the Source DB system.

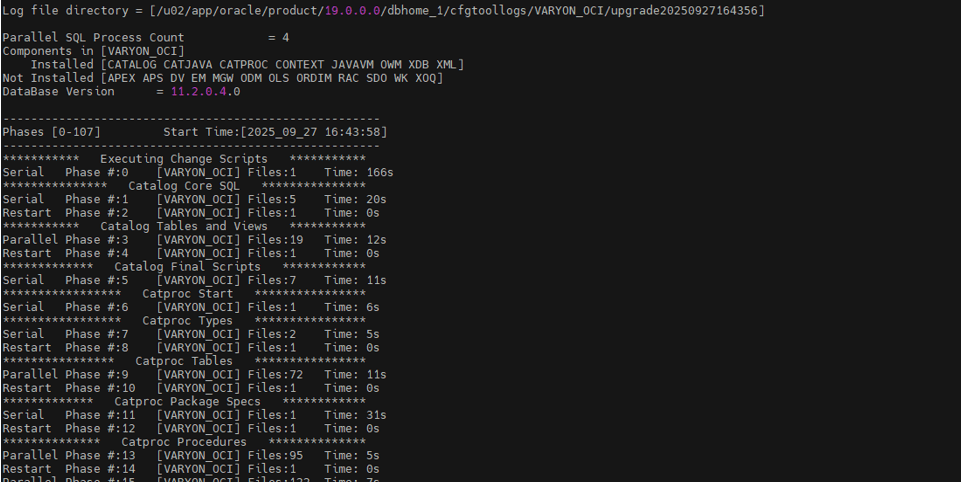

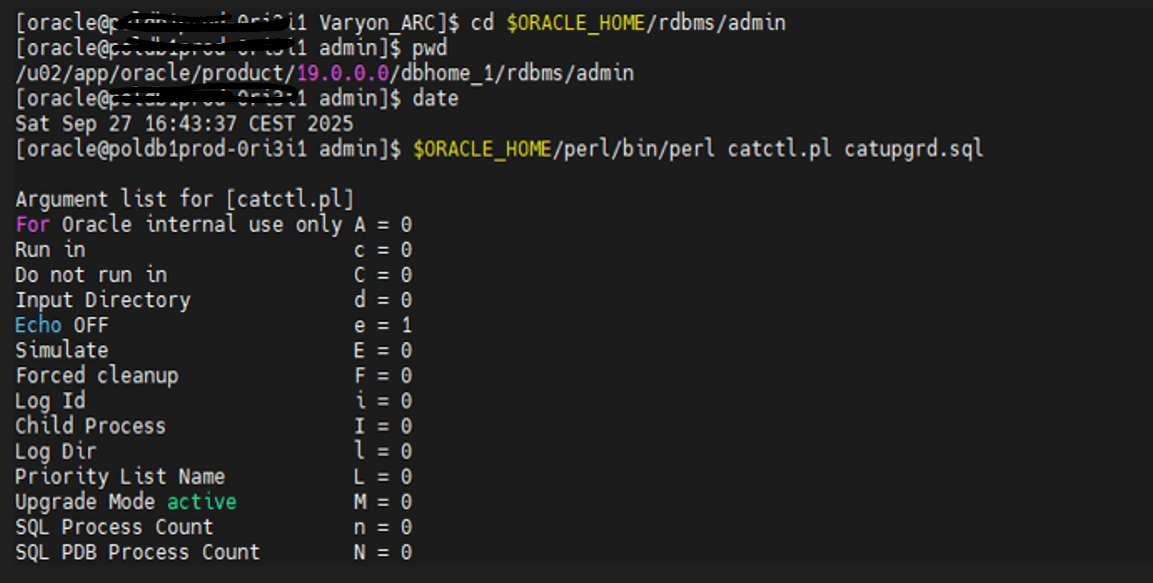

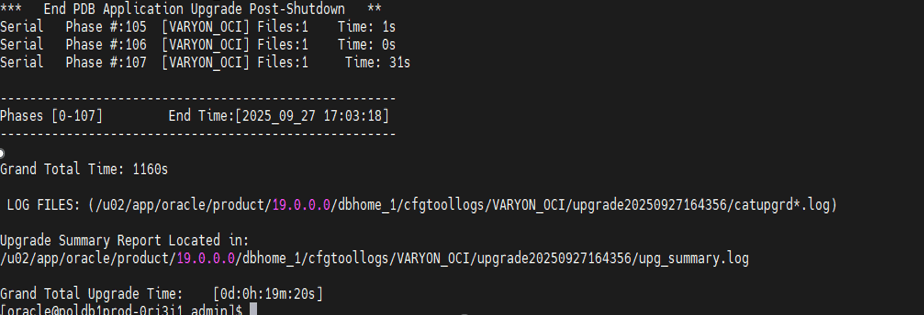

Target database Upgrade

Task 6: Start the database, run the post-upgrade fixup script, and run the `UTLRP` command to compile invalid objects.

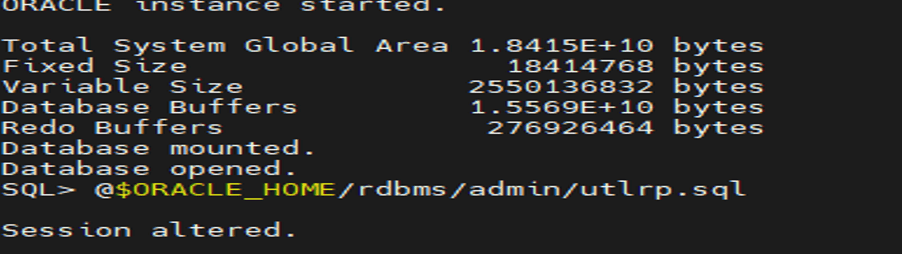

start db target in system

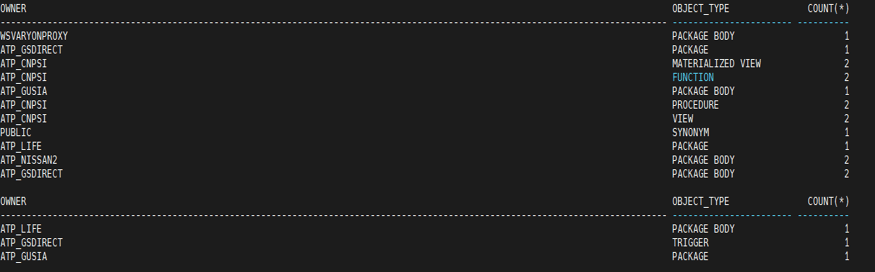

invalid object comparison

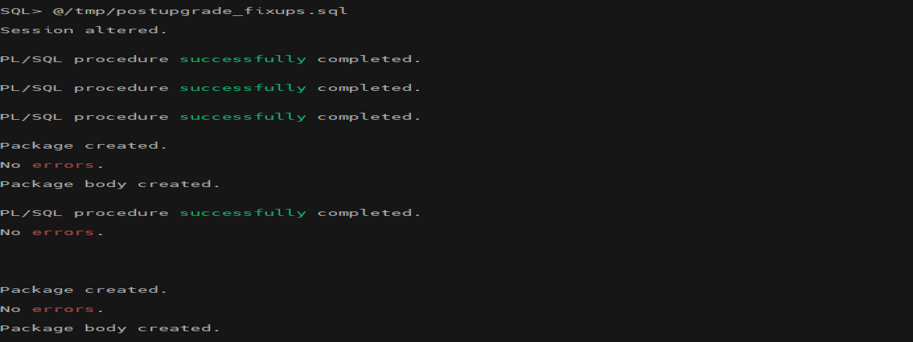

To run the post-upgrade fixup script in the target DB system.

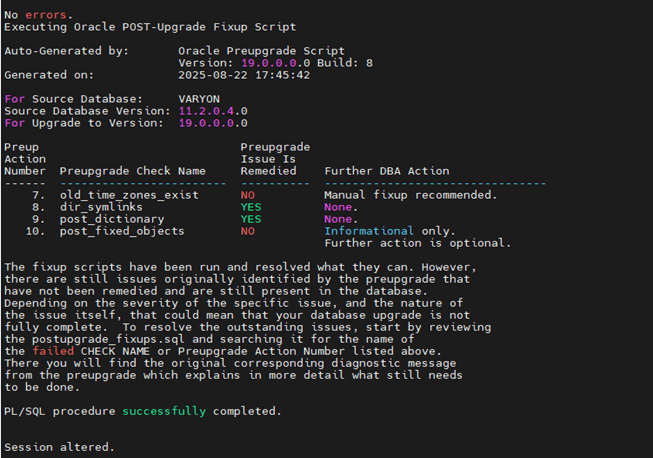

postupgrade fixup script

Task 7: Upgrade the time zone on the stage database.

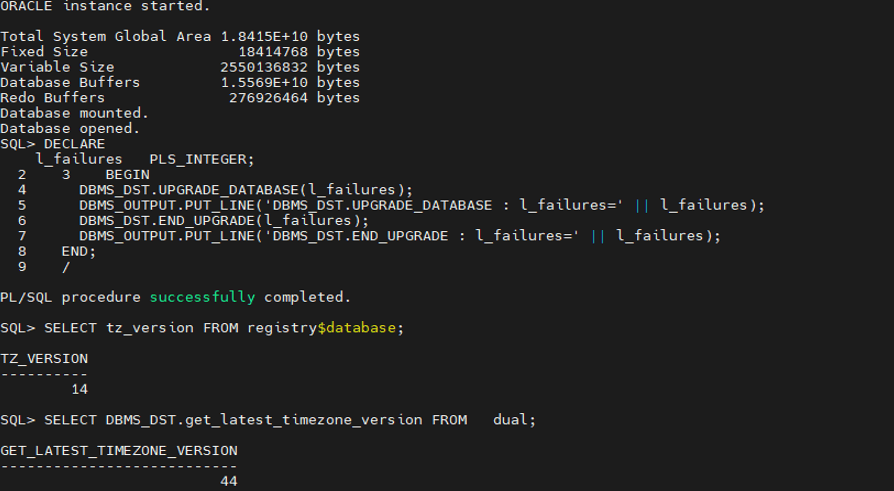

start DB in upgrade mode.

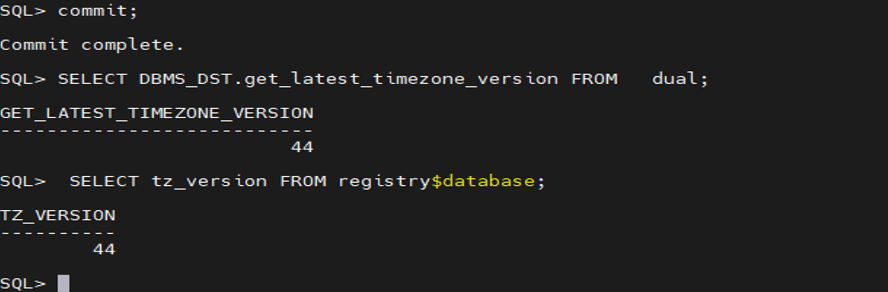

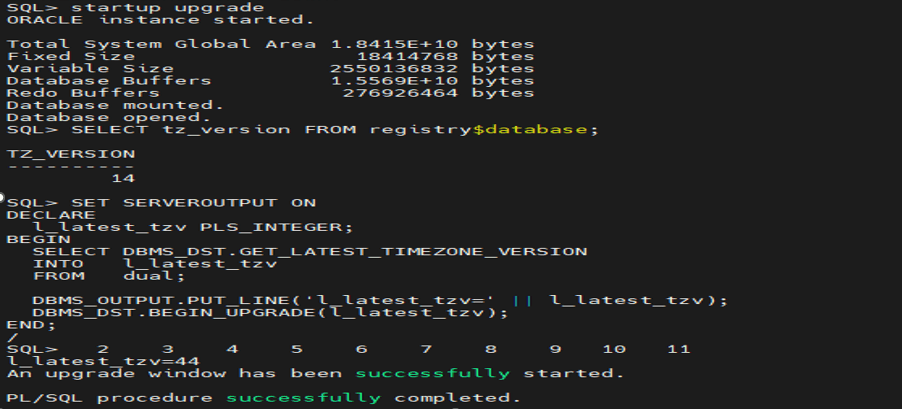

Timezone upgrade

Upgrade the time zone in the stage database before plugging the non-CDB into the CDB.

Task 8: Steps for using the `PDB` Plug-in.

Start the database in read-only mode and create an XML file for PDB plugging.

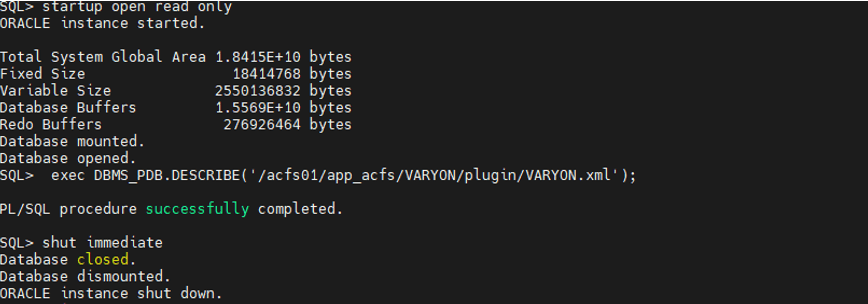

Startup read-only database

To check compatibility on the target CDB database before the plug-in. It should show yes as a result.

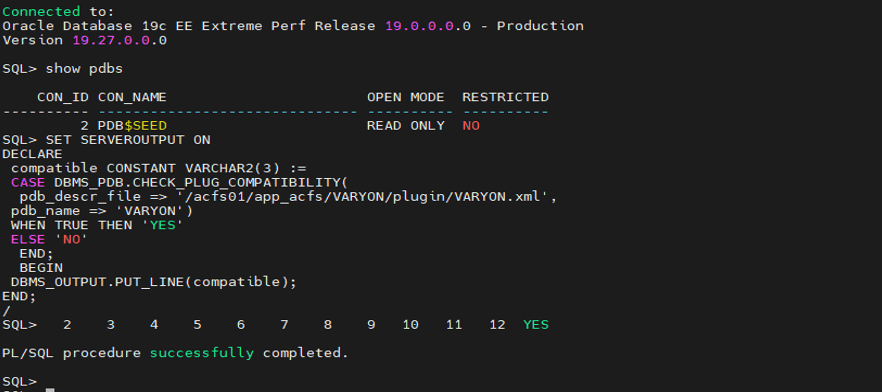

compatibility target cdb database

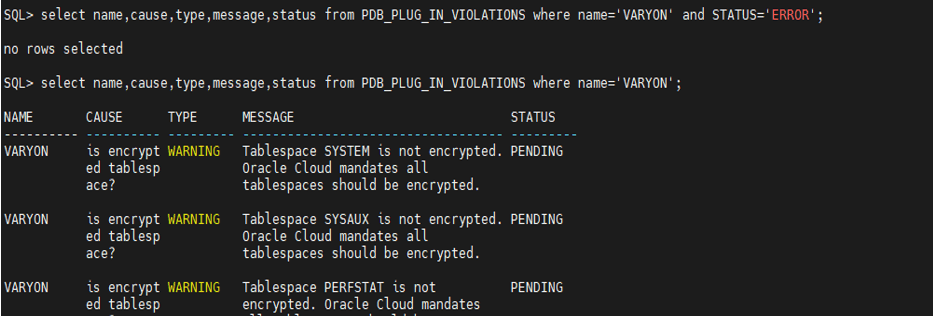

Check if there are any errors for PDB plugin violations. We can ignore warnings for tablespace encryptions.

PDB plugin violations

To run a script to create a pluggable database on the target CDB and run in background mode.

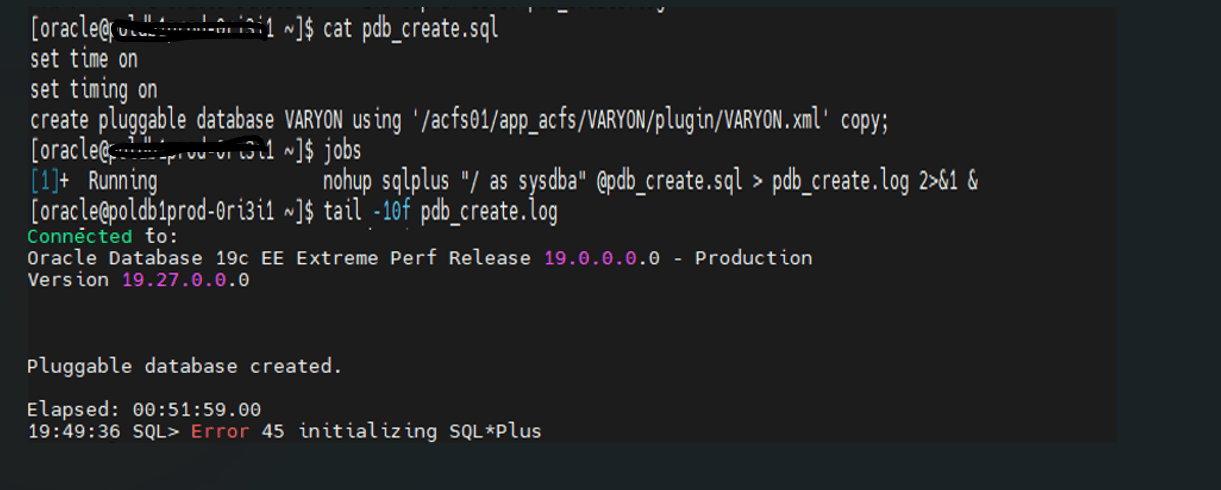

create pluggable database

To run the noncdb_to_pdb.sql script after the PDB plug-in in the target DB system.

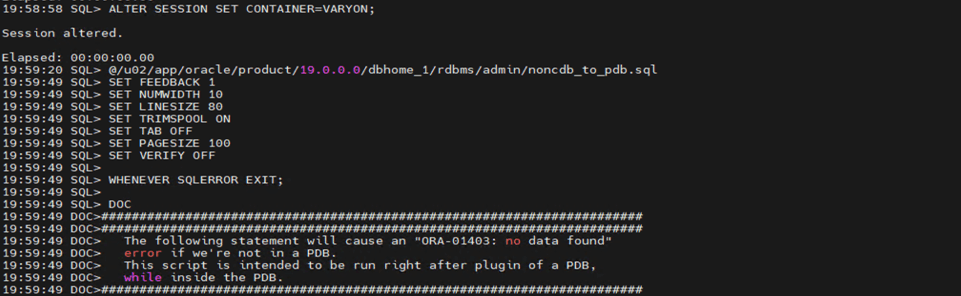

noncdb to pdb

To open the PDB database and set the save state for all instances.

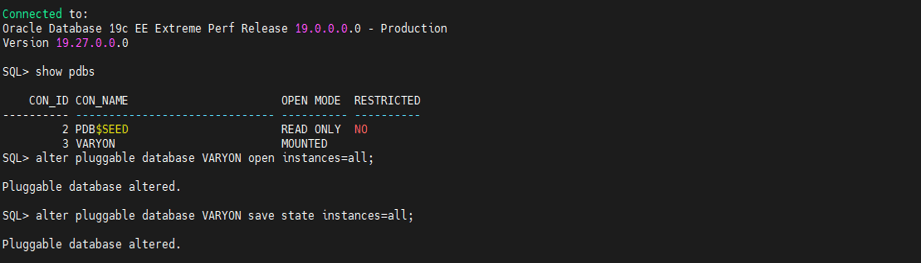

open pdb save state

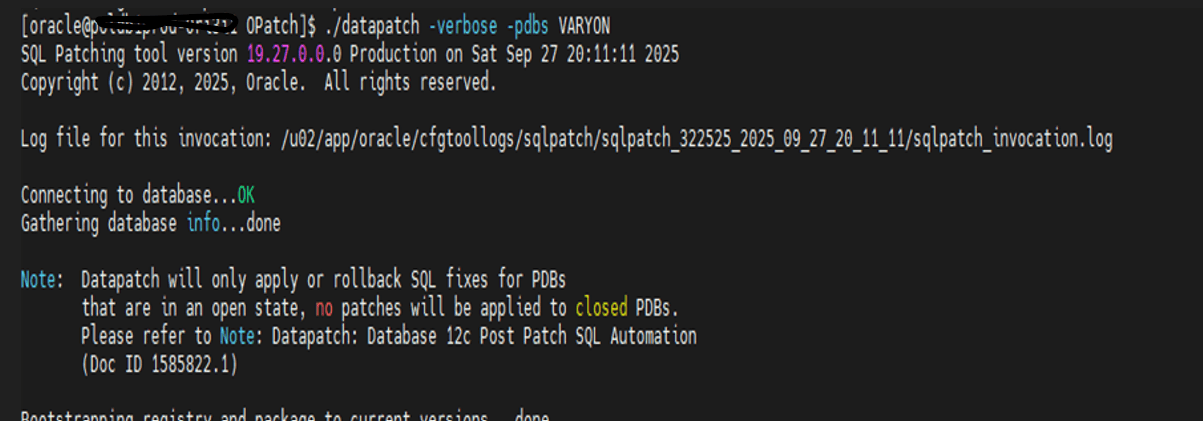

To run datapatch to apply current patches on the PDB database in the target DB system.

datapatch in pdb

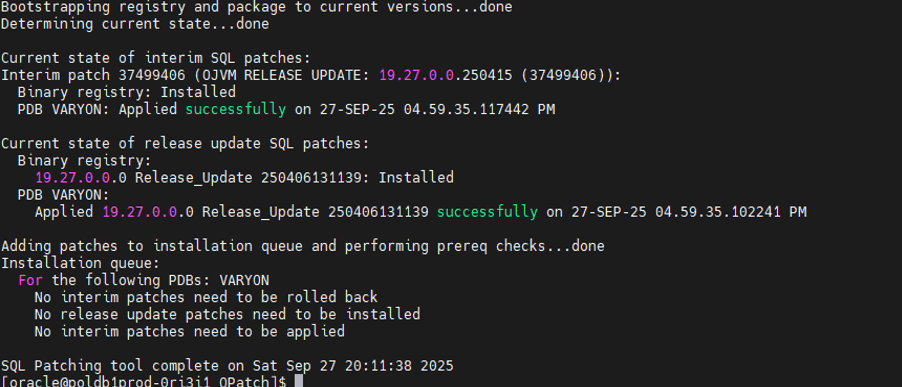

datapatch in pdb 1

Task 9: Encryption key for `PDB` database.

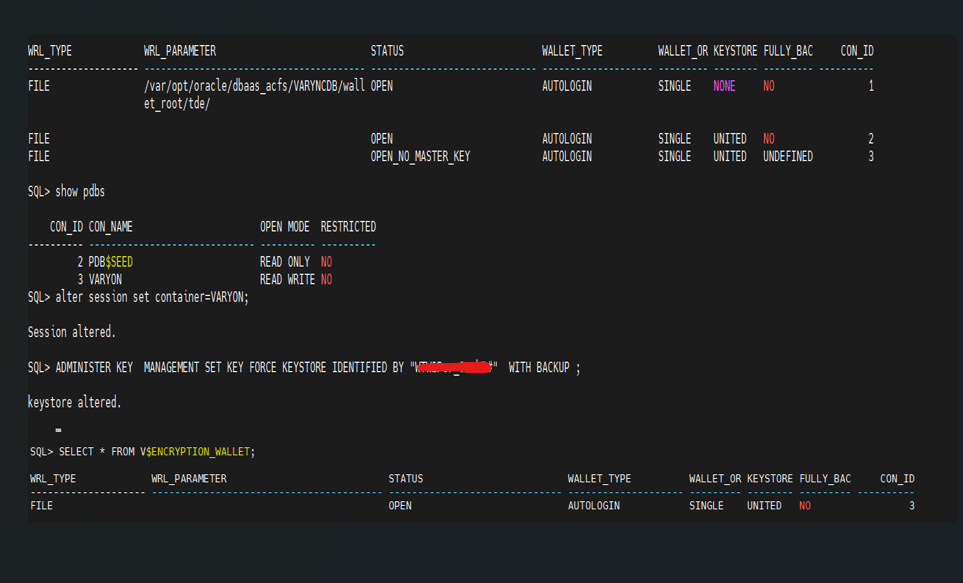

Set the encryption key for the PDB database.

Encryption key in PDB

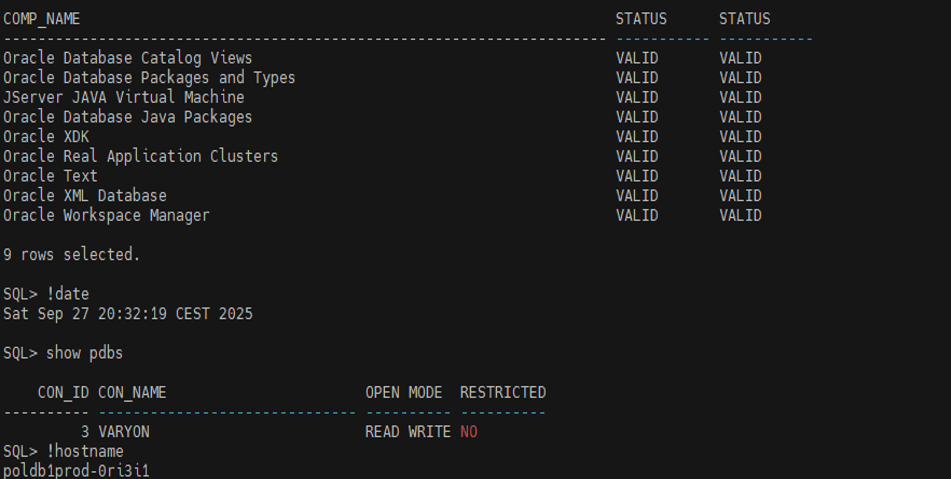

Task 10: Ensure that the components of the database registry are validated for post-checks.

To validate DB components

Database registry components

Conclusion

The significant takeaway from this method is, using cross-platform database RMAN backup and restore, you can easily perform DB migration between Windows to Linux with a multi-tenant DB system. For minimum downtime migration requirements, this method helps like Data Guard set up and upgrade the database and plugin to a container database.

Acknowledgments

Author - Yogesha D K (Senior Cloud Engineer, Customer Success Services)
