About the Presentation Catalog

The Presentation Catalog stores the content that users create.

This content includes folders, shortcuts, Oracle Analytics Server objects (such as analyses, filters, prompts, and dashboards), and Publisher objects (such as reports and templates).

Objects in the Catalog

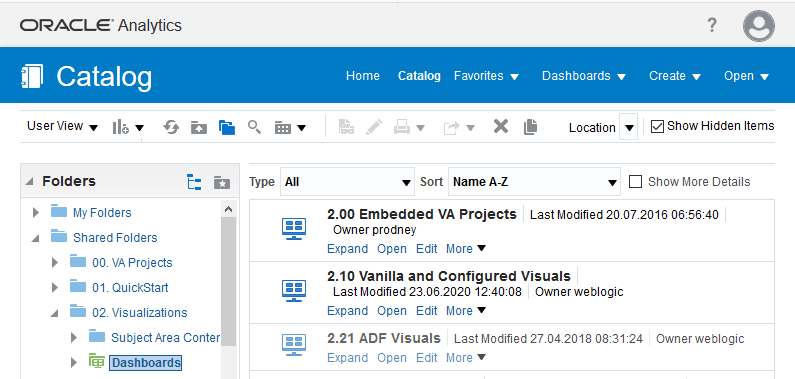

The figure below shows sample objects in the catalog, as seen in Presentation Services.


Description of cat_exp_ps.png follows
Description of the illustration cat_exp_ps.png

Guidelines for Object Names

The object name that's visible to users, such as Analysis 1, is referred to as the logical object name.

The following list provides guidelines for object names:

  • Avoid the special characters listed in About Naming Restrictions for Catalog Objects.

  • The length of the logical object name must not exceed 256 Unicode characters.

  • The length of the logical path name for an object must not exceed 16000 Unicode characters.

  • The number of directory segments in a logical path name for an object must be not exceed 255 segments.

    For example, a directory with a name such as /n1/n2/n3/n4/…./n253/n254/n255 is acceptable, while a name such as /n1/n2/n3/n4/…./n254/n255/n256 is unacceptable.

  • When you pass the path name of an object using SOAP, you must escape the following characters:

    Forward slash (/)
Backward slash (\)
Tilde (~)
Asterisk (*)
Question mark (?)

    The following logical path names are all valid:

    /shared/test/Hello World
/shared/test/Profit \/ Loss
/shared/test/% Sales \* $ Cost \~\~ $ "Expense"\?

    Use care when building a catalog path. It is very common to see code that assumes the forward slash (/) is always a path separator. Always verify your path code with an object name such as "Profit / Loss".

  • When you pass a catalog search filter using SOAP, you must escape the following characters:

    Forward slash (/)
Backward slash (\)
Tilde (~)
Asterisk (*)
Question mark (?)
Caret (^)
Dollar sign (?)

    The following search filters are all valid:

    Hello World
Profit \/ Loss
% Sales \* \$ Cost \~\~ \$ "Expense"\?

About Naming Restrictions for Catalog Objects

You can't use special characters when naming or renaming catalog objects, such as workbooks, dashboards, and analyses.

When you name or rename a catalog object, don't use these special characters in the catalog object name:
Name Special Character
Ampersand &
Asterisk *
Caret ^
Colon :
Comma ,
Dollar sign $
Double backslash \\
Exclamation mark !
Forward slash /
Greater than sign >
Hash #
Less than sign <
Percent sign %
Plus +
Question mark ?
Quotation mark "
Single quotation mark '
Tilda ~
Vertical bar |
