Tips on Editing a Visualization
These tips can help you become more productive when you work with visualizations.

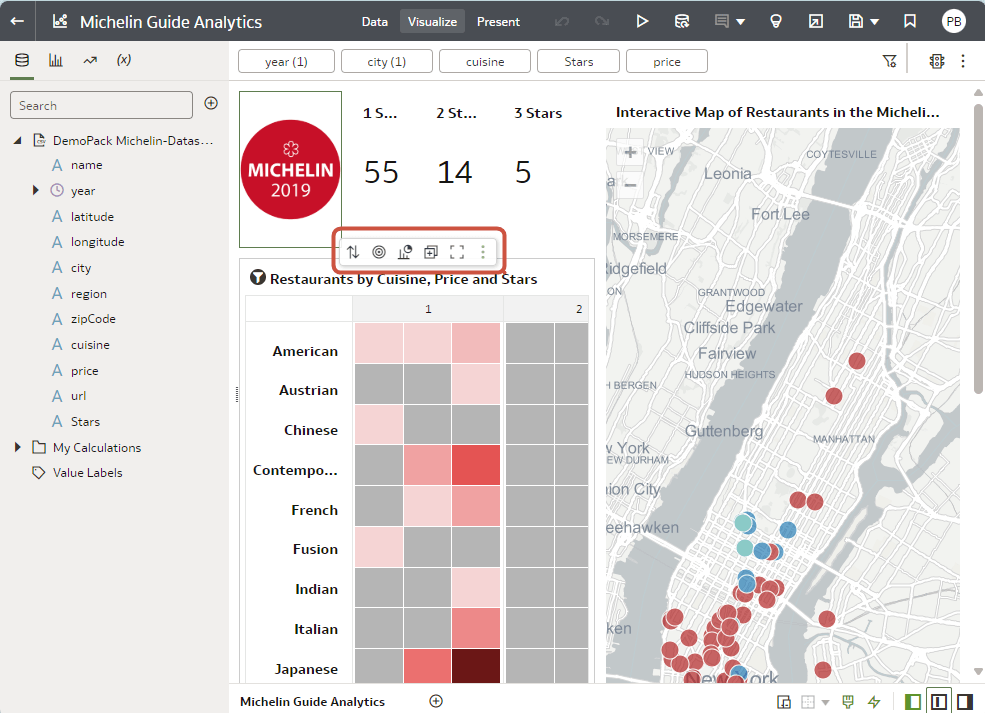

Access visualization options
The visualization toolbars provide quick access to conditional formatting, sorting
the data, plus other options, and a menu with additional
options.
Description of the illustration viz_options.png

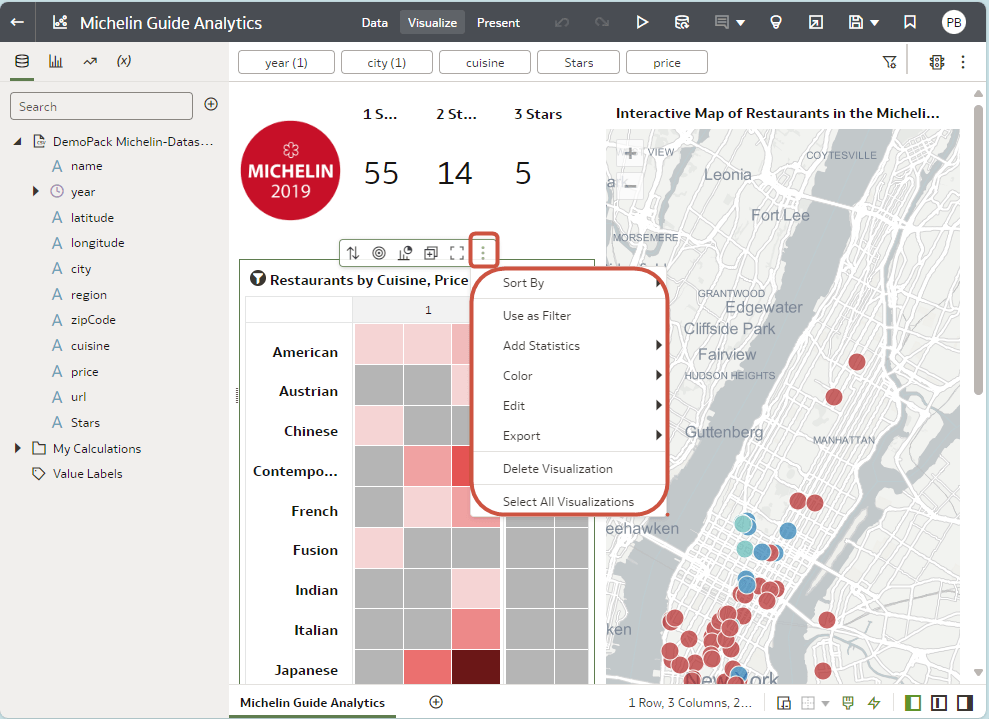

Access the visualization menu
Hover over a visualization, and click Menu to display a more
comprehensive visualization menu including options such as Sort By,
Use as Filter, Add Statistics, Color, Edit, Export, or Delete
Visualization.
Description of the illustration viz_menu.png

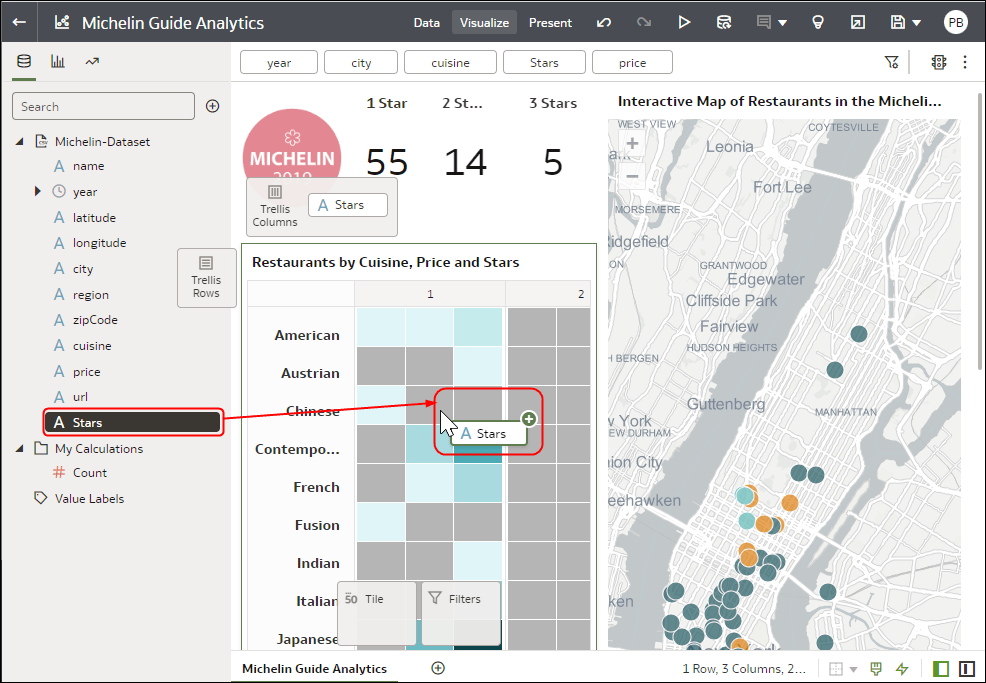

Add a field to an existing visualization
Drag the item from the Data Panel over the visualization until the cursor displays a green cross, indicating a valid drop zone.
Description of the illustration viz_drag1.png
Add a field to a new visualization
Drag the item from the Data Panel over the visualization until the cursor displays a green bar, indicating a valid drop zone.
Description of the illustration guid-a1728b5c-6804-4e31-bbc7-f6ac9ccff685.png

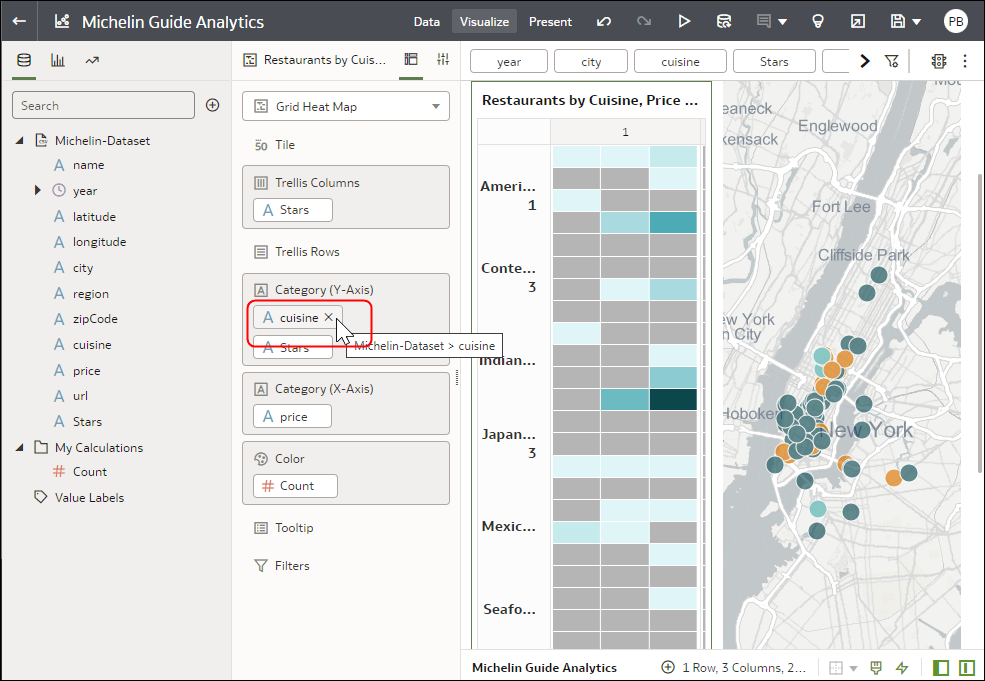

Delete a field from a visualization
Display the Grammar Panel, hover over the field, and click X.
Description of the illustration viz_field_del.png
