Work with User Assistance

The Oracle JET user assistance framework includes support for user assistance on the editable components in the form of help, hints, and messaging that you can customize as needed for your app. Editable components include oj-checkboxset, oj-color*, oj-combobox*, oj-input*, oj-radioset, oj-select*, oj-slider, oj-switch, and oj-text-area.

The oj-input* mentioned above refers to the family of input components such as oj-input-date-time, oj-input-text, and oj-input-password, among others. oj-color*, oj-combobox*, and oj-select* each represent two components.

To add tooltips to plain text or other non-editable components, use oj-popup. See the Tooltip example in the Oracle JET Cookbook at Popups.

Understand Oracle JET's Messaging APIs on Editable Components

Oracle JET provides a messaging API to support messaging on Oracle JET editable components.

Editable components include the following:

oj-checkboxset
oj-color-palette
oj-color-spectrum
oj-combobox-many
oj-combobox-one
oj-input-date
oj-input-date-time
oj-input-number
oj-input-password
oj-input-text
oj-input-time
oj-radioset
oj-select-many
oj-select-one
oj-slider
oj-switch
oj-text-area

The Oracle JET Cookbook also includes descriptions and examples for working with each component at: Form Controls.

About Oracle JET Editable Component Messaging Attributes

The following attributes impact messaging on editable elements.

Element Attribute	Description
`converter`	Default `converter` hint displayed as placeholder text when a placeholder attribute is not already set.
`display-options`	JSON object literal that specifies the location where the element should display auxiliary content such as `messages` , `converterHint` , `validatorHint` , and `helpInstruction` in relation to itself. Refer to the element's API documentation for details.
`help`	Help message displayed on an `oj-label` element when the user hovers over the Help icon. No formatted text is available for the message. The `oj-label` has two exclusive attributes, `help.definition` and `help.source` . The `help.definition` attribute's value appears and the attribute's value is read by a screen reader when you hover with a mouse, when you tab into the Help icon, or when you press and hold on a device. The default value is `null` . The `help.source` attribute’s value is a link, which is opened when you click with a mouse or tap on a device. The default value is `null` .
`help.instruction`	Displays text in a note window that displays when the user sets focus on the input field. You can format the text string using standard HTML formatting tags.
`messages-custom`	List of messages that the app provides when it encounters business validation errors or messages of other severity type.
`placeholder`	The placeholder text to set on the element.
`translations`	Object containing all translated resources relevant to the component and all its superclasses. Use sub-properties to modify the component's translated resources.
`validators`	List of validators used by element when performing validation. Validator hints are displayed in a note window by default.

See the Attributes section of the element's API documentation in API Reference for Oracle® JavaScript Extension Toolkit (Oracle JET) for additional details about its messaging properties. Select the component you're interested in viewing from the API list.

About Oracle JET Component Messaging Methods

Editable value components support the following method for messaging purposes.

Component Event	Description
`showMessages`	Takes all deferred messages and shows them. If there were no deferred messages this method simply returns. When the user sets focus on the component, the deferred messages will display inline.

See the Methods section of the component's API documentation in the API Reference for Oracle® JavaScript Extension Toolkit (Oracle JET) for details on how to call the method, its parameters, and return value. Select the component you're interested in viewing from the list.

Understand How Validation and Messaging Works in Oracle JET Editable Components

The actions performed on an Oracle JET component, the properties set on it, and the methods called on it, all instruct the component on how it should validate the value and what content it should show as part of its messaging.

Editable components always perform either normal or deferred validation in some situations. In other situations, the editable component decides to perform either normal or deferred validation based on the component's state. Understanding the normal and deferred validation process may be helpful for determining what message properties to set on your components.

Normal Validation: During normal validation, the component clears all messages properties (messages-custom), parses the UI value, and performs validation. Validation errors are reported to the user immediately. If there are no validation errors, the value attribute is updated, and the value is formatted and pushed to the display.

The editable component always runs normal validation when:
- The user interacts with an editable component and changes its value in the UI.
- The app calls validate() on the component.

  When the app changes certain properties, the component might decide to run normal validation depending on its current state. See Mixed Validation below for additional details.
Deferred Validation: Uses the required validator to validate the component's value. The required validator is the only validator that participates in deferred validation. During deferred validation all messages properties are cleared unless specified otherwise. If the value fails deferred validation, validation errors are not shown to the user immediately.

The editable component always runs deferred validation when:
- A component is created. None of the messages properties are cleared.
- The app calls the reset() method on the component.
- The app changes the value property on the component programmatically.

  When the app changes certain properties programmatically, the component might decide to run deferred validation depending on its current state. See Mixed Validation below for additional details.
Mixed Validation: Runs when the following properties are changed or methods are called by the app. Either deferred or normal validation is run based on the component's current state, and any validation errors are either hidden or shown to the user. Mixed validation runs when:
- converter property changes
- disabled property changes
- readOnly properties change
- required property changes
- validators property changes
- refresh() method is called

The Oracle JET Cookbook includes additional examples that show normal and deferred validation at Validators (Component). For additional information about the validators and converters included with Oracle JET, see Validate and Convert Input.

Understand How an Oracle JET Editable Component Performs Normal Validation

An Oracle JET editable component runs normal validation when the user changes the value in the UI or when the app calls the component's validate() method. In both cases, error messages are displayed immediately.

About the Normal Validation Process When User Changes Value of an Editable Component

When a user changes an editable value:

All messages-custom messages are cleared. An onMessagesCustomChanged event is triggered if applicable and if the change in value is obvious.
If a converter is set on the component, the UI value is parsed. If there is a parse error, then processing jumps to step 5.
If one or more validators are set on the component:
1. The parsed (converted) value is validated in sequence using the specified validators, with the implicit required validator being the first to run if present. The value that is passed to the implicit required validator is trimmed of white space.
2. If the validator throws an error, the error is remembered, and the next validator runs if it exists.

  After all validators complete, if there are one or more errors, processing jumps to step 5.
If all validations pass:
1. The parsed value is written to the component's value attribute, and an onValueChanged event is triggered for the value attribute.
2. The new value is formatted for display using the converter again and displayed on the component.
If the component's value property happens to be bound to a Knockout observable, then the value is written to the observable as well.
If one or more errors occurred in an earlier step:
1. The component's value property remains unchanged.
2. Errors are displayed by default inline with the component. The user can also view the details of the error by setting focus on the component.
When the user fixes the error, the validation process begins again.

About the Normal Validation Process When Validate() is Called on Editable Component

The validate() method validates the component's current display value using the converter and all validators registered on the component and updates the value attribute if validation passes.

The method is only available on editable components where it makes sense, for example, oj-input-number. For details about the validate() method, see validate().

Understand How an Oracle JET Editable Component Performs Deferred Validation

An Oracle JET editable component runs deferred validation when the component is created, when its value or required property is changed programmatically, or when the component's reset() method is called. This section provides additional detail about the deferred validation process when an Oracle JET editable component is created and when the value property is changed programmatically.

You can also find additional detail in the API Reference for Oracle® JavaScript Extension Toolkit (Oracle JET). Select the component you’re interested in from the navigation list.

About the Deferred Validation Process When an Oracle JET Editable Component is Created

When an editable element is created, as one of the last steps, it runs deferred validation on the component's initialized value.

The required validator is run, and a validation error raised if the value is empty or null.
If a validation error is raised, the component updates the messaging framework. No messaging themes are applied on the component nor does it show the error message in the note window because the validation error message is deferred.

Page authors can call showMessages() at any time to reveal deferred messages.

About the Deferred Validation Process When value Property is Changed Programmatically

An Oracle JET editable element’s value property can change programmatically if:

The page has code that changes the element's value attribute, or
The page author refreshes the ViewModel observable with a new server value.

In both cases, the element will update itself to show the new value as follows:

All messages properties are cleared on the editable element and onMessagesCustomChanged events triggered if applicable.
An onValueChanged event is triggered for the value attribute if applicable.
If a converter is set on the element, the value attribute is retrieved and formatted before it's displayed. If there is a format error, then processing jumps to step 5. Otherwise the formatted value is displayed on the element.
Deferred validators are run on the new value. Any validation errors raised are communicated to the messaging framework, but the errors themselves are not shown to the user.
If there was a formatting error, the validation error message is processed and the component's messages-custom attribute updated. Formatting errors are shown right away.

Page authors should ensure that the value you set is the expected type as defined by the component's API and that the value can be formatted without any errors for display.

Use Oracle JET Messaging

Use the Oracle JET messaging framework to notify an Oracle JET app of a component's messages and validity as well as notify an Oracle JET component of a business validation failure.

Notify an Oracle JET Editable Component of Business Validation Errors

You can notify Oracle JET editable elements of business validation errors using the messages-custom attribute and the showMessages() method.

Use the messages-custom Attribute

Your app can use this attribute to notify Oracle JET components to show new or updated custom messages. These could be a result of business validation that originates in the viewModel layer or on the server. When this property is set, the message shows to the user immediately. The messages-custom attribute takes an Object that duck-types Message with detail, summary, and severity fields.

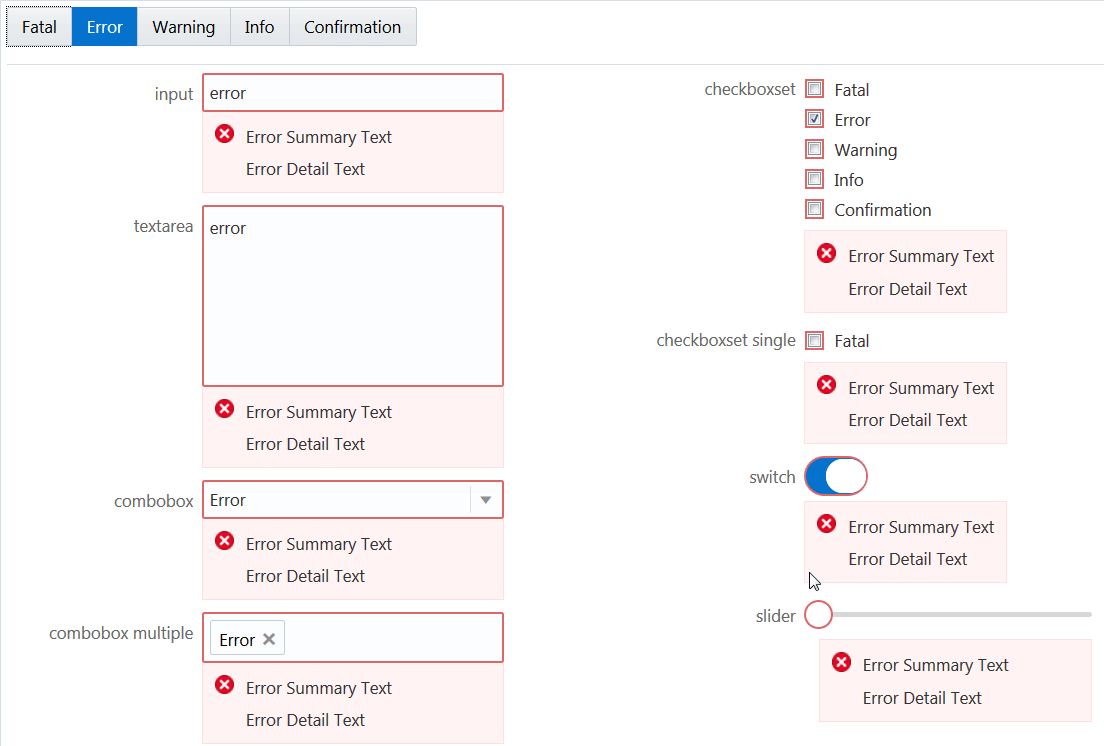

In this example, the severity type button is toggled and a message of the selected severity type is pushed onto the messages-custom array. The messages-custom attribute is set on every form control in this example. When the messages-custom attribute is changed, it is shown immediately. In this example, the user selected the Error severity type, and the associated messages are shown for the various text input and selection components.

Description of the illustration messagecustom.png

In this example an observable, appMessages, is declared and is bound to the messages-custom attribute for various elements. The following code describes how you can associate the observable with the messages-custom attribute for the oj-switch element.

<oj-switch id="switch" value="{{switchValue}}"
           messages-custom="{{appMessages}}">
</oj-switch>

In the corresponding JavaScript file, set the severity type and pass it to the observable, appMessages, to display associated messages.

if (summary && detail)
{
 msgs.push({summary: summary, detail: detail, severity: type});
}
self.appMessages(msgs);

In the example below, an instance of a cross-field custom validator is associated with the emailAddress observable, ensuring that its value is non-empty when the user chooses Email as their contact preference.

A form with fields for email and phone number, showing an error message for a required email address.

Description of the illustration messaging-cross-field-val.png

In the corresponding JavaScript file you must set the messages-custom attribute as emailAddressMessages.

<oj-input-text id="emailId" type="email"  name="emailId"
               placeholder="john_doe@example.com" value="{{emailAddress}}"
               messages-custom="{{emailAddressMessages}}"
               disabled="[[contactPref() !== 'email']]">
</oj-input-text>

For the complete example and code used to create the custom validator, see Cross-Field Validation. The demo uses a custom validator to validate an observable value against another. If validation fails the custom validator updates the messages-custom attribute.

Use the showMessages() Method on Editable Components

Use this method to instruct the component to show its deferred messages. When this method is called, the Oracle JET editable component automatically takes all deferred messages and shows them. This causes the component to display the deferred messages to the user.

For an example, see Show Deferred Messages.

Understand the oj-validation-group Component

The oj-validation-group component is an Oracle JET element that tracks the validity of a group of components and allows a page author to enforce validation best practices in Oracle JET apps.

Apps can use this component to:

Determine whether there are invalid components in the group that are currently showing messages using the invalidShown value of the valid property.
Determine whether there are invalid components that have deferred messages, such as messages that are currently hidden in the group, using the invalidHidden value of the valid property.
Set focus on the first enabled component in the group using the focusOn() method. They can also focus on the first enabled component showing invalid messages using focusOn("@firstInvalidShown").
Show deferred messages on all tracked components using the showMessages() method.

For details about the oj-validation-group component's attributes and methods, see oj-validation-group.

Track the Validity of a Group of Editable Components Using oj-validation-group

You can track the validity of a group of editable components by wrapping them in the oj-validation-group component.

The oj-validation-group searches all its descendants for a valid property, and adds them to the list of components it is tracking. When it adds a component, it does not check the tracked component’s children since the component’s valid state should already be based on the valid state of its children, if applicable.

When it finds all such components, it determines its own valid property value based on all the enabled (including hidden) components it tracks. Any disabled or readonly components are ignored in calculating the valid state.

The most invalid component's valid property value will be the oj-validation-group element’s valid property value. When any of the tracked component's valid value changes, oj-validation-group will be notified and will update its own valid value if it has changed.

The following code sample shows how an oj-validation-group can be used to track the overall validity of a typical form.

A portion of the script to create the view model for this example is shown below. This portion pertains to the oj-validation-group used above. The full script is contained in the Cookbook sample linked below.

<div id="validation-usecase">
  <oj-validation-group id="tracker" valid="{{groupValid}}">
    <oj-form-layout label-edge="inside" id="fl1">

      <oj-input-text id="firstname"  required
                     autocomplete="off"
                     label-hint="First Name"
                     name="firstname" >
      </oj-input-text>
      <oj-input-text id="lastname" required
                     value="{{lastName}}"
                     autocomplete="off"
                     label-hint="Last Name">
      </oj-input-text>
      <oj-input-text id="email"
                     on-value-changed="[[firstEmailValueChanged]]"
                     autocomplete="off"
                     label-hint="Email"
                     value="{{email}}" >
      </oj-input-text>
      <oj-input-text id="email2"
                     autocomplete="off"
                     label-hint="Confirm Email"
                     validators="[[emailMatchValidator]]"
                     value="{{email2}}">
      </oj-input-text>
      <oj-checkboxset id="colors" label-hint="Favorite Colors">
        <oj-option id="blueopt" value="blue">Blue</oj-option>
        <oj-option id="greenopt" value="green">Green</oj-option>
        <oj-option id="pinkopt" value="pink">Pink</oj-option>
      </oj-checkboxset>
    </oj-form-layout>
  </oj-validation-group>
  <hr/>
  <div class="oj-flex">
    <div class="oj-flex-item"> </div>
    <div class="oj-flex-item">
       <oj-button id="submitBtn"
                  on-oj-action="[[submit]]">Submit</oj-button>
    </div>
  </div>
  <hr/>
  <span>oj-validation-group valid property: </span>
  <span id="namevalid">
    <oj-bind-text value="[[groupValid]]"></oj-bind-text>
  </span>
</div>

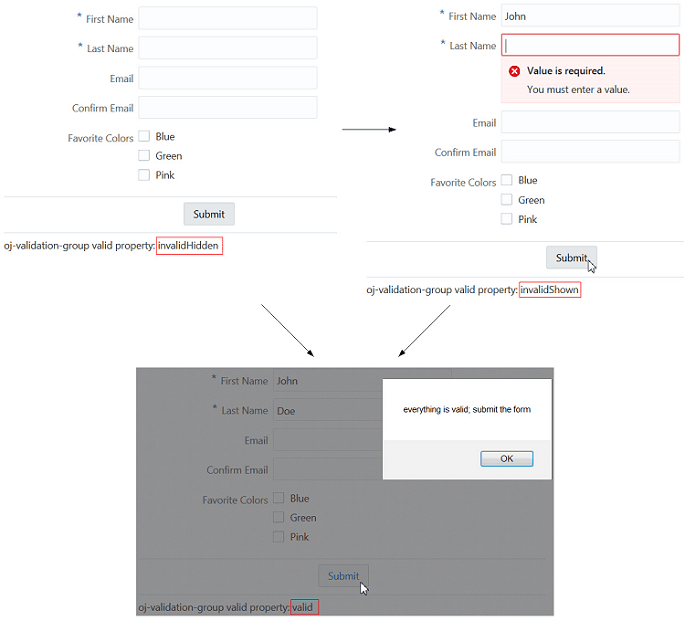

The figure below shows the output for the code sample. The status text at the bottom of each instance shows the valid state of the oj-validation-group, and by extension, the form.

Description of the illustration validationgroup.png

The Oracle JET Cookbook contains the complete example used in this section. See Form Fields.

For an example showing the oj-validation-group used for cross-field validation, see Cross-Field Validation.

Create Page and Section Level Messaging

Oracle JET includes a Message Banner (oj-message-banner) element. Use it to display brief, medium disruption, semi-permanent messages on your app page or on sections within a page that communicate relevant and useful information to your app users.

The Cookbook contains various examples that showcase usage of the oj-message-banner element and the API doc provides details about its attributes and methods. See Message Banner demo in the Oracle JET Cookbook and the Message Banner entry in the Oracle® JavaScript Extension Toolkit (JET) API Reference for Oracle JET.

Configure an Editable Component's oj-label Help Attribute

Configure an oj-label element's help attribute to add a Help icon that displays descriptive text, includes a clickable link to a URL for additional information, or displays both the help text and clickable link when the user hovers over it.

The help attribute includes two sub-properties that control the help definition text and help icon:

definition: Contains the help definition text that displays when the user does one of the following:
- hovers over the help icon
- tabs into the help icon with the keyboard
- presses and holds the help icon on a mobile device
source: Contains the URL to be used in the help icon's link

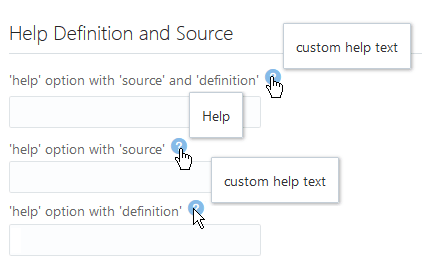

The following image shows three oj-label components configured to use the help attribute. The top component is configured with both a definition and source help sub-property, and the image shows the text and clickable pointer that displays when the user hovers over the help icon. In the middle image, the oj-label component includes a help icon that links to a URL when the user clicks it. In the bottom image, the oj-label displays custom help text when the user hovers over the label or help icon.

Description of the illustration messaging-help-option.png

Before you begin:

Familiarize yourself with the process of adding an Oracle JET element to your page. See Add an Oracle JET Component to Your Page.

To configure an oj-label element's help property:

Add the oj-label element to your page.

In the markup, add the help attribute and the definition or source sub-property.

The markup for the ojInputText components is shown below. Each ojInputText component uses the ojComponent binding to define the component and set the help sub-properties. In this example, the user will be directed to http://www.oracle.com after clicking Help.

<div id="form-container" class="oj-form">
  <h3 class="oj-header-border">Help Definition and Source</h3>
  <oj-label id="ltext10" for="text10" help.definition="custom help text"
    help.source="http://www.oracle.com">'help' property with 'source' and 'definition'</oj-label>
  <oj-input-text id="text10" name="text10" value="{{text}}"></oj-input-text>

  <oj-label id="ltext11" for="text11"
    help.source="http://www.oracle.com">'help' property with 'source'</oj-label>
  <oj-input-text id="text11" name="text11" value="{{text}}"></oj-input-text>

  <oj-label id="ltext12" for="text12"
    help.definition="custom help text">'help' property with 'definition'</oj-label>
  <oj-input-text id="text12" name="text12" value="{{text}}"></oj-input-text>
</div>

See the Oracle JET Cookbook at Help and Title for the complete example to configure the help property on the ojInputText component.

Configure an Editable Component's help.instruction Attribute

Configure an editable component's help text using the help.instruction attribute. This will display a note window with advisory text (often called a tooltip) when the input component has focus.

The following image shows two oj-input-text elements configured to display text when the user sets focus in the input field. In the first example, the help.instruction attribute is defined for the oj-input-text element without formatting. In the second example, the attribute value has HTML formatting added to the advisory text.

Help instruction input fields with corresponding text boxes and instructions to enter at least 3 alphanumeric characters.

Description of the illustration messaging-title-option.png

Before you begin:

Familiarize yourself with the process of adding an Oracle JET element to your page. See Add an Oracle JET Component to Your Page.

To configure an editable element's help.instruction attribute:

Add the editable element to your page.

In the markup, add the help.instruction attribute in the element tag.

The following code sample shows the markup for defining the three oj-input-text components.

<div id="form-container" class="oj-form">
  <h3 class="oj-header-border">Help Instruction</h3>
    <oj-label for="text20">input with 'help.instruction' attribute</oj-label>
    <oj-input-text id="text20" name="text20"  autocomplete="off" validators="[[validators]]"
        help.instruction="enter at least 3 alphanumeric characters" value="{{text}}"></oj-input-text>

    <oj-label for="text21">input with 'help.instruction' attribute with binding</oj-label>
    <oj-input-text id="text21" name="text21"  autocomplete="off" validators="[[validators]]"
        help.instruction="{{helpInstruction}}" value="{{text}}"></oj-input-text>

    <oj-label for="text22">input with formatted text in 'help.instruction' attribute</oj-label>
    <oj-input-text id="text22" name="text22"  autocomplete="off" validators="[[validators]]"
        help.instruction="<html>enter <span style='color:red'>at least 3 alphanumeric</span> characters</html>"
        value="{{text}}"></oj-input-text>
</div>

In your app script, bind the component's value to a Knockout observable.

In this example, each oj-input-text element's value attribute is defined as text which is set to a Knockout observable in the following script. The script also defines regular expression validators to ensure that the user enters at least three letters or numbers.

require(['knockout', 'ojs/ojbootstrap, 'ojs/ojknockout', 'ojs/ojinputtext', 'ojs/ojlabel'],
  function(ko, Bootstrap)
  {
    function MemberViewModel()
    {
      var self = this;
      self.text = ko.observable();

      self.validators = ko.computed(function()
        {
          return [{
             type: 'regExp',
             options: {
               pattern: '[a-zA-Z0-9]{3,}',
               messageDetail: 'You must enter at least 3 letters or numbers'}}];
        });
      self.helpInstruction = "enter at least 3 alphanumeric characters";
    };

    Bootstrap.whenDocumentReady().then(
      function ()
      {
        ko.applyBindings(new MemberViewModel(), document.getElementById('form-container'));
      }
    );
  });

For the complete example, see Help and Title in the Oracle JET Cookbook. For additional detail about the oj-input-text component, see the ojInputText API documentation.

For additional information about the regular expression validator, see About Oracle JET Validators and Converters.

Control the Display of Hints, Help, and Messages

Use the display-options attribute to control the placement and visibility of converter and validator hints, messages, and help instructions.

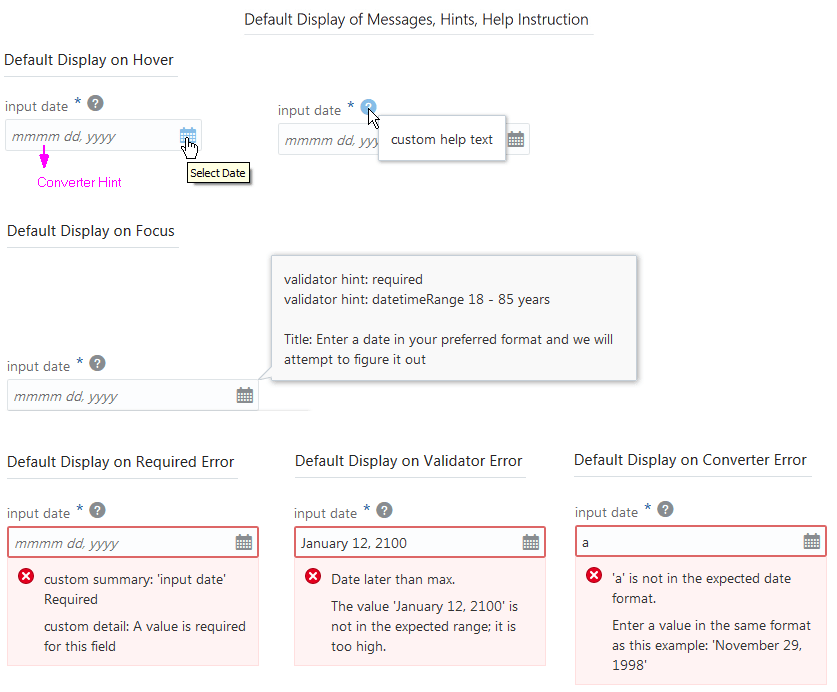

The following image shows the default placement and visibility of help, converter and validator hints, and messages. This example uses the oj-input-date component, but the behavior is the same on all editable components where it makes sense:

validator hint: Displays in a note window on focus
converter hint: Used as the input field's placeholder, or displays in a note window if the placeholder attribute is defined.
messages: Displays inline on error
help.instruction: Displays in a note window on focus

The oj-label exclusive attribute help.definition displays in a note window on hover.

A screenshot of a web page form with date input fields, showing different error and help messages for date validation, including hints for required fields, date range validation, and format errors.

Description of the illustration messaging-display-defaults.png

The code sample below shows the markup for the oj-input-date component used in this example. The example includes definitions for help.instruction, validator hints, and a data value for custom messages on validation failure. The sample also shows the markup for a oj-label element with the help attribute.

<div id="form-container" class="oj-form">
 <h3 class="oj-header-border">Default Display of Messages, Hints, Help Instruction</h3>
 <oj-label for="date10" help.definition="custom help text"> Input Date</oj-label>
 <oj-input-date id="date10" size="30" name="date10" required placeholder="month day, year"
                help.instruction='enter a date in your preferred format and we will attempt to figure it out'
                converter="[[longDateConverter]]"
                value="{{birthdate}}" validators="[[validators]]"
                translations='{
                  "required": {
                  "hint": "validator hint: required",
                  "messageSummary": "<html>custom summary: {label} <b>Required</b></html>",
                  "messageDetail": "<html>custom detail: A value is required for this field</html>"}}'>
 </oj-input-date>

The code sample below shows the custom messages on validation failure set in the app’s script.

function MemberViewModel()
{
   var self = this;
   self.validators = ko.computed(function()
   {
      return [{
          type: 'datetimeRange',
          options: {
            min: ValidationBase.IntlConverterUtils.dateToLocalIso(new Date(1930, 00, 01)),
            max: ValidationBase.IntlConverterUtils.dateToLocalIso(new Date(1995, 11,31)),
            hint: {
              inRange: 'Validator hint: datetimeRange: January 1, 1930 - November 30, 1995 years'},
            messageSummary:{
              rangeOverflow: 'Date later than max.',
              rangeUnderflow: 'Date earlier than min.'},
            messageDetail: {
              rangeOverflow: 'The value \'{value}\' is not in the expected range; it is too high.',
              rangeUnderflow: 'The value \'{value}\' is not in the expected range; it is too low.'}
              }}];
   });
   //...Contents Omitted

}

Bootstrap.whenDocumentReady().then(
    function ()
    {
      ko.applyBindings(new MemberViewModel(), document.getElementById('form-container'));
    }
  );
});

Using the display-options element attribute in your markup, you can change the default behavior of the hints, help, and messaging properties of a single editable component on your page. To control the behavior of all editable components on the page, you can use the Component.setDefaultOptions() method in your app script to set displayOptions values.

display-options allows you to change the default behavior as follows:

helpInstruction: Set to none to turn off the help instruction display.
converterHint: Set to none to turn off the display or set to notewindow to change the default placement from placeholder text to a note window.
validatorHint: Set to none to turn off the display.
messages: Set to none to turn off the display or set to notewindow to change the default placement from inline to a note window.

Before you begin:

Familiarize yourself with the process of adding an Oracle JET element to your page. See Add an Oracle JET Component to Your Page.

To change the default display type (inline or note window) and display options for hints, help, and messages:

Add the editable element to your page.
To change the default display type (inline or note window) for an individual editable component, add the display-options attribute to your component definition and set it as needed.

For example, to turn off the display of hints and help.instruction and to display messages in a note window, add the highlighted markup to your component definition: oac_no_warn

    <oj-input-date id="date12" required value="{{birthdate}}"
      converter="[[longDateConverter]]" validators="[[validators]]"
      help.instruction="enter a date in your preferred format and we will attempt to figure it out"
      display-options='{"converterHint": "none", "validatorHint": "none", "helpInstruction": "none", "messages": "notewindow"}'
        ... *contents omitted*
    }"

To change the default display and location for all editable components in your app, add the Component.setDefaultOptions() method to your app's script and specify the desired displayOptions.

For example, to turn off the display of hints and help and to display messages in a note window, add the ojComponent.setDefaultOptions() method with the arguments shown below.
```
Components.setDefaultOptions({
  'editableValue':
  {
    'displayOptions':
    {
      'converterHint': ['none'],
      'validatorHint': ['none'],
      'messages': ['notewindow'],
      'helpInstruction': ['none']
    }
  }});
```

The Oracle JET cookbook contains the complete code for this example at User Assistance. You can also find additional examples that illustrate hints, help, and messaging configuration.
