Attribute Mappings for the Target Application

3.3.1 Attribute Mappings for the Target Application

The Schema page for a target application displays the default schema (provided by the connector) that maps Oracle Identity Governance attributes to target system attributes. The connector uses these mappings during reconciliation and provisioning operations.

The following table lists the user-specific attribute mappings between the process form fields in Oracle Identity Governance and ARCON Privileged Access Management target application attributes The table also lists whether a specific attribute is used during provisioning or reconciliation and whether it is a matching key field for fetching records during reconciliation.

If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application of Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.

Table 3-3 Default Attribute for ARCON Privileged Access Management Target Application

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Provision Field?	Recon Field?	Key Field?	Case Insensitive?
User ID	__UID__	String	No	No	Yes	Yes	Yes
User Name	__NAME__	String	No	Yes	Yes	No	Not applicable
Display Name	displayName	String	No	Yes	Yes	No	Not applicable
ValidTillDate	ValidTillDate	String	No	Yes	Yes	No	Not applicable
Status	__ENABLE__	String	No	No	Yes	No	Not applicable
Email	emails.value	String	No	Yes	Yes	No	Not applicable
Domain Name	domainName	String	No	Yes	Yes	No	Not applicable
Phone Number	phoneNumbers.value	String	No	Yes	Yes	No	Not applicable
User Type ID	userTypeId	String	No	Yes	Yes	No	Not applicable
Full Name	name.formatted	String	No	No	Yes	No	Not applicable
Last Name	name.familyName	String	No	No	Yes	No	Not applicable
First Name	name.givenName	String	No	No	Yes	No	Not applicable
Middle Name	name.middleName	String	No	No	Yes	No	Not applicable
Password	__PASSWORD__	String	No	Yes	No	No	Not applicable
LOB	LobPrimary	String	No	Yes	No	No	Not applicable
IT Resource Name		Long	No	No	Yes	No	Not applicable

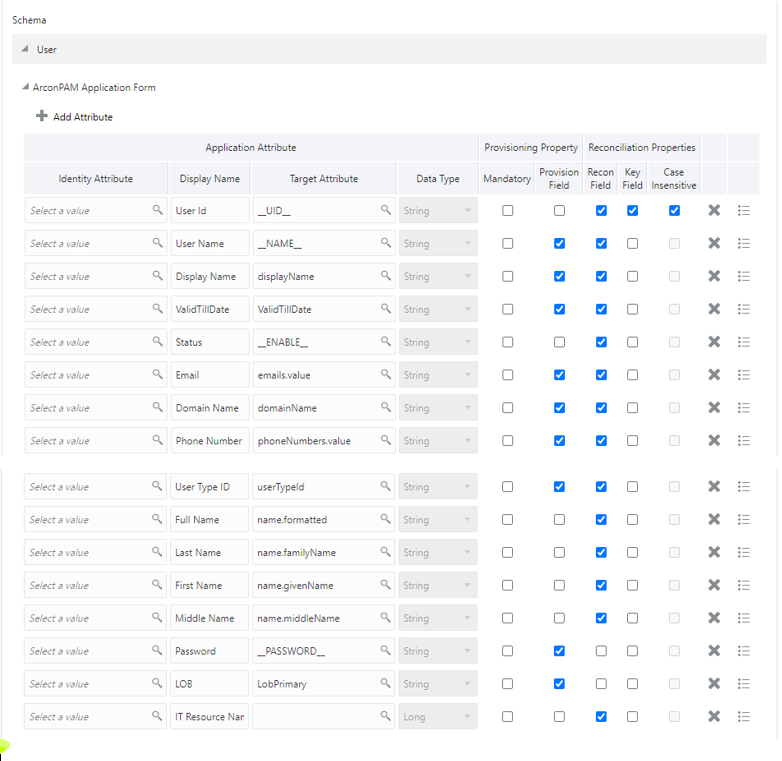

The following figure shows the default User account attribute mappings.

Figure 3-1 Default Attribute Mappings for ARCON Privileged Access Management User Account

ARCON Privileged Access Management Roles Entitlement

The following table lists the roles forms attribute mappings between the process form fields in Oracle Identity Governance and ARCON Privileged Access Management target application attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.

If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application in Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.

Table 3-4 Default Attribute Mappings for Roles

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Recon Field	Key Field?	Case Insensitive?
Roles	RoleId	String	No	Yes	Yes	No

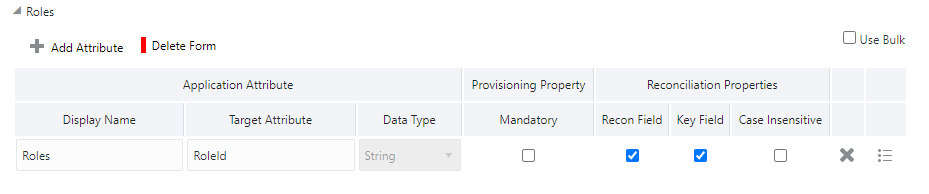

The following figure shows the default Roles Entitlement mapping.

Figure 3-2 Default Attribute Mappings for ARCON Privileged Access Management

ARCON Privileged Access Management Groups Entitlement

The following table lists the group forms attribute mappings between the process form fields in Oracle Identity Governance and ARCON Privileged Access Management target application attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.

Table 3-5 Default Attribute Mappings for Groups

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Recon Field	Key Field?	Case Insensitive?
Groups	GroupID~GroupID~id	String	No	Yes	Yes	No

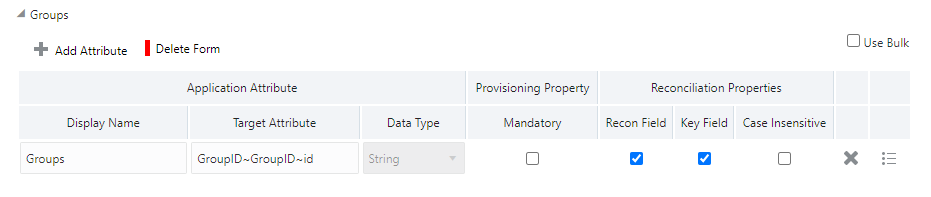

The following figure shows the default Groups Entitlement mapping.

Figure 3-3 Default Attribute Mappings for ARCON Privileged Access Management Groups

ARCON Privileged Access Management LOBs

The following table lists the LOB forms attribute mappings between the process form fields in Oracle Identity Governance and ARCON Privileged Access Management target application attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.

Table 3-6 Default Attribute Mappings for LOBs

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Recon Field	Key Field?	Case Insensitive?
LOBS	LobId	String	No	Yes	Yes	No

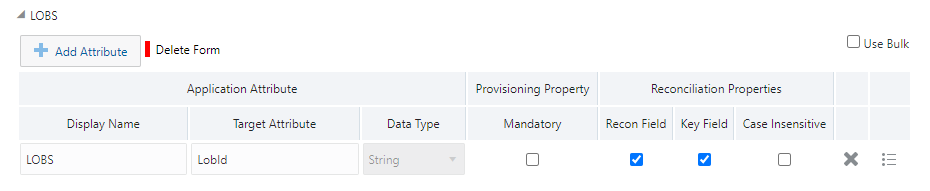

The following figure shows the default LOBs mapping.

Figure 3-4 Default Attribute Mappings for LOBs

ARCON Privileged Access Management Multi-factor Authentication

The following table lists the Multi-factor Authentication forms attribute mappings between the process form fields in Oracle Identity Governance and ARCON Privileged Access Management target application attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.

Table 3-7 Default Attribute Mappings for Multi-factor Authentication

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Recon Field	Key Field?	Case Insensitive?
MFA	UserDualAuthFactType~UserDualAuthFactType~id	String	No	Yes	Yes	No

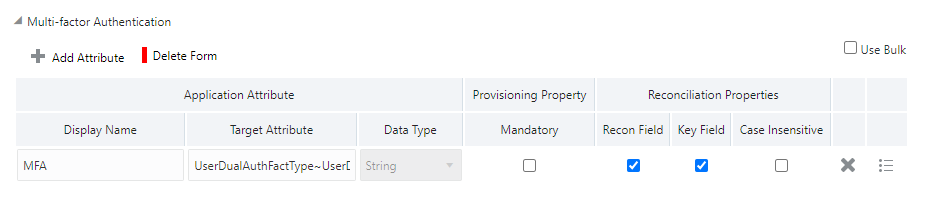

The following figure shows the default Multi-factor Authentication mapping.

Figure 3-5 Default Attribute Mappings for ARCON Privileged Access Management Multi-factor Authentication

ARCON Privileged Access Management PermanentServices Entitlement

The following table lists the PermanentService forms attribute mappings between the process form fields in Oracle Identity Governance and ARCON Privileged Access Management target application attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.

Table 3-8 Default Attribute Mappings for PermanentServices

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Recon Field	Key Field?	Case Insensitive?
Services	__USERSERVICE__~__USERSERVICE__~ServiceId	String	No	Yes	Yes	No
Access Type	__USERSERVICE__~__USERSERVICE__~AccessTypeId	String	No	Yes	No	Not Applicable

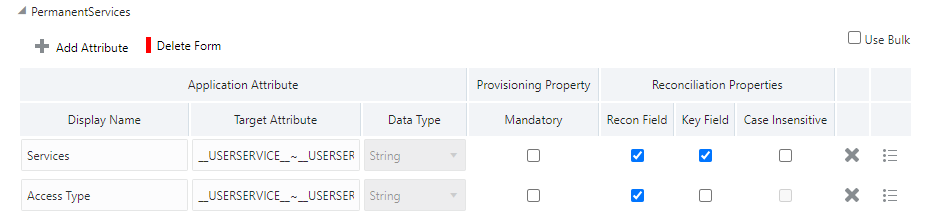

The following figure shows the default PermanentService mapping.

Figure 3-6 Default Attribute Mappings for ARCON Privileged Access Management PermanentServices

ARCON Privileged Access Management OneTimeServices Entitlement

The following table lists the OneTimeService forms attribute mappings between the process form fields in Oracle Identity Governance and ARCON Privileged Access Management target application attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.

Table 3-9 Default Attribute Mappings for OneTimeServices

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Recon Field	Key Field?	Case Insensitive?
Services	__ONETIMEUSERSERVICE__~__ONETIMEUSERSERVICE__~ServiceId	String	No	Yes	Yes	No
Access Type	__ONETIMEUSERSERVICE__~__ONETIMEUSERSERVICE__~AccessTypeId	String	No	Yes	No	Not Applicable
StartDateTime	__ONETIMEUSERSERVICE__~__ONETIMEUSERSERVICE__~StartDateTime	String	No	Yes	No	Not Applicable
EndDateTime	__ONETIMEUSERSERVICE__~__ONETIMEUSERSERVICE__~EndDateTime	String	No	Yes	No	Not Applicable

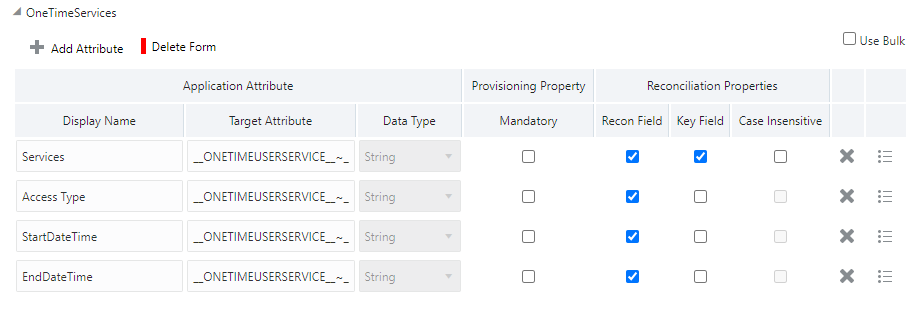

The following figure shows the default OneTimeService Entitlement mapping.

Figure 3-7 Default Attribute Mappings for ARCON Privileged Access Management OneTimeServices

ARCON Privileged Access Management TimeBasedServices Entitlement

The following table lists the TimeBasedService forms attribute mappings between the process form fields in Oracle Identity Governance and ARCON Privileged Access Management target application attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.

Table 3-10 Default Attribute Mappings for TimeBasedService

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Recon Field	Key Field?	Case Insensitive?
Services	__TIMEBASEDUSERSERVICE__~__TIMEBASEDUSERSERVICE__~ServiceId	String	No	Yes	Yes	No
Access Type	__TIMEBASEDUSERSERVICE__~__TIMEBASEDUSERSERVICE__~AccessTypeId	String	No	Yes	No	Not Applicable
Start Date	__TIMEBASEDUSERSERVICE__~__TIMEBASEDUSERSERVICE__~StartDate	String	No	Yes	No	Not Applicable
End Date	__TIMEBASEDUSERSERVICE__~__TIMEBASEDUSERSERVICE__~EndDate	String	No	Yes	No	Not Applicable
Start Time	__TIMEBASEDUSERSERVICE__~__TIMEBASEDUSERSERVICE__~StartTime	String	No	Yes	No	Not Applicable
End Time	__TIMEBASEDUSERSERVICE__~__TIMEBASEDUSERSERVICE__~EndTime	String	No	Yes	No	Not Applicable
Hours	__TIMEBASEDUSERSERVICE__~__TIMEBASEDUSERSERVICE__~hours	String	No	Yes	No	Not Applicable
Minutes	__TIMEBASEDUSERSERVICE__~__TIMEBASEDUSERSERVICE__~minutes	String	No	Yes	No	Not Applicable

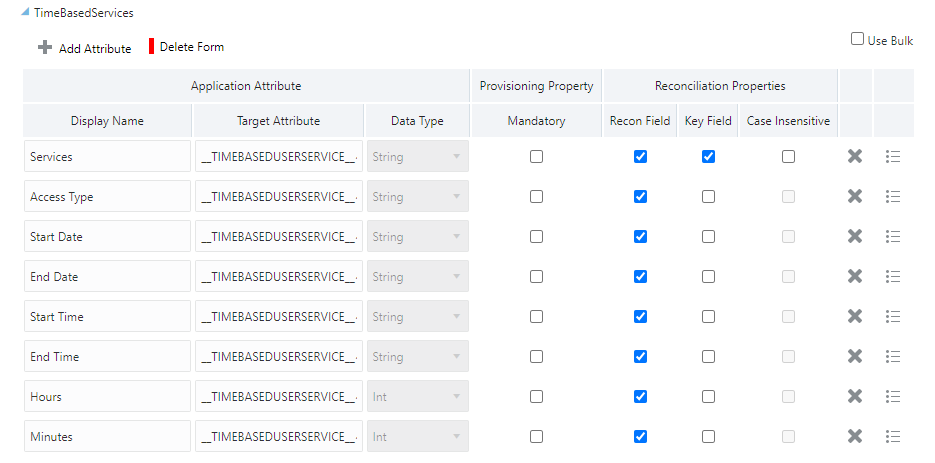

The following figure shows the default TimeBasedService Entitlement mapping.

Figure 3-8 Default Attribute Mappings for ARCON Privileged Access Management TimeBasedService
