3.3.1 Attribute Mappings for the Target Application

The Schema page for a target application displays the default schema (provided by the connector) that maps Oracle Identity Governance attributes to target system attributes. The connector uses these mappings during reconciliation and provisioning operations.

The following table lists the user-specific attribute mappings between the process form fields in Oracle Identity Governance and SAP Ariba target application attributes The table also lists whether a specific attribute is used during provisioning or reconciliation and whether it is a matching key field for fetching records during reconciliation.

If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application Creating a Target Application of Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.

Table 3-3 Default Attribute SAP Ariba Target Application

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Provision Field?	Recon Field?	Key Field?	Case Insensitive?
User ID	__UID__	String	No	Yes	Yes	Yes	No
User Type	PasswordAdapter	String	Yes	Yes	Yes	No	Not applicable
Unique Name	UniqueName	String	Yes	Yes	Yes	No	Not applicable
Name	__NAME__	String	Yes	Yes	Yes	No	Not applicable
Active	__ENABLE__	String	No	Yes	Yes	No	Not applicable
Organization	Organization	String	No	Yes	Yes	No	Not applicable
Supervisor	Supervisor	String	No	Yes	Yes	No	Not applicable
Default Currency	DefaultCurrency	String	No	Yes	Yes	No	Not applicable
Locale	LocaleID	String	No	Yes	Yes	No	Not applicable
Timezone	TimeZoneID	String	No	No	Yes	No	Not applicable
Business Email Address	EmailAddress	String	Yes	Yes	Yes	No	Not applicable
Business Phone Number	Phone	String	No	Yes	Yes	No	Not applicable
Creation Date	TimeCreated	String	No	No	Yes	No	Not applicable
Last Modified Date	TimeUpdated	String	No	No	Yes	No	Not applicable
IT Resource Name		Long	No	No	Yes	No	Not applicable

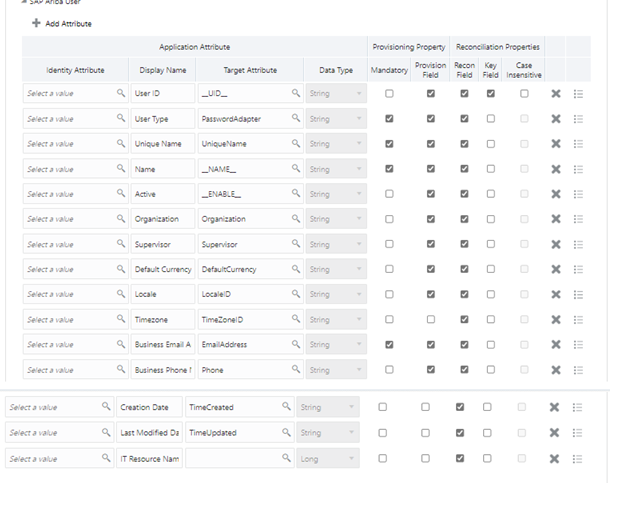

The following figure shows the default User account attribute mappings.

Figure 3-1 Default Attribute Mappings for SAP Ariba User Account

SAP Ariba Groups Entitlement

The following table lists the group forms attribute mappings between the process form fields in Oracle Identity Governance and SAP Ariba target application attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.

If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application in Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.

Table 3-4 Default Attribute Mappings for Groups

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Recon Field	Key Field?	Case Insensitive?
Group Name	__GROUP__~__GROUP__~UniqueName	String	No	Yes	Yes	No

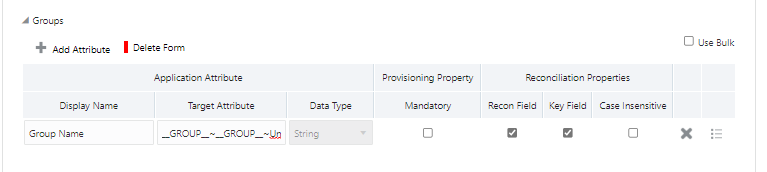

The following figure shows the default Groups Entitlement mapping.

Figure 3-2 Default Attribute Mappings for SAP Ariba Groups
