To Install the HBA

1. Attach an antistatic strap (refer to Observing ESD and Handling Precautions).
2. Refer to your system installation guide or service manual to determine an appropriate PCIe slot in which to install the HBA.
3. Shut down, power off, and unplug the system, if required.
4. Remove the system case.
5. Remove the blank panel from an empty PCIe slot.
6. (Optional) Perform the following steps if you need to replace the transceivers.
   1. Remove each transceiver from its cage assembly by pulling the bail (handle) out and down to release the latch and gently pull the transceiver out of its housing.

      Do not force it. After the latch is released, the transceiver slides out easily.

      Caution:

      This is a delicate operation–take care not to damage the transceiver.

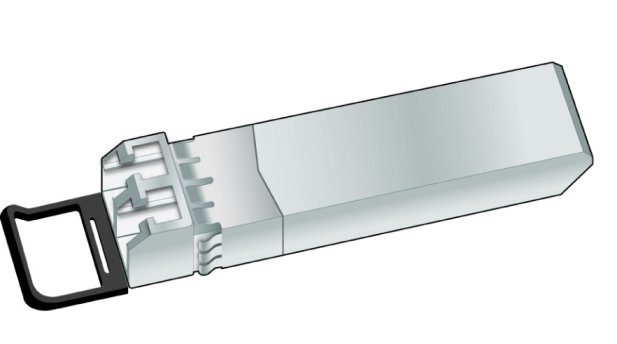

      The following image shows the transceiver.

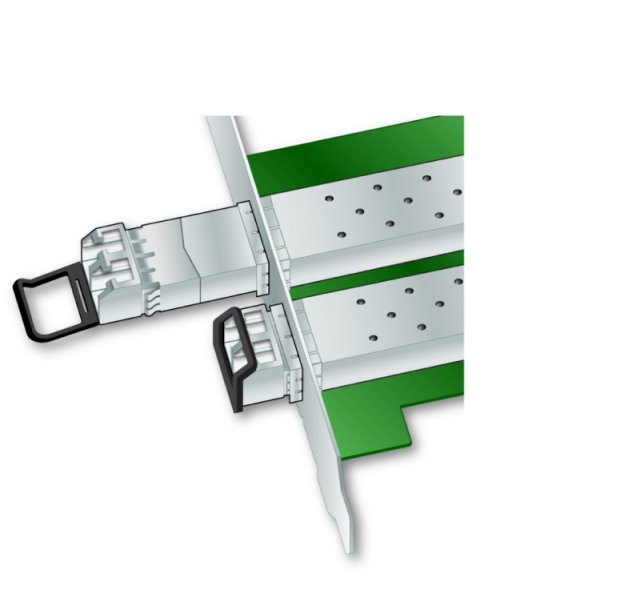

      The following image shows an optical transceiver that is partially removed from its housing, and an optical transceiver that is latched in place.




   2. Observing ESD precautions, store each transceiver in an ESD-safe place.
   3. Install each new transceiver by sliding the new transceiver into the housing.

      When the latch engages, it clicks.

   4. Push the bail back into place.
7. Insert the HBA into the empty PCIe 8-lane slot and press firmly until the adapter is seated.
8. Secure the mounting bracket of the HBA to the case with the panel screw or clip.
9. Replace the system case and tighten the case screws.

   The HBA is now installed in the system and is ready for media attachment.
