To Confirm the Logical Drive Creation (x86)

Before performing this procedure, verify the drives and their slots (see To Verify the Drives and Their Slots (x86)) and create a logical drive (see To Create a Logical Drive (x86)).

1. On the Create Virtual Drive page, optionally make any changes that you would like (such as defining a drive name), and press Enter at the Save the Configuration field to save the new configuration.

   The Save Configuration confirmation page is displayed.


2. Confirm the drive creation by doing the following:

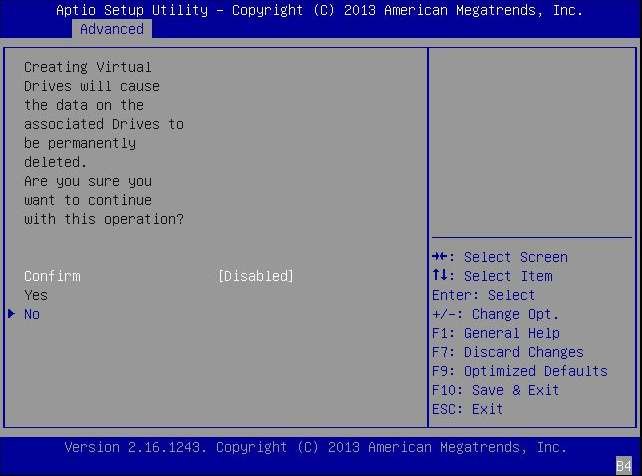

   1. Use the arrow keys to navigate to the Confirm field, and press Enter.

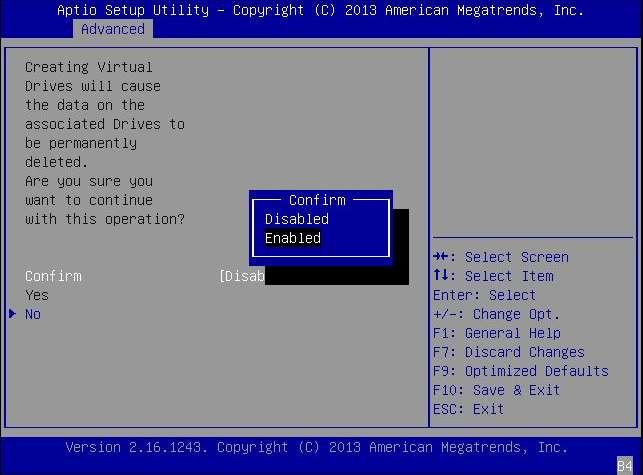

   2. From the popup window, change the value of the Confirm field to Enabled, and press Enter.

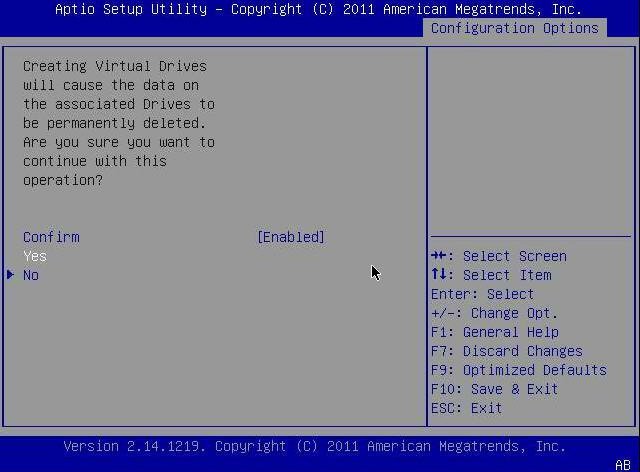

   3. Use the arrow key to navigate to the Yes field, and press Enter.



3. At the page that is displayed, press Enter to complete the virtual drive creation.

   A message is displayed, stating that the virtual drive creation was successful and that all free unconfigurable space has been used.

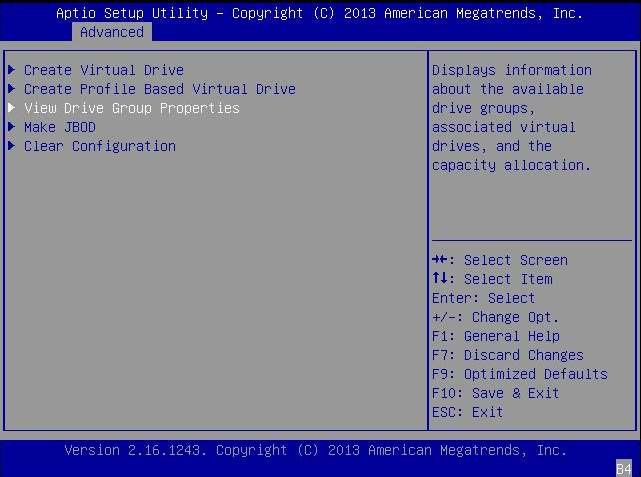

4. To verify that the logical drive (virtual drive) was created, press the Esc key to return to the Configuration Utility menu, use the arrow keys to navigate to the View Drive Group Properties menu option, and press Enter.

5. Review the logical drive information on the page that is displayed.

   In the following example, Drive Group 2, Virtual Drive 4 has been created.


6. Exit the BIOS Setup Utility and reboot to install an OS on that logical drive or to manipulate the boot drive.

   For information about verifying the label of the newly created logical drive, see To Verify That the Label of a Logical Drive Is Valid.

   For information about installing the Oracle OS, see Installing the Oracle Solaris OS.
