CMOD Slot Locations and Numbering

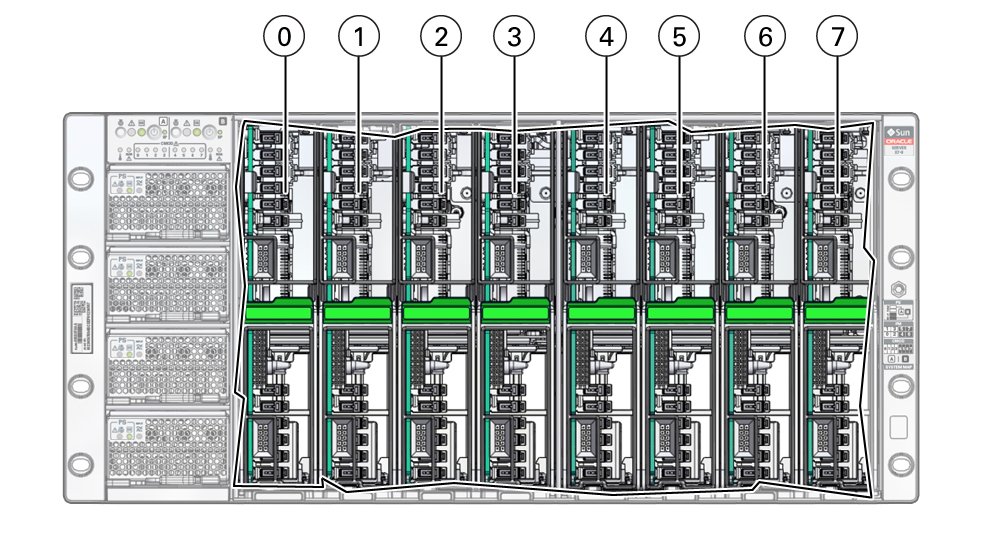

CPU module slots are arranged in a single row and are designated from left to right as CMOD 0 to CMOD 7. The CMOD slots are accessible from the front of the server by removing the FMs and frames.
The system is available with four CMODs or eight CMODs. Four-CMOD systems have CMODs in CMOD 0–CMOD 3, and empty slots in CMOD 4–CMOD 7.
For more information, see CPU Module (CMOD) Overview.
| Call Out | Description |
|---|---|
|
0 |
CMOD 0, SMOD0 System A |
|
1 |
CMOD 1, SMOD0 System A |
|
2 |
CMOD 2, SMOD0 System A |
|
3 |
CMOD 3, SMOD0 System A |
|
4 |
CMOD 4, SMOD1 System B |
|
5 |
CMOD 5, SMOD1 System B |
|
6 |
CMOD 6, SMOD1 System B |
|
7 |
CMOD 7, SMOD1 System B |
