About DNS resolution in Oracle Database@Google Cloud

Reliable and secure domain name server (DNS) resolution is a foundational component of Oracle Database@Google Cloud. To support smooth DNS resolution, Oracle Database@Google Cloud uses DNS forwarding, enabling Google Cloud workloads within a VPC to resolve fully qualified domain names (FQDNs) of databases provisioned in Oracle Database ODB networks.

In this solution playbook, you'll learn the use cases and configure secure, automated, scalable DNS resolution for Oracle Database@Google Cloud environments.

Architecture

During deployment, a Google Cloud DNS Zone is created to map Oracle Database@Google Cloud resources to FQDNs as follows:
  • *.oraclevcn.com for Oracle Exadata Database Service, Oracle Exadata Database Service on Exascale Infrastructure, and Oracle Base Database Service.
  • *.oraclecloud.com and *.oraclecloudapps.com for Oracle Autonomous Database.

An OCI Private DNS listener endpoint is created during Oracle Database@Google Cloud deployment, associated with the private resolver, default private view, and a private zone to the OCI VCN to resolve names and IPs in the OCI DNS service.

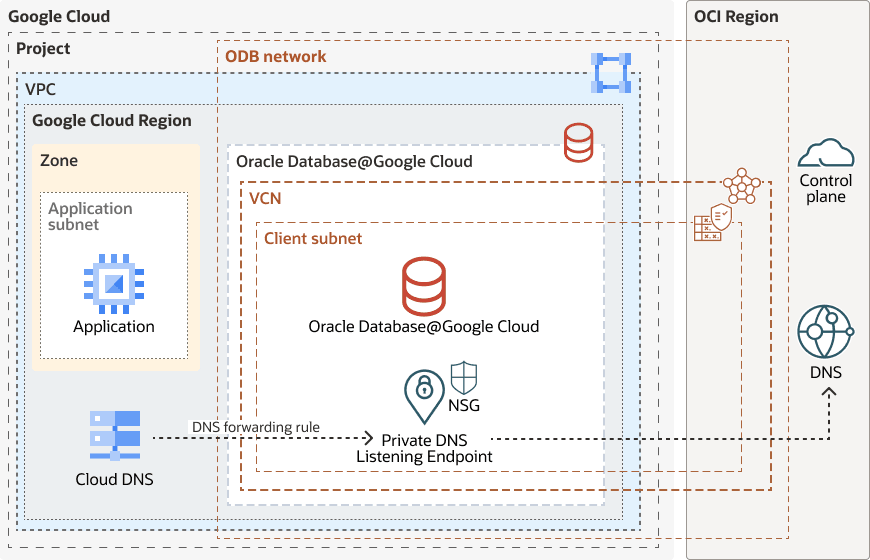

The following architecture shows the Google Cloud DNS Zone forwarded to the OCI Private DNS listener endpoint:


Description of resolve-dns-oci-google-cloud.png follows
Description of the illustration resolve-dns-oci-google-cloud.png

resolve-dns-oci-google-cloud-oracle.zip

The architecture enables private, controlled connectivity from an application in Google Cloud to Oracle Database@Google Cloud with DNS resolution handled by OCI DNS through a private listener.

The architecture has the following components:

  • OCI virtual cloud network and subnet

    A virtual cloud network (VCN) is a customizable, software-defined network that you set up in an OCI region. Like traditional data center networks, VCNs give you control over your network environment. A VCN can have multiple non-overlapping classless inter-domain routing (CIDR) blocks that you can change after you create the VCN. You can segment a VCN into subnets, which can be scoped to a region or to an availability domain. Each subnet consists of a contiguous range of addresses that don't overlap with the other subnets in the VCN. You can change the size of a subnet after creation. A subnet can be public or private.

  • Security list

    For each subnet, you can create security rules that specify the source, destination, and type of traffic that is allowed in and out of the subnet.

  • Network security group (NSG)

    NSGs act as virtual firewalls for your cloud resources. With the zero-trust security model of OCI you control the network traffic inside a VCN. An NSG consists of a set of ingress and egress security rules that apply to only a specified set of virtual network interface cards (VNICs) in a single VCN.

  • Private DNS resolver

    A private DNS resolver answers DNS queries for a VCN. A private resolver can be configured to use views, zones, and conditional forwarding rules to define how queries are resolved.

  • Listener endpoint

    A listener endpoint receives queries from within the VCN, from other VCN resolvers, or from an on-premises network's DNS. After creation, no further configuration is needed.

  • Forwarder endpoint

    A forwarder endpoint forwards DNS queries to the listener endpoint for resolvers in other peered VCNs or an on-premises DNS. Forwarding decisions are governed by resolver rules.

  • Resolver rules

    Resolver rules define how to respond to queries not answered by a resolver's view. They are processed in order and can have optional conditions to limit which queries they apply to. When a condition matches, the forwarding action is performed.

  • Google Virtual Private Cloud

    Google Virtual Private Cloud (VPC) provides networking functionality to Compute Engine virtual machine (VM) instances, Google Kubernetes Engine (GKE) containers, database services, and serverless workloads. VPC provides global, scalable, and flexible networking for your cloud-based service.

  • Google Cloud DNS

    Cloud DNS provides both public zones and privately managed DNS zones. Public zones are visible on the internet; private zones are visible only within specified VPC networks.

  • Google Cloud DNS forwarder

    Google Cloud supports inbound and outbound DNS forwarding for private zones. You can configure DNS forwarding by creating a forwarding zone or a Cloud DNS server policy.

  • Google Cloud project

    A Google Cloud Project is required to use Google Workspace APIs and build Google Workspace add-ons or apps. A Cloud Project forms the basis for creating, enabling, and using all Google Cloud services, including managing APIs, enabling billing, adding and removing collaborators, and managing permissions.

  • ODB network

    The ODB network creates a metadata construct around the Google Virtual Private Cloud (VPC), serving as the foundation for all database provisioning. The ODB network enables support for Shared VPC by abstracting and centralizing network configuration - such as subnets, CIDR ranges, and routing. This allows network administrators to manage connectivity independently of database deployment workflows.

Before You Begin

To implement the DNS use cases, ensure you have the following roles and permissions:
