Display REPlicat Listvtvs DELAY Option

This update applies to the ELS 7.3 Command, Control Statement, and Utility Reference.

The Display REPlicat Listvtvs parameter adds the DELAY option, used to display the VTVs for the VTSS that are being delayed for both asynchronous replication and electronic export.

Syntax

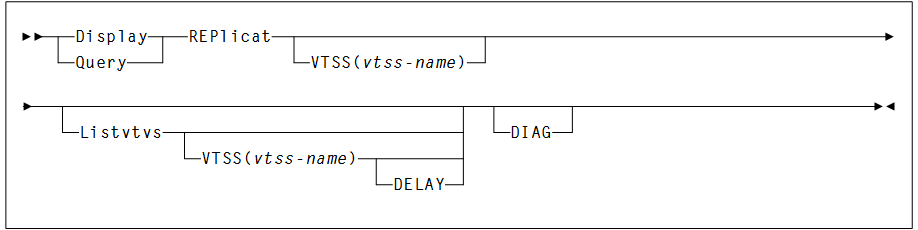

For reference, the following figure shows complete syntax for the Display REPlicat command, including the added DELAY parameter:

Figure 2-6 Display REPlicat command syntax

Description of "Figure 2-6 Display REPlicat command syntax"

Parameters

The Display REPlicat Listvtvs parameter adds the DELAY option:

Listvtvs

optionally, lists volsers of VTVs awaiting replication or electronic export from the specified VTSS, and indicates an age range, or number of minutes the VTVs have been queued.

VTSS(vtss-name)

optionally, lists volsers for only the specified VTSS.

vtss-name indicates the VTSS name.

DELAY

optionally, lists VTVs for the specified VTSS that are being delayed for both asynchronous replication and asynchronous electronic export. Output also indicates the minimum and maximum age of the delayed VTVs.

Output

The following example shows output produced by the Display REPlicat command issued with the LISTVTVS and DELAY parameters:

D REPL LISTVTVS VTSS(DVTSS16) DELAY

SLS6603I VTVs awaiting replication
VTVs to be replicated to TAPEPLEX SECNDARYDX0200
1 volumes with an age range of 1-1 in the queue
VTVs to be replicated within cluster BIDIRDX 0201 DX0202 DX0203
3 volumes with an age range of 1-3 in the queue

Note:

If a VTV is assigned a MGMTCLAS that has both REP(YES) and EEXPOL(EE) with REPDELAY specified, the VTV only displays in the replicated to TAPEPLEX output section. The replication within the cluster will occur once the replication to TAPEPLEX has occurred.
