Configuring FC Port Modes (BUI)

Use the following procedure to configure FC port modes.

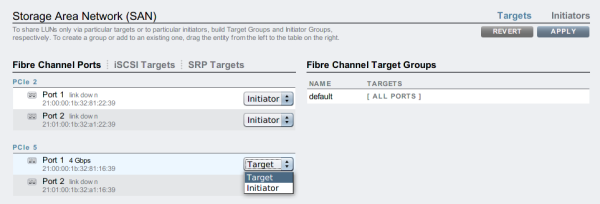

1. To use FC ports, set them to Target mode on the Configuration: Storage Area Network (SAN) screen of the BUI, using the drop-down menu shown in the following image. You must have root permissions to perform this action. Note that in a cluster configuration, you set ports to Target mode on each controller separately.



2. After setting desired ports to Target, click APPLY. A confirmation message will appear, notifying you that the appliance will reboot immediately. Confirm that you want to reboot.
3. When the appliance boots, the active FC targets appear with the FC active icon and, on mouse-over, the move icon appears.
