NDMP Status

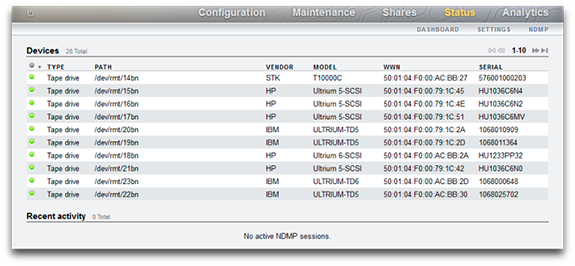

When the NDMP service has been configured and is active, the Status NDMP page shows the NDMP devices and recent client activity. A green indicator shows that the device is online, and a gray indicator shows that the device is offline.

To resort the NDMB Devices list, click on the Devices column headings. To display details about a device, double-click on the device.

NDMP status is not available from the CLI.

Table 2-22 NDMP Status - Devices

Field	Description	Examples
Type	Type of NDMP device	Robot, Tape drive
Path	Path of the NDMP device	/dev/rmt/14bn
Vendor	Device vendor name	STK
Model	Device model name	T1000C
WWN	World Wide Name	50:01:04:F0:00:AC:BB:27
Serial	Device serial number	576001000203

Table 2-23 NDMP Status - Recent Activity

Field	Description	Examples
ID	NDMP backup ID	49
Active	Backup currently active	No
Remote Client	NDMP client address and port	192.168.1.219:4760
Authenticated	Shows if the client has completed authentication yet	Yes, No
Data State	See Data State	Active, Idle, ...
Mover State	See Mover State	Active, Idle, ...
Current Operation	Current NDMP operation	Backup, Restore, None
Progress	A progress bar for this backup
