Add Exclusive Oracle Storage Drive Enclosure DE3-24 Disk Shelves Chain

In this example, a configuration of six Oracle Storage Drive Enclosure DE2-24 (left 3 chains) is upgraded by adding a chain of three Oracle Storage Drive Enclosure DE3-24 (right chain).

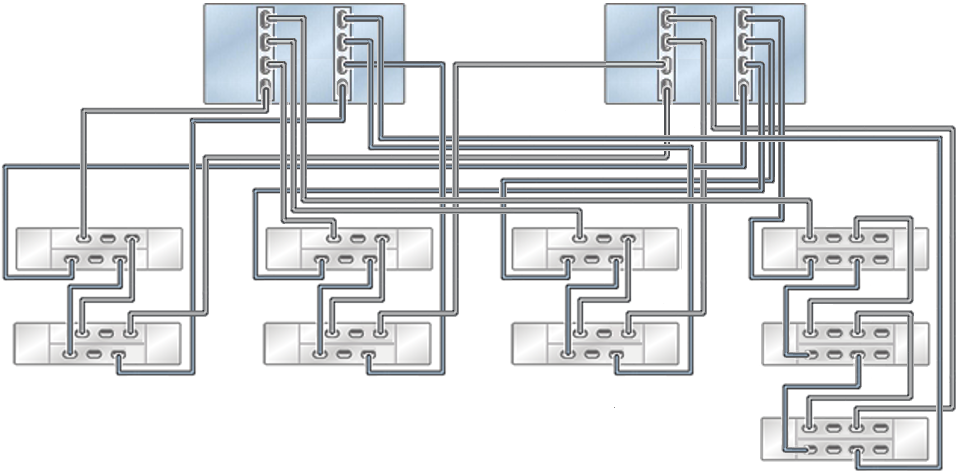

Clustered Oracle ZFS Storage ZS7-2 MR controllers with two HBAs connected to three Oracle Storage Drive Enclosure DE3-24 (right chain) and six Oracle Storage Drive Enclosure DE2-24 in three chains


Figure showing clustered Oracle ZFS Storage ZS7-2 MR controllers with two HBAs connected to three Oracle Storage Drive Enclosure DE3-24 (right chain) and six Oracle Storage Drive Enclosure DE2-24 in three chains.
