Example Mixed Disk Shelf Configurations

The following figures show a subset of the supported configurations for Oracle ZFS Storage ZS9-2 controllers connected to Oracle Storage Drive Enclosure DE3-12C and other disk shelves. These serve as example configurations.

The following figure shows clustered Oracle ZFS Storage ZS9-2 MR controllers with two HBAs each connected to eight Oracle Storage Drive Enclosure DE3-12C disk shelves (first chain from the left) and six Oracle Storage Drive Enclosure DE3-24 disk shelves (two disk shelves per chain in the remaining three chains).


Figure showing clustered Oracle ZFS Storage ZS9-2 MR controllers with two HBAs each connected to eight Oracle Storage Drive Enclosure DE3-12C disk shelves (first chain from the left) and six Oracle Storage Drive Enclosure DE3-24 disk shelves (two disk shelves per chain in the remaining three chains).

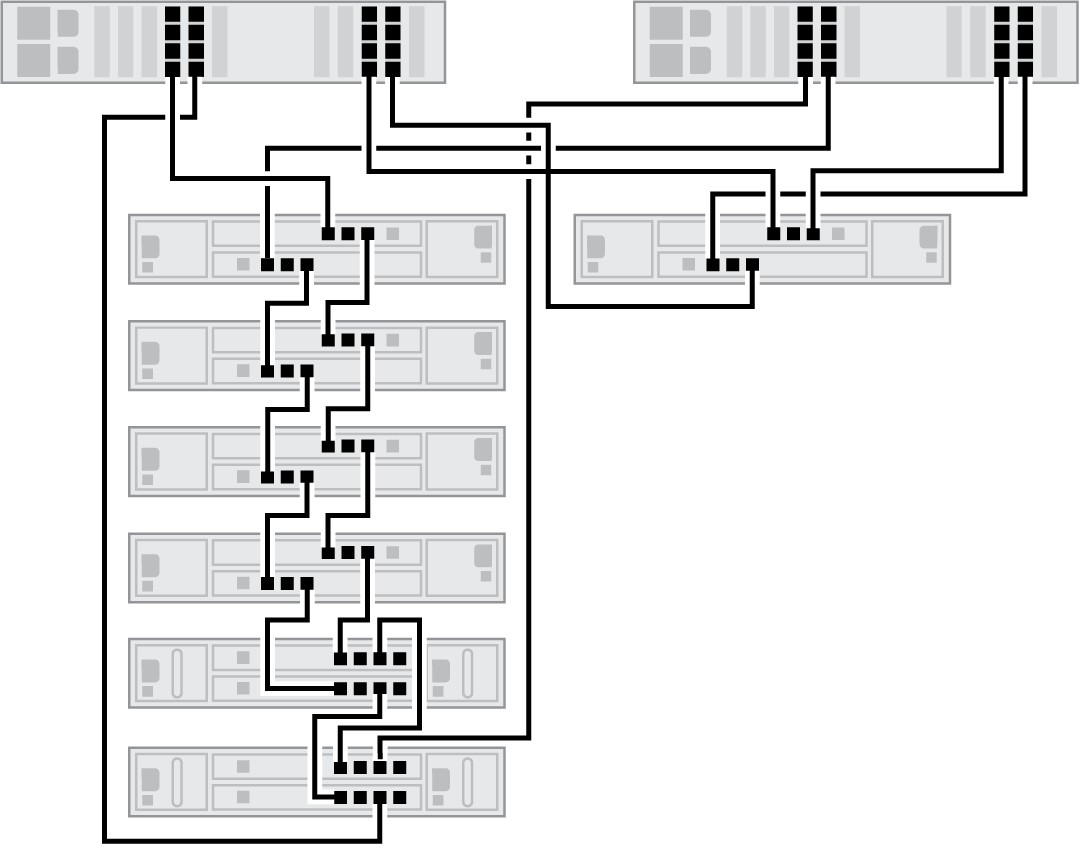

The following figure shows clustered Oracle ZFS Storage ZS9-2 HE controllers with four HBAs each connected to four Oracle Storage Drive Enclosure DE3-12C disk shelves (first chain from the left, top four disk shelves) and two Oracle Storage Drive Enclosure DE3-24 disk shelves (first chain from the left, bottom two disk shelves), and one Oracle Storage Drive Enclosure DE3-12C disk shelf (first chain from the right).


Figure showing clustered Oracle ZFS Storage ZS9-2 HE controllers with four HBAs each connected to four Oracle Storage Drive Enclosure DE3-12C disk shelves (first chain from the left, top four disk shelves) and two Oracle Storage Drive Enclosure DE3-24 disk shelves (first chain from the left, bottom two disk shelves), and one Oracle Storage Drive Enclosure DE3-12C disk shelf (first chain from the right).

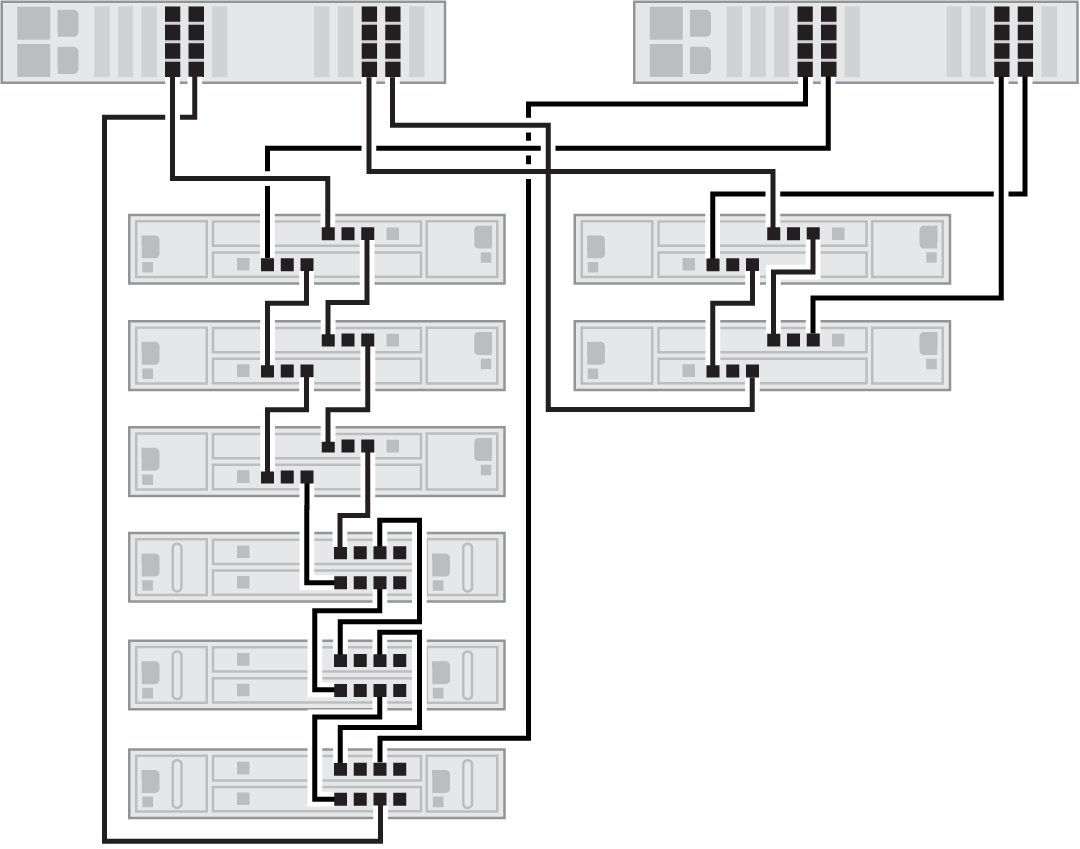

The following figure shows clustered Oracle ZFS Storage ZS9-2 HE controllers with four HBAs each connected to three Oracle Storage Drive Enclosure DE3-12C disk shelves (first chain from the left, top three disk shelves) and three Oracle Storage Drive Enclosure DE3-24 disk shelves (first chain from the left, bottom three disk shelves), and two Oracle Storage Drive Enclosure DE3-12C disk shelves (first chain from the right).


Figure showing clustered Oracle ZFS Storage ZS9-2 HE controllers with four HBAs each connected to three Oracle Storage Drive Enclosure DE3-12C disk shelves (first chain from the left, top three disk shelves) and three Oracle Storage Drive Enclosure DE3-24 disk shelves (first chain from the left, bottom three disk shelves), and two Oracle Storage Drive Enclosure DE3-12C disk shelves (first chain from the right).

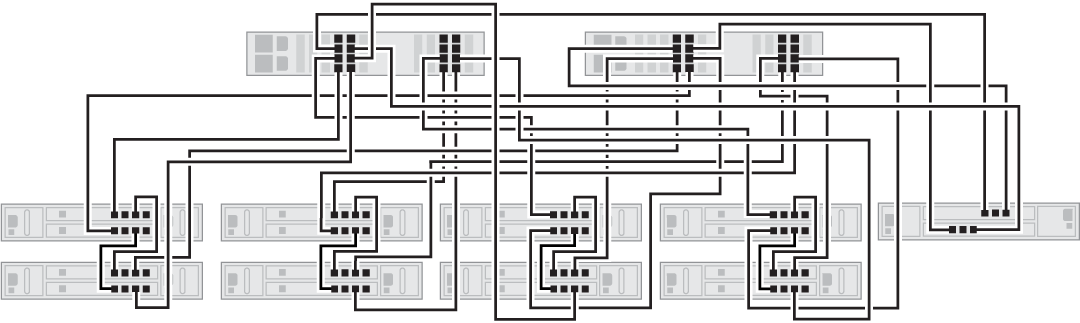

The following figure shows clustered Oracle ZFS Storage ZS9-2 HE controllers with four HBAs each connected to eight Oracle Storage Drive Enclosure DE3-24P All-Flash disk shelves (two disk shelves per chain in the first four chains from the left), and one Oracle Storage Drive Enclosure DE3-12C disk shelf (first chain from the right).


Figure showing clustered Oracle ZFS Storage ZS9-2 HE controllers with four HBAs each connected to eight Oracle Storage Drive Enclosure DE3-24P All-Flash disk shelves (two disk shelves per chain in the first four chains from the left), and one Oracle Storage Drive Enclosure DE3-12C disk shelf (first chain from the right).

The following figure shows clustered Oracle ZFS Storage ZS9-2 HE controllers with four HBAs each connected to eight Oracle Storage Drive Enclosure DE3-24P All-Flash disk shelves (two disk shelves per chain in the first four chains from the left), and two Oracle Storage Drive Enclosure DE3-12C disk shelves (first chain from the right).


Figure showing clustered Oracle ZFS Storage ZS9-2 HE controllers with four HBAs each connected to eight Oracle Storage Drive Enclosure DE3-24P All-Flash disk shelves (two disk shelves per chain in the first four chains from the left), and two Oracle Storage Drive Enclosure DE3-12C disk shelves (first chain from the right).
