Oracle ZFS Storage ZS5-2 Clustered to Oracle Storage Drive Enclosure DE2-24 Disk Shelves (1 HBA)

The following figures show a subset of the supported configurations for Oracle ZFS Storage ZS5-2 clustered controllers with one HBA. To cable the controller to the disk shelves, see Getting Started with Cabling.

Note:

For HBA port locations, see the hardware overview section for the Oracle ZFS Storage ZS5-2 controller in Oracle ZFS Storage Appliance Installation Guide, Release OS8.8.x.

Clustered Oracle ZFS Storage ZS5-2 controllers with one HBA connected to one Oracle Storage Drive Enclosure DE2-24 disk shelf in a single chain

Clustered Oracle ZFS Storage ZS5-2 controllers with one HBA connected to two Oracle Storage Drive Enclosure DE2-24 disk shelves in two chains

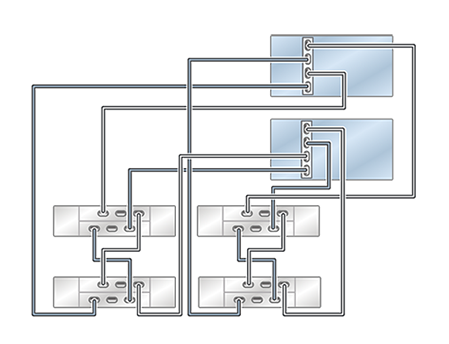

Clustered Oracle ZFS Storage ZS5-2 controllers with one HBA connected to four Oracle Storage Drive Enclosure DE2-24 disk shelves in two chains

Multiple disk shelves in a single chain
