Oracle ZFS Storage ZS5-4 Standalone to Oracle Storage Drive Enclosure DE2-24 Disk Shelves (3 HBAs)

The following figures show a subset of the supported configurations for Oracle ZFS Storage ZS5-4 standalone controllers with three HBAs. To cable the controller to the disk shelves, see Getting Started with Cabling.

Note:

For HBA port locations, see the hardware overview section for the Oracle ZFS Storage ZS5-4 controller in Oracle ZFS Storage Appliance Installation Guide, Release OS8.8.x.

Standalone Oracle ZFS Storage ZS5-4 controller with three HBAs connected to two Oracle Storage Drive Enclosure DE2-24 disk shelves in two chains

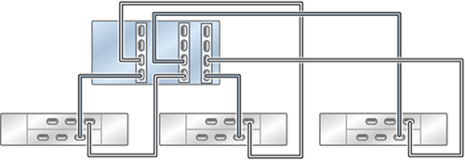

Standalone Oracle ZFS Storage ZS5-4 controller with three HBAs connected to three Oracle Storage Drive Enclosure DE2-24 disk shelves in three chains

Standalone Oracle ZFS Storage ZS5-4 controller with three HBAs connected to four Oracle Storage Drive Enclosure DE2-24 disk shelves in four chains

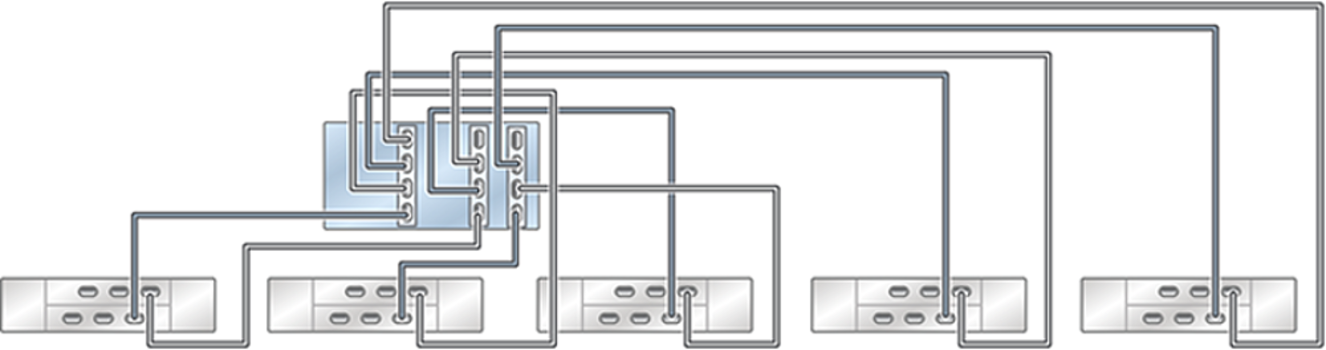

Standalone Oracle ZFS Storage ZS5-4 controller with three HBAs connected to five Oracle Storage Drive Enclosure DE2-24 disk shelves in five chains

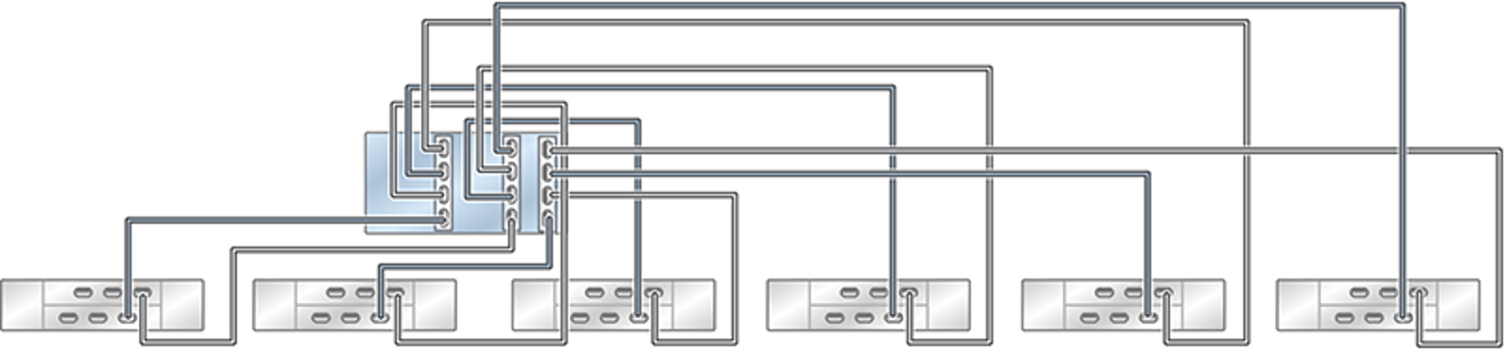

Standalone Oracle ZFS Storage ZS5-4 controller with three HBAs connected to six Oracle Storage Drive Enclosure DE2-24 disk shelves in six chains

Multiple disk shelves in a single chain
