Oracle ZFS Storage ZS5-4 Front Panel Components

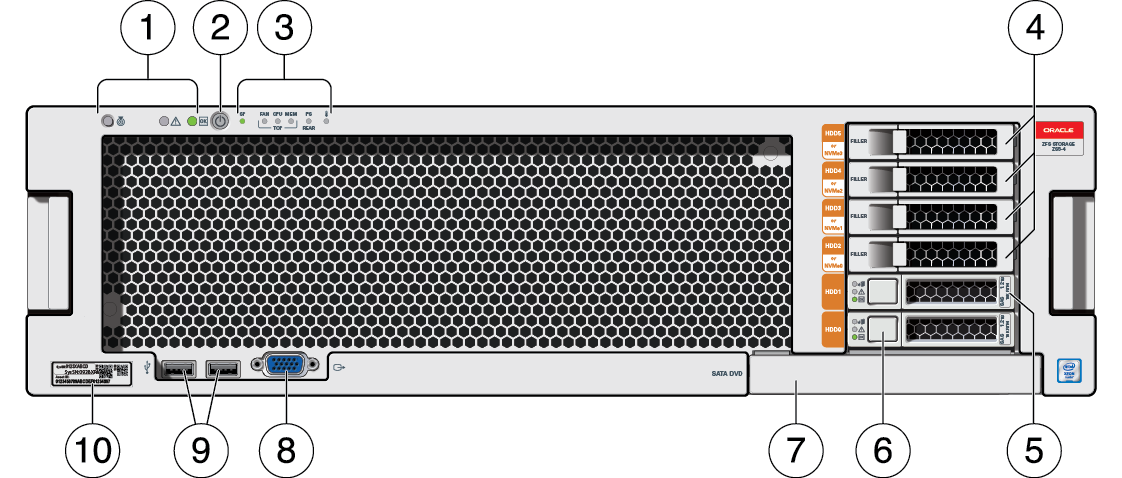

The Oracle ZFS Storage ZS5-4 controller drive slots and front panel components are shown in the following figure.


The image shows the Oracle ZFS Storage ZS5-4 front panel components.

1 LEDs (left to right)

  • Locator

  • Service action required

  • Power/OK

2 Power button

3 Alert indicators (left to right)

  • Service Processor (SP) OK/Fault

  • Fan/ CPU/ Memory service action required

  • Power Supply (PS) service action required

  • Over-temperature warning

4 Permanent HDD filler panels

5 System disk 1

6 System disk 0

7 DVD filler panel

8 DB-15 VGA port

9 Two USB 2.0 ports

10 RFID tag
