Oracle ZFS Storage ZS7-2 Rear Panel Components

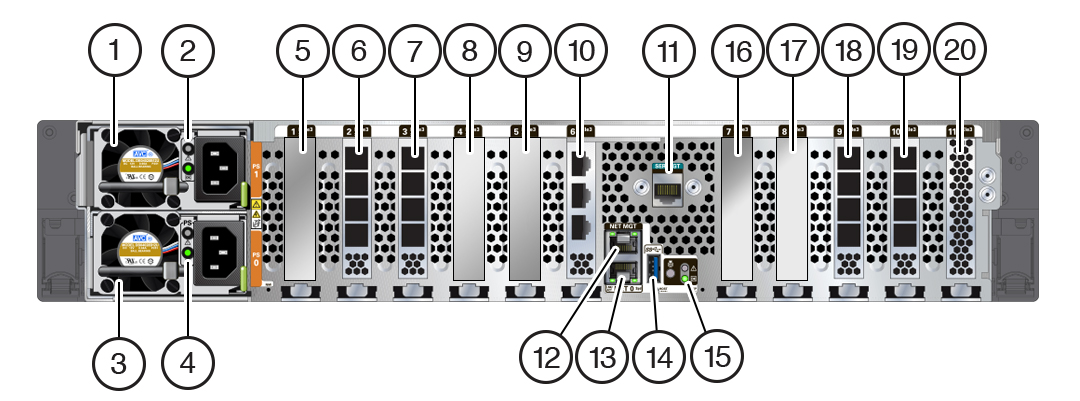

The Oracle ZFS Storage ZS7-2 controller PCIe slots and rear panel components are shown in the following figure.


The image shows the Oracle ZFS Storage ZS7-2 high-end model rear panel components.

1 Power Supply Unit (PSU) 1

2 PSU 1 status indicators (top to bottom):

  • Attention (amber)

  • Power/OK (green)

3 PSU 0

4 PSU 0 status indicators (top to bottom):

  • Attention (amber)

  • Power/OK (green)

5 Fifth PCIe option (slot 1)

6 External SAS-3 HBA (slot 2)

7 Slot 3:

  • High-end model: External SAS-3 HBA

  • Mid-range model: Filler panel; slot not available

8 First PCIe option (slot 4)

9 Third PCIe option (slot 5)

10 Cluster interface card (slot 6)

11 Serial management (SER MGT) RJ-45 serial port

12 Service Processor (SP) NET MGT port

13 Network (NET) 100/1000BASE-T RJ-45 Gigabit Ethernet (GbE) port: NET 0

14 USB 3.0 port

15 System status LEDs:

  • Locate (white) - left

  • Attention (amber) - right, top

  • Power/OK (green) - right, bottom

16 Fourth PCIe option (slot 7)

17 Second PCIe option (slot 8)

18 Slot 9:

  • High-end model: External SAS-3 HBA

  • Mid-range model: Filler panel; slot not available

19 External SAS-3 HBA (slot 10)

20 Internal SAS-3 HBA (slot 11)



For information about how to connect cables to form a cluster, see Connecting Cluster Cables.
