Sun ZFS Storage 7320 Rear Panel Components

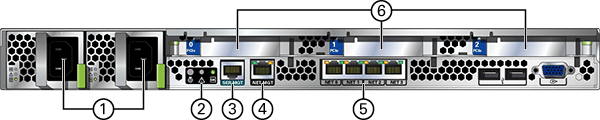

Following is an illustration of the Sun ZFS Storage 7320 storage controller rear panel. The Sun 375-3609 belongs in slot 2, cannot be installed in any other slots, and a second is not offered as an option.

For information about PCIe cards, see Sun ZFS Storage 7320 Configuration Options in Oracle ZFS Storage Appliance Customer Service Manual, Release OS8.8.x.


Graphic showing the components located at the front of the controller

1 Power supplies

2 SC summary status LEDs

3 Serial management port

4 Network management (NET MGT) 10/100 BASE-T Ethernet port

5 Ethernet ports

6 PCIe slots

The Sun ZFS Storage 7320 controller has the following ports:

  • Ethernet Ports - There are four RJ-45 Gigabit Ethernet ports (NET 0, NET 1, NET 2, NET 3) located on the motherboard that operate at 10/100/1000 Mbit/sec. These network interfaces must be configured before use.

  • Network Management Port - The network management connector (NET MGT) is an RJ-45 10/100 BASE-T Ethernet port and provides an alternate terminal interface to the SP console.

    Graphic showing the network management port

  • Serial Management Port - The serial management connector (SERIAL MGT) is an RJ-45 connector and is a terminal connection to the SP console.

    Graphic showing the serial management port
