Oracle Storage Drive Enclosure DE3-24
This section introduces the front and rear panel components of the Oracle Storage Drive Enclosure DE3-24P and Oracle Storage Drive Enclosure DE3-24C disk shelves.
Oracle Storage Drive Enclosure DE3-24P Disk Shelf
Oracle Storage Drive Enclosure DE3-24P is a 2U chassis that supports 24 2.5'' SAS-3 drives. The high-performance HDDs provide reliable storage, and the SSDs provide accelerated write operations. This disk shelf features dual, redundant I/O Modules (IOMs), and dual power supply with fan modules.

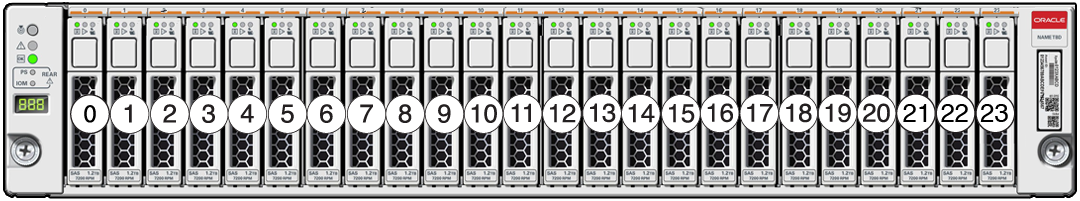

Oracle Storage Drive Enclosure DE3-24P Drive Locations (Front View)
Up to four write-optimized log SSDs are supported per disk shelf. Log devices should be populated in order of slots 20, 21, 22, and 23.
External Read Cache Devices - Read cache devices, installed in Oracle Storage Drive Enclosure DE3-24 disk shelves, are external to the controller and referred to as external second level adaptive replacement cache (EL2ARC). When a cluster takeover occurs, read cache remains persistent and sharable between controllers, enabling read performance to be sustained. For slot configuration details and minimum software requirements, see Disk Shelf Configurations.

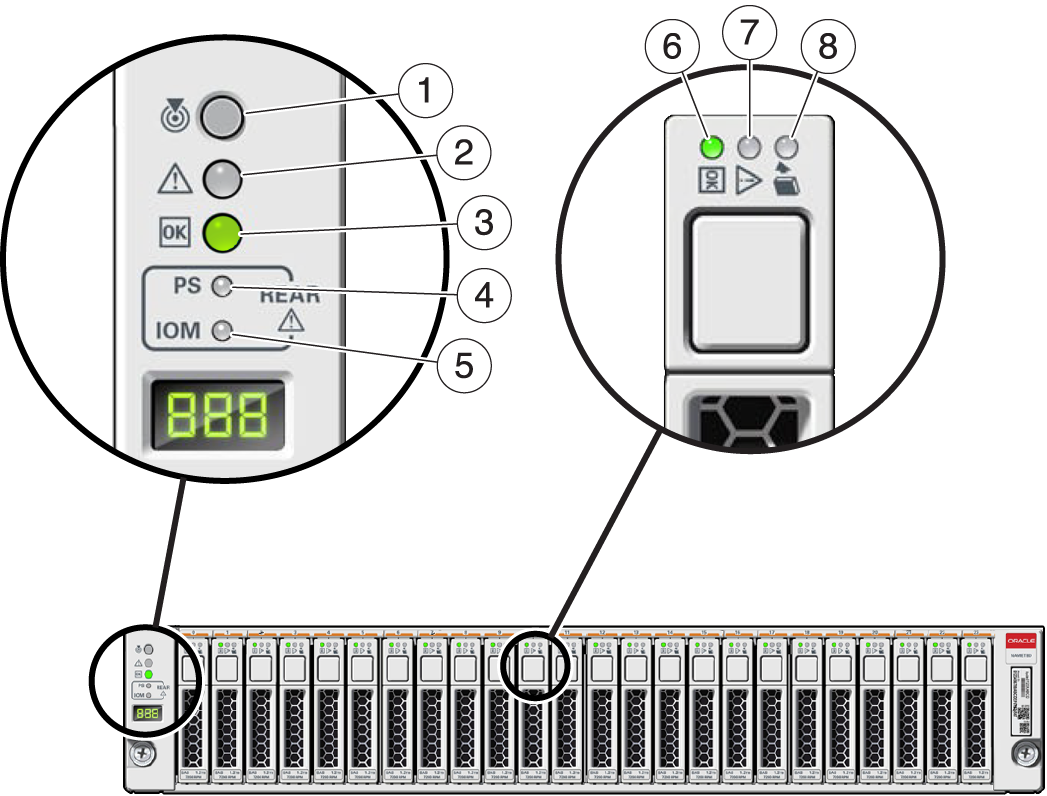

Oracle Storage Drive Enclosure DE3-24P Status Indicators (Front View)
|
1 Locate indicator |
2 Service required indicator |
3 OK indicator |
|
4 Power supply fault indicator |
5 SAS I/O Module fault indicator |
6 Power/Activity indicator |
|
7 Drive service required indicator |
8 Ready-to-remove indicator |

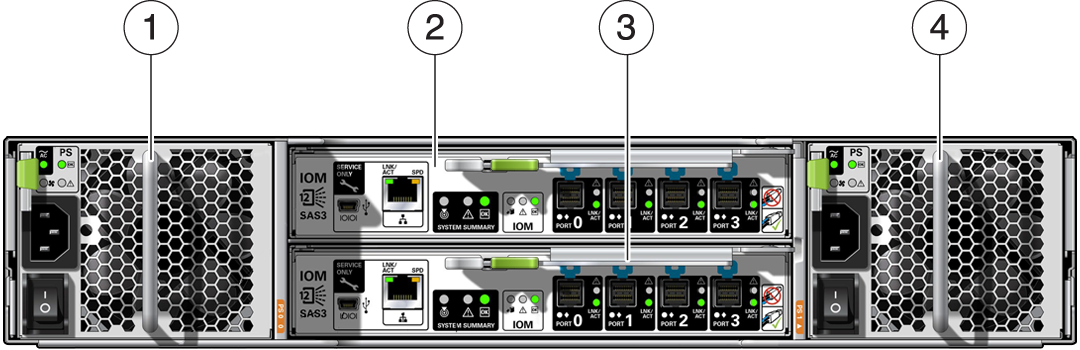

Oracle Storage Drive Enclosure DE3-24P Rear Panel
|
1 Power supply with fan module 0 |
2 I/O Module 1 |
|
3 I/O Module 0 |
4 Power supply with fan module 1 |
Oracle Storage Drive Enclosure DE3-24C Disk Shelf
Oracle Storage Drive Enclosure DE3-24C is a 4U chassis that supports 24 3.5" SAS-3 drives. The SSDs provide accelerated write operations, and the high-capacity HDDs provide reliable storage. This disk shelf features dual, redundant I/O Modules (IOMs), and dual power supply with fan modules.

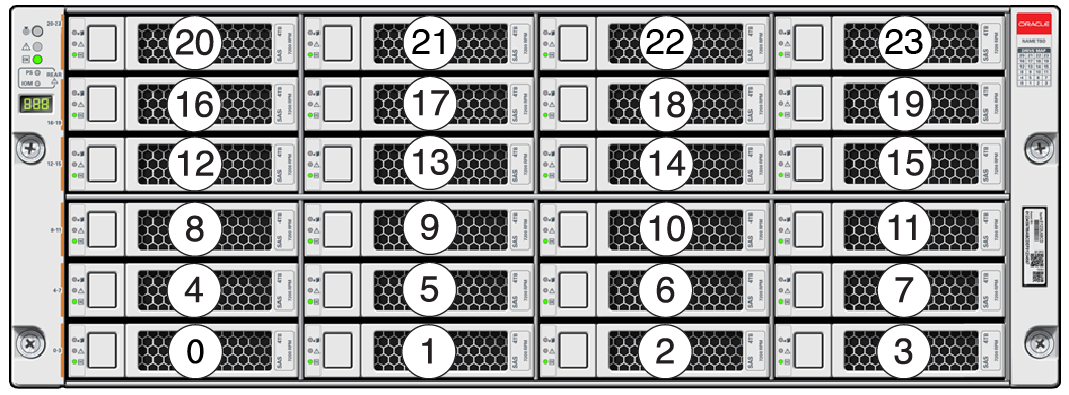

Oracle Storage Drive Enclosure DE3-24C Drive Locations (Front View)
Up to four write-optimized log SSDs are supported per disk shelf. Log devices should be populated in order of slots 20, 21, 22, and 23.
External Read Cache Devices - Read cache devices, installed in Oracle Storage Drive Enclosure DE3-24 disk shelves, are external to the controller and referred to as external second level adaptive replacement cache (EL2ARC). When a cluster takeover occurs, read cache remains persistent and sharable between controllers, enabling read performance to be sustained. For slot configuration details and minimum software requirements, see Disk Shelf Configurations.

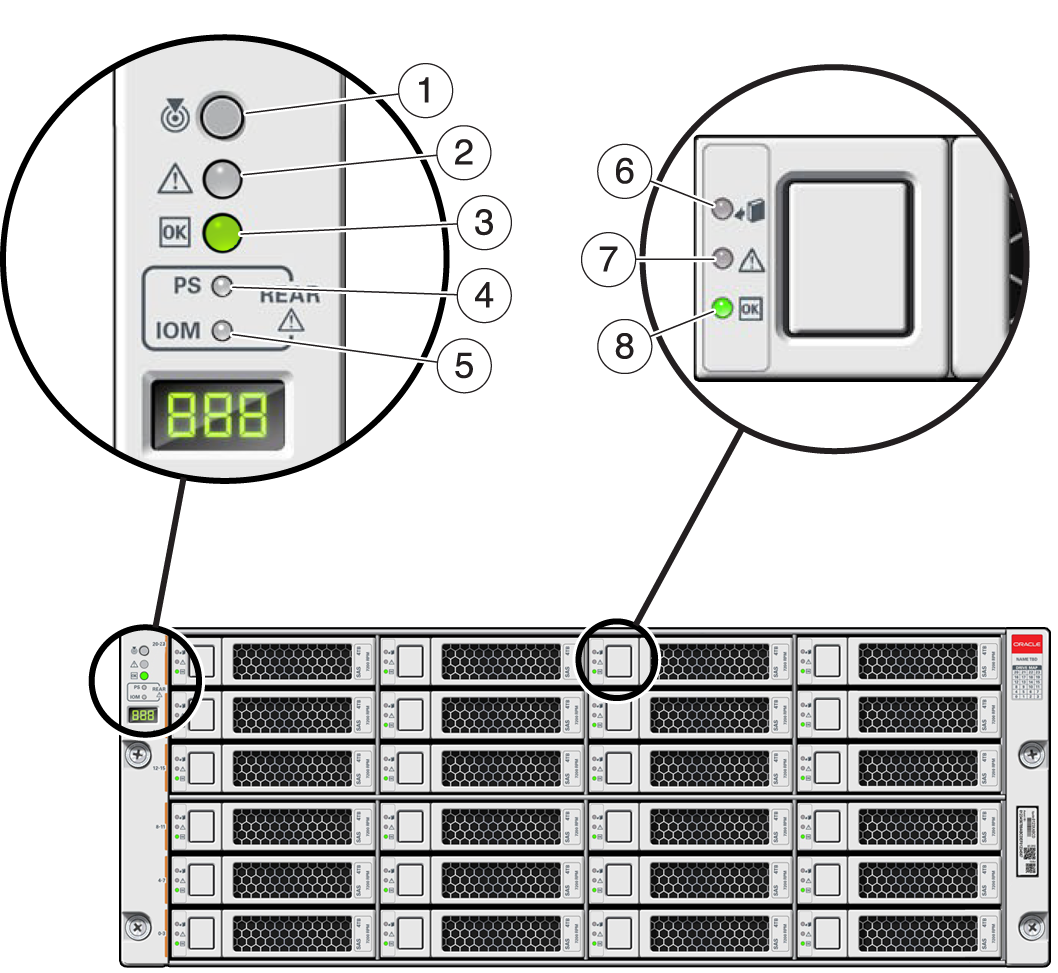

Oracle Storage Drive Enclosure DE3-24C Status Indicators (Front View)
|
1 Locate indicator |
2 Service required indicator |
3 OK indicator |
|
4 Power supply fault indicator |
5 SAS I/O Module fault indicator |
6 Ready-to-remove indicator |
|
7 Drive service required indicator |
8 Power/Activity indicator |

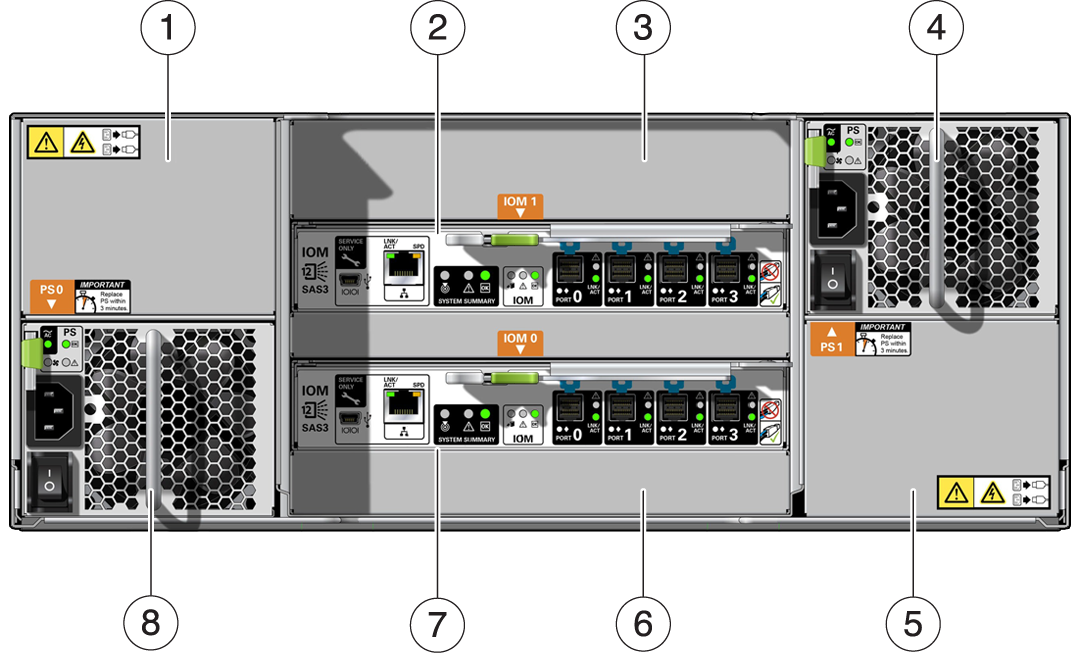

Oracle Storage Drive Enclosure DE3-24C Rear Panel
|
1 Power supply filler panel, slot 4 |
2 I/O Module 1 |
3 I/O Module filler panel |
|
4 Power supply with fan module 2 |
5 Power supply filler panel, slot 2 |
6 I/O Module filler panel |
|
7 I/O Module 0 |
8 Power supply with fan module 1 |
Note:

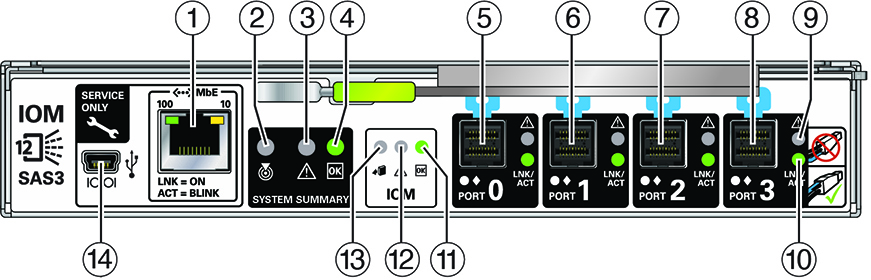

It is especially important that power supplies and their filler panels are in the correct slots.Oracle Storage Drive Enclosure DE3-24 I/O Module Indicators
|
1 For Oracle service only |
2 Locate indicator |
3 Service required indicator |
|
4 OK indicator |
5 SAS-3 Port 0 |
6 SAS-3 Port 1 |
|
7 SAS-3 Port 2 |
8 SAS-3 Port 3 |
9 Host port service required indicator |
|
10 Host port activity indicator |
11 Power/Activity indicator |
12 I/O Module service required indicator |
|
13 Ready-to-remove indicator |
14 For Oracle service only |
The Oracle Storage Drive Enclosure DE3-24C and Oracle Storage Drive Enclosure DE3-24P disk shelves use the same I/O Module.

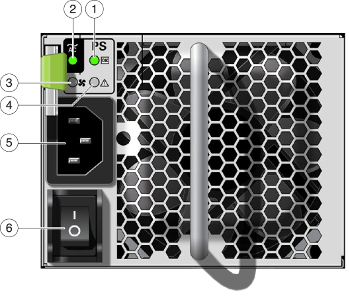

Oracle Storage Drive Enclosure DE3-24 Power Supply Indicators
|
1 AC input OK indicator |
2 Power supply OK indicator |
3 Fan fail indicator |
|
4 Service required indicator |
5 Universal power input connector |
6 Power on/off switch |
The Oracle Storage Drive Enclosure DE3-24C and Oracle Storage Drive Enclosure DE3-24P disk shelves use the same power supply.
