Oracle ZFS Storage ZS11-2 Front and Rear Panel Components

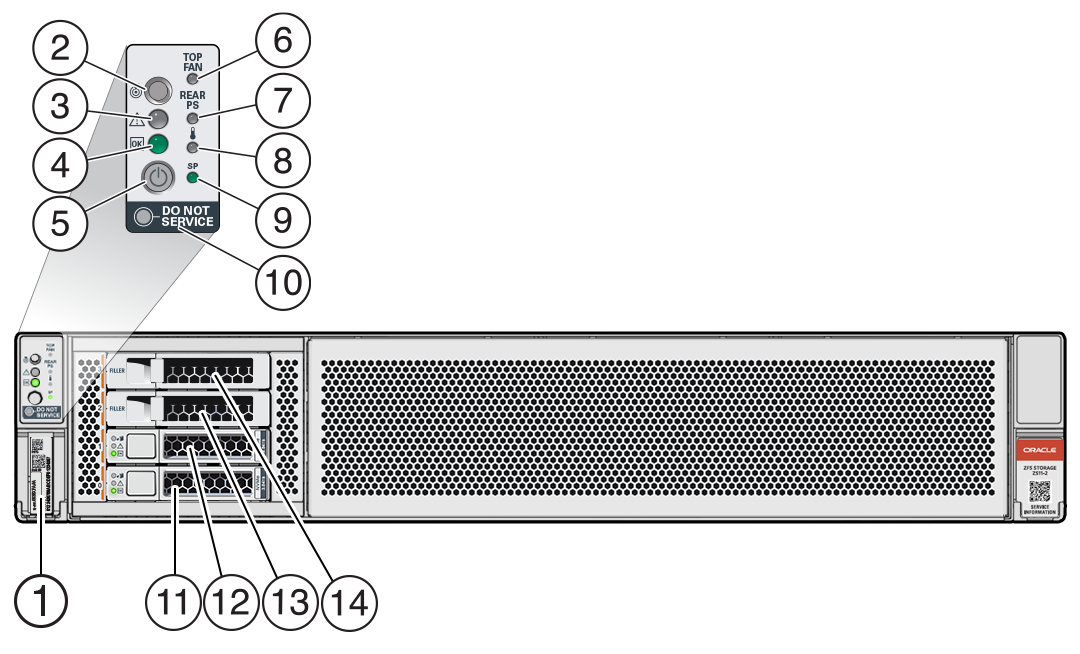

Oracle ZFS Storage ZS11-2 Front Panel Components - The Oracle ZFS Storage ZS11-2 controller drive slots and front panel components are shown in the following figure.


Figure showing the Oracle ZFS Storage ZS11-2 front panel components.

1 RFID tag

2 System status LED: Locator (white)

3 System status LED: Service Action Required (amber)

4 System status LED: Power/OK (green)

5 Power button

6 Fan service action required (amber)

7 Power Supply (PS) service action required (amber)

8 Over-temperature warning (amber)

9 Service Processor (SP) OK (green)

10 Do Not Service indicator

11 System disk 0

12 System disk 1

13 Filler panel

14 Filler panel

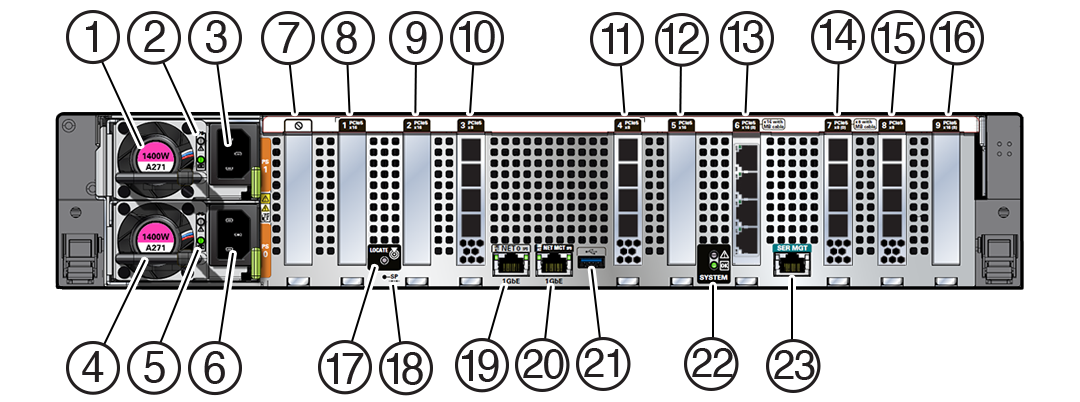

Oracle ZFS Storage ZS11-2 Rear Panel Components - The Oracle ZFS Storage ZS11-2 controller PCIe slots and rear panel components are shown in the following figure (Oracle ZFS Storage ZS11-2 high-end model shown).


The image shows the Oracle ZFS Storage ZS11-2 high-end model rear panel components.

1 Power Supply Unit (PSU) 1

2 PSU 1 status indicators (top to bottom):

  • Attention (amber)

  • Power/OK (green)

3 PSU 1 AC power inlet (AC1)

4 Power Supply Unit (PSU) 0

5 PSU 0 status indicators (top to bottom):

  • Attention (amber)

  • Power/OK (green)

6 PSU 0 AC power inlet (AC0)

7 Not available

8 Sixth PCIe option (slot 1)

9 Second PCIe option (slot 2)

10 External SAS-3 HBA (slot 3)

11 Slot 4: One of the following options:

  • External SAS-3 HBA

  • Fourth PCIe option

12 Third PCIe option (slot 5)

13 Ethernet cluster interface card (slot 6)

14 Slot 7: One of the following options:

  • External SAS-3 HBA

  • Fifth PCIe option

15 External SAS-3 HBA (slot 8)

16 First PCIe option (slot 9)

17 LOCATE: System locate LED

18 SP: Reset service processor (SP)

19 NET 0: Network (NET 0) 1GbE RJ-45 100/1000BASE-T port

20 NET MGT: Oracle Integrated Lights Out Manager (ILOM) service processor (SP) network management (NET MGT) 1GbE RJ-45 100/1000BASE-T port

21 USB 3.1 port

22 System status LEDs (top to bottom):

  • Attention (amber)

  • Power/OK (green)

23 SER MGT: Serial management (SER MGT) RJ-45 serial port



Cluster Interface Card Compatibility - Oracle ZFS Storage ZS11-2 and ZS9-2 controllers employ Ethernet-based clustering via two Ethernet ports in the Oracle Quad Port 10GBASE-T Ethernet Adapter. All other controller cluster interface cards use serial-based clustering via two serial cluster links, and provide Ethernet connectivity via one link. Therefore, the Oracle ZFS Storage ZS11-2 and ZS9-2 cluster interface card is not compatible with older controller models.

For information about how to connect cables to form a cluster, see Connecting Cluster Cables in Oracle ZFS Storage Appliance Cabling Guide, Release OS8.8.x.
