Oracle ZFS Storage ZS11-2 Internal Components

The major components of the Oracle ZFS Storage ZS11-2 controller are shown in the following figure and identified in the legend.

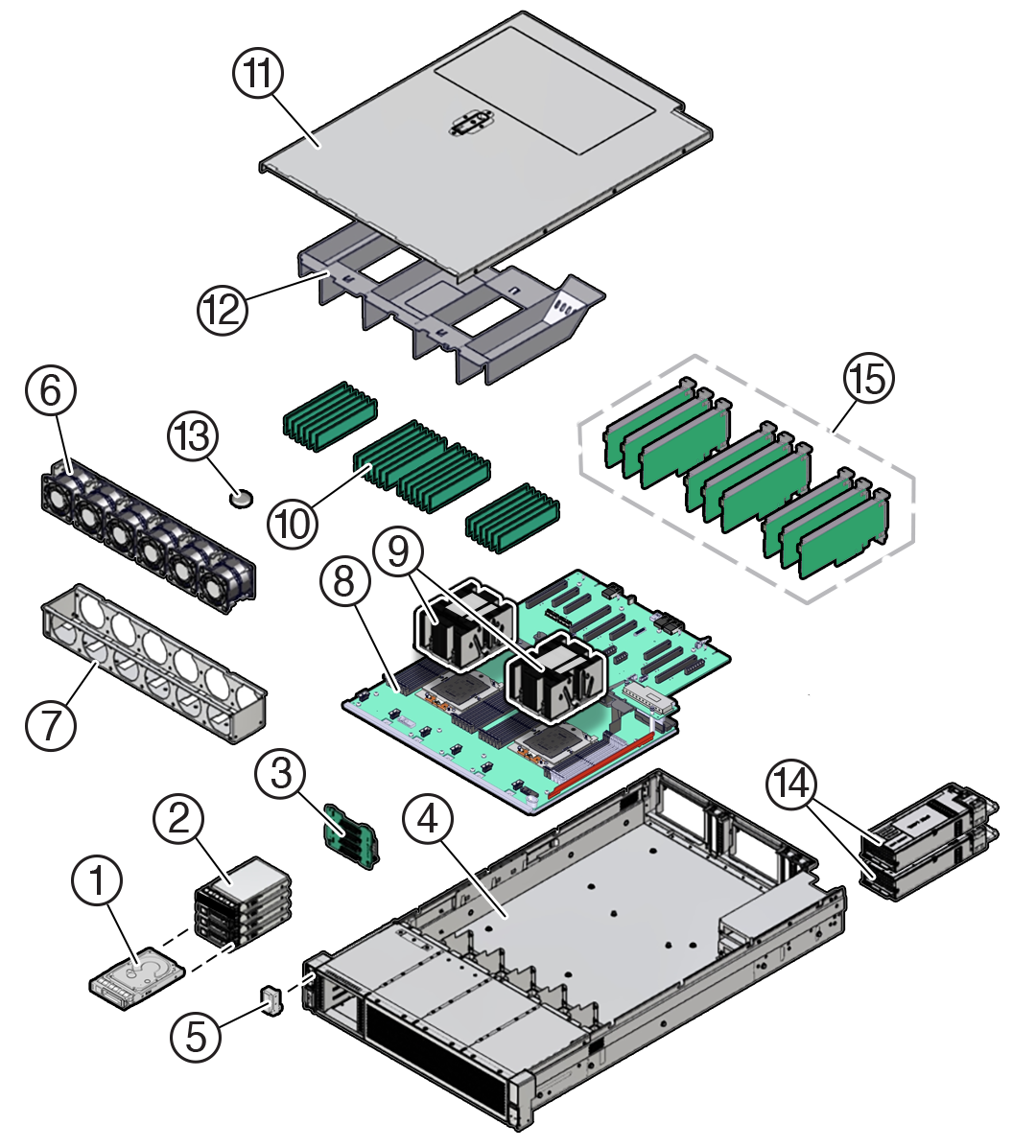

Figure showing exploded view of the system components.

1 2.5” U.2 NVMe system disk

9 Processors and heatsinks

2 Two system disks, two filler panels

10 Memory DIMMs

3 Disk backplane

11 Top cover

4 System chassis

12 Air baffle

5 Front LED indicator module and temperature sensor

13 System battery

6 Fan modules

14 Power supplies

7 Fan tray

15 PCIe cards

8 Motherboard assembly
