Oracle ZFS Storage ZS5-2 Cable Management Arm

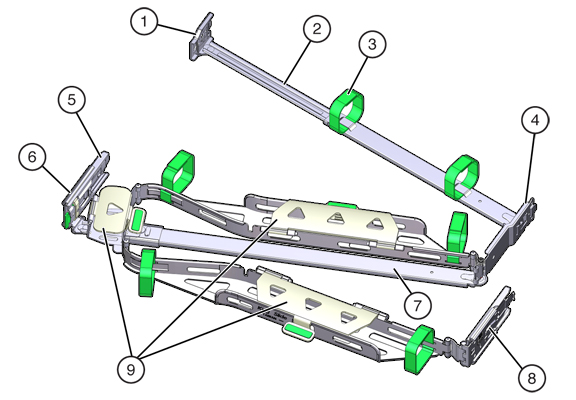

The following figure identifies the components of the Oracle ZFS Storage ZS5-2 cable management arm (CMA). See the CMA installation instructions as described in Installing an Oracle ZFS Storage ZS5-2 Cable Management Arm in Oracle ZFS Storage Appliance Installation Guide, Release OS8.8.x.


Graphic showing Oracle ZFS Storage ZS5-2 controller cable management arm

1 Connector A

6 Connector D

2 Front slide bar

7 Slide-rail latching bracket (used with connector D)

3 Velcro straps (6)

8 Rear slide bar

4 Connector B

9 Cable covers

5 Connector C
