Oracle ZFS Storage ZS5-4 Front and Rear Panel Components

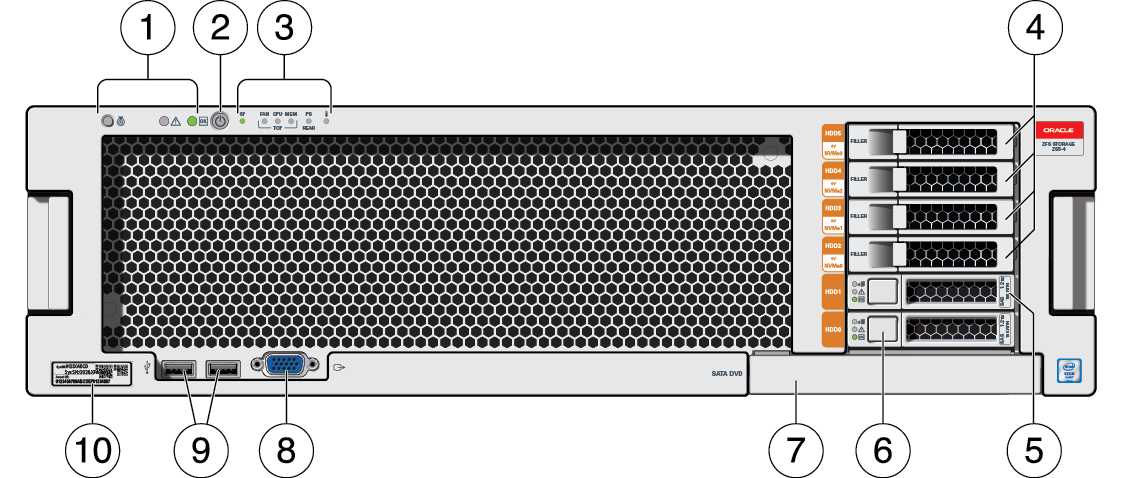

Oracle ZFS Storage ZS5-4 Front Panel Components - The Oracle ZFS Storage ZS5-4 controller drive slots and front panel components are shown in the following figure.
![The image shows the Oracle ZFS Storage ZS5-4 front panel components. The image shows the Oracle ZFS Storage ZS5-4 front panel components.](img/g5555-zs5_front_panel.png)
1 LEDs (left to right)
|
2 Power button |
3 Alert indicators (left to right)
|
4 Permanent HDD filler panels |
5 System disk 1 |
6 System disk 0 |
7 DVD filler panel |
8 DB-15 VGA port |
9 Two USB 2.0 ports |
10 RFID tag |

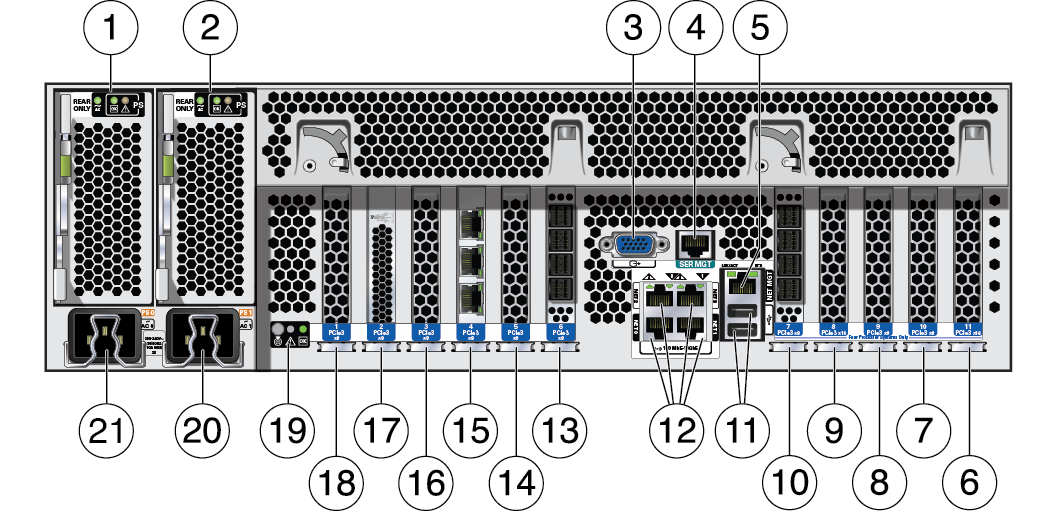

Oracle ZFS Storage ZS5-4 Rear Panel Components - The Oracle ZFS Storage ZS5-4 controller PCIe slots and rear panel components are shown in the following figure.
![The image shows the Oracle ZFS Storage ZS5-4 rear panel components. The image shows the Oracle ZFS Storage ZS5-4 rear panel components.](img/g5556-zs5_rear_panel.png)
1 Power Supply Unit (PSU) 0 |
2 PSU 1 |
3 DB-15 VGA port |
4 SER MGT port |
5 Service Processor (SP) NET MGT port |
6 First PCle (slot 11) |
7 Fifth PCIe (slot 10) |
8 Third 4x4 SAS HBA or seventh PCIe (slot 9) |
9 Second PCIe (slot 8) |
10 4X4 SAS HBA (slot 7) |
11 Two USB 2.0 ports |
12 Network (NET) 10 Gb Ethernet ports, NET 0 - NET 3 |
13 4X4 SAS HBA (slot 6) |
14 Third PCIe (slot 5) |
15 Cluster interface card (slot 4) |
16 Fourth 4X4 SAS HBA or sixth PCIe (slot 3) |
17 Internal SAS HBA (slot 2) |
18 Fourth PCIe (slot 1) |
19 System status LEDs (left to right)
|
20 PSU 1 AC inlet |
21 PSU 0 AC inlet |
Cluster Interface Card Compatibility - The Oracle ZFS Storage ZS5-4 controller contains a Version 3 cluster interface card, which is incompatible with Version 2.
For information about how to connect cables to form a cluster, see Connecting Cluster Cables in Oracle ZFS Storage Appliance Cabling Guide, Release OS8.8.x.
Ethernet Ports
The Oracle ZFS Storage ZS5-4 controller has four RJ-45 10-Gigabit Ethernet (10GbE) network connectors, labeled NET0, NET1, NET2, NET3 in a quadrant (where NET0 and NET1 are bottom left to right, NET2 is above NET0 and NET3 is above NET1) on the rear panel. The ports operate at 100 Mbits/sec, 1000 Mbit/sec, or 10-Gbits/sec. Use these ports to connect the appliance to the network.
There are two status indicators (LEDs) on each port. These indicators are visible from the rear of the controller.
Table 6-1 Gigabit Ethernet Port Status Indicators
Status Indicator Name | Location | Color | State and Meaning |
---|---|---|---|
Activity |
Top left |
Green |
ON – No link OFF– No activity FLASHING – Packet activity |
Link speed |
Top right |
Bicolored: Amber/Green |
OFF – 100BASE-T link Amber ON – 1000BASE-T link Green ON – 10GBASE-T link |
Network Management Port
The Oracle ZFS Storage ZS5-4 controller has one 10/100/1000BASE-T Ethernet management domain interface, labeled NET MGT. There are two status indicators (LEDs) on this port. These indicators are visible from the rear of the controller. The service processor NET MGT port is the optional connection to the Oracle ILOM service processor. The NET MGT port is configured by default to use Dynamic Host Configuration Protocol (DHCP). The service processor NET MGT port uses an RJ-45 cable for a 10/100/1000BASE-T connection.
Table 6-2 Network Management Port Status Indicators
Status Indicator Name | Location | Color | State and Meaning |
---|---|---|---|
Activity |
Top left |
Amber |
ON – Link up OFF – No link or down link FLASHING – Packet activity |
Link speed |
Top right |
Green |
Green ON – 1000BASE-T link OFF – 10/100BASE-T link |
Serial Management Port
The Oracle ZFS Storage ZS5-4 service processor SER MGT port uses an RJ-45 cable and is the default connection to the Oracle ILOM service processor. This port supports local connections to the controller and only recognizes Oracle ILOM command-line interface (CLI) commands. Typically you connect a terminal or terminal emulator to this port.
Note:
This port does not support network connections.
