Oracle ZFS Storage ZS7-2 Front and Rear Panel Components
Oracle ZFS Storage ZS7-2 Front Panel Components - The Oracle ZFS Storage ZS7-2 controller drive slots and front panel components are shown in the following figure.
|
1 RFID tag |
2 System status LED: Locator (white) |
3 System status LED: Service Action Required (amber) |
|
4 System status LED: Power/OK (green) |
5 Power button |
6 Fan service action required (amber) |
|
7 Power Supply (PS) service action required (amber) |
8 Over-temperature warning (amber) |
9 Service Processor (SP) OK (green) |
|
10 Do Not Service indicator |
11 System disk 0 |
12 System disk 1 |
|
13 Filler panel |
14 Filler panel |
15 Filler panel |
|
16 Filler panel |
17 Filler panel |
18 Filler panel |
|
19 Filler panel |
20 Filler panel |
21 Filler panel |
|
22 Filler panel |

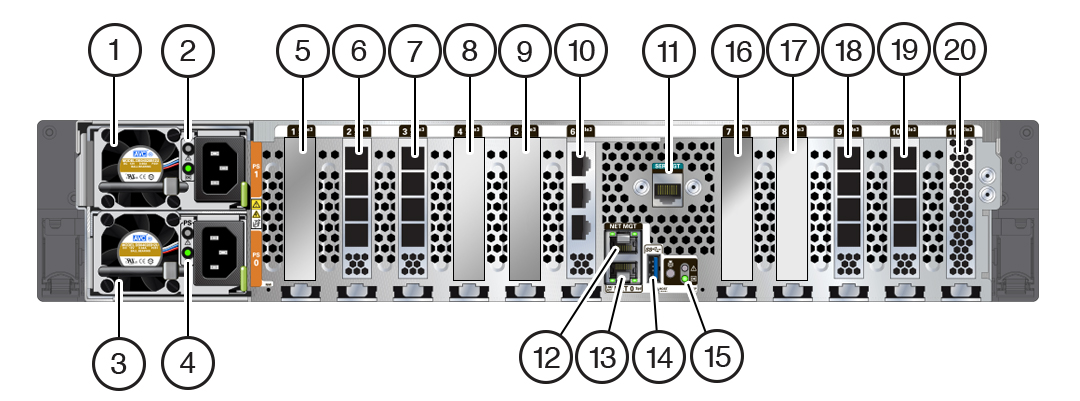

Oracle ZFS Storage ZS7-2 Rear Panel Components - The Oracle ZFS Storage ZS7-2 controller PCIe slots and rear panel components are shown in the following figure.
|
1 Power Supply (PS) Unit 1 (PS 1) |
2 PS 1 status indicators (top to bottom):
|
3 PS 0 |
|
4 PS 0 status indicators (top to bottom):
|
5 Fifth PCIe option (slot 1) |
6 External SAS-3 HBA (slot 2) |
|
7 Slot 3:
|
8 First PCIe option (slot 4) |
9 Third PCIe option (slot 5) |
|
10 Cluster interface card (slot 6) |
11 Serial management (SER MGT) RJ-45 serial port |
12 Service Processor (SP) NET MGT port |
|
13 Network (NET) 100/1000BASE-T RJ-45 Gigabit Ethernet (GbE) port: NET 0 |
14 USB 3.0 port |
15 System status LEDs:
|
|
16 Fourth PCIe option (slot 7) |
17 Second PCIe option (slot 8) |
18 Slot 9:
|
|
19 External SAS-3 HBA (slot 10) |
20 Internal SAS-3 HBA (slot 11) |
Cluster Interface Card Compatibility - The Oracle ZFS Storage ZS7-2 controller contains a Version 3 cluster interface card, which is incompatible with Version 2.
For information about how to connect cables to form a cluster, see Connecting Cluster Cables in Oracle ZFS Storage Appliance Cabling Guide, Release OS8.8.x.
Ethernet Port
The Oracle ZFS Storage ZS7-2 controller has one RJ-45 100/1000BASE-T Gigabit Ethernet (GbE) network connector, labeled NET0, on the rear panel. The port operates at 100 Mbits/sec or 1000 Mbits/sec. Use this port to connect the appliance to the network.
There are two status indicators (LEDs) on this port. These indicators are visible from the rear of the controller.
Table 5-1 Gigabit Ethernet Port Status Indicators
| Status Indicator Name | Location | Color | State and Meaning |
|---|---|---|---|
|
Activity |
Bottom left |
Green |
ON – Link up OFF – No link FLASHING – Packet activity |
|
Link speed |
Bottom right |
Green |
OFF – 100BASE-T link (if link up) ON – 1000BASE-T link |
Network Management Port
The Oracle ZFS Storage ZS7-2 controller has one 10/100/1000BASE-T Ethernet management domain interface, labeled NET MGT. There are two status indicators (LEDs) on this port. These indicators are visible from the rear of the controller. The service processor NET MGT port is the optional connection to the Oracle ILOM service processor. The NET MGT port is configured by default to use Dynamic Host Configuration Protocol (DHCP). The service processor NET MGT port uses an RJ-45 cable for a 10/100/1000BASE-T connection.
Table 5-2 Network Management Port Status Indicators
| Status Indicator Name | Location | Color | State and Meaning |
|---|---|---|---|
|
Activity |
Top left |
Green |
ON – Link up OFF – No link FLASHING – Packet activity |
|
Link speed |
Top right |
Green |
ON – 1000BASE-T link OFF – 10/100BASE-T link |
Serial Management Port
The Oracle ZFS Storage ZS7-2 service processor SER MGT port uses an RJ-45 cable and is the default connection to the Oracle ILOM service processor. This port supports local connections to the controller and only recognizes Oracle ILOM command-line interface (CLI) commands. Typically you connect a terminal or terminal emulator to this port.
Note:
This port does not support network connections.4x4 SAS HBA Ports
The 4x4 SAS HBAs are installed in PCIe slots 2, 3, 9, and 10 for the Oracle ZFS Storage ZS7-2 high-end model, and slots 2 and 10 for the Oracle ZFS Storage ZS7-2 mid-range model. The HBAs provide connectivity to external disk shelves. The HBA logical ports are numbered 0-3, bottom to top, as shown in the following figure.
