Oracle ZFS Storage ZS7-2 Internal Components

The major components of the Oracle ZFS Storage ZS7-2 controller are shown in the following figure and identified in the legend.


Figure showing exploded view of the controller components.

1 Two system disks, ten filler panels

7 Motherboard assembly

13 System battery

2 Disk backplane

8 Processors and heatsinks

14 N/A

3 System chassis

9 N/A

15 Power supplies

4 Front LED indicator module and temperature sensor

10 Top cover

16 Air baffle

5 Fan modules

11 Oracle Storage 12 Gb SAS PCIe HBA, internal

17 DIMMs

6 Fan tray

12 PCIe cards

Oracle ZFS Storage ZS7-2 Storage Drive

This section shows the location and explains the functions of the storage drive status indicators.

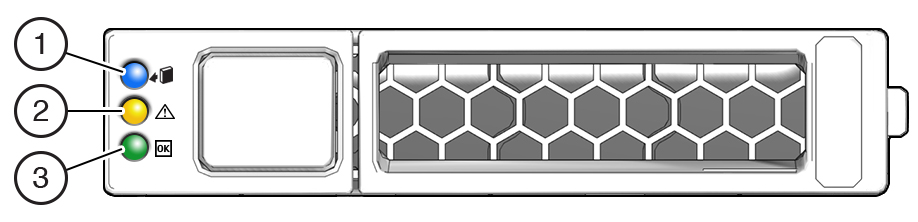

An illustration showing the storage drive front panel.

1 Ready to Remove (blue)

2 Service Action Required (amber)

3 OK/Activity (green)

Oracle ZFS Storage ZS7-2 Fan Module

The four fan modules are located towards the front of the Oracle ZFS Storage ZS7-2 controller between the CPUs and the drive trays. The fan modules are designated from left to right. As pictured in the following illustration, the four fan modules are designated as: FMO, FM1, FM2, and FM3.


Figure showing the location of fan modules and associated status indicators.
LED Color and State Meaning

Amber – The fan module is faulty. The front Top Fan LED and the front and back panel Fault-Service Required LEDs are also lit if the system detects a fan module fault.

Not Illuminated – The fan module is operational (OK).

Oracle ZFS Storage ZS7-2 Power Supply

The two power supplies are located on the right side of the controller (from the front of the controller) and are designated from top to bottom. The power supplies are accessible from the back of the controller. As indicated in the following drawing, the top designation is PS 1 and the bottom designation is PS 0.


Figure identifying PS0, PS1, and their latches.

1 Power supply 0

2 Power supply 1

The two power supplies ensure redundancy by allowing the controller to operate when one of the power supplies fails. However, when the controller is operating on one power supply, redundancy no longer exists, and the risk for an unexpected shut down and a loss of data is high. When a power supply or any component that is part of a redundant configuration fails, replace it immediately.

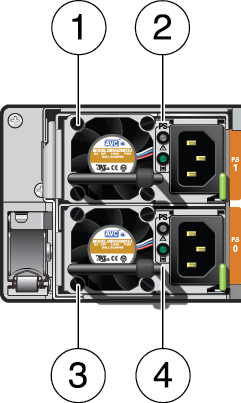

An illustration showing the power supply status indicators.

1 Power supply (PS) 1

3 PS 0

2 PS 1 status indicators: Fault-Service Required LED: amber; AC power input and DC power output OK LED: green

4 PS 0 status indicators: Fault-Service Required LED: amber; AC power input and DC power output OK LED: green

Oracle ZFS Storage ZS7-2 DIMM

The physical layout of the DIMMs and processor(s) is shown in the following figure. When viewing the controller from the front, processor 0 (P0) is on the left.

Each processor, P0 and P1, has 12 DIMM slots organized into 6 memory channels. Each memory channel contains two DIMM slots: a black DIMM slot (channel slot 0) and a white DIMM slot (channel slot 1).


Figure showing the DIMM and processor layout.

As shown in the following figure, DIMM slots are labeled D0 through D5 to the left of each processor, and D6 through D11 to the right of each processor. For each processor, the black slots are: D0, D2, D4, D7, D9, and D11. Similarly, for each processor, the white slots are: D1, D3, D5, D6, D8, and D10.


Figure showing the DIMM slot numbers for each processor.

The following table describes the supported memory configurations for Oracle ZFS Storage ZS7-2. The mid-range model supports 8 or 16 DIMMs, and the high-end model supports 24 DIMMs. All DIMMs are 64 GB. The DIMM locations in the table apply to both P0 and P1 processors; for example, P0/D2,P0/D4,P0/D7,P0/D9 and P1/D2,P1/D4,P1/D7,P1/D9.

Configuration Total DIMMs Installed DIMM Slots Populated DRAM Capacity Description

Oracle Storage ZS7-2 mid-range model, low-memory configuration

8

D2, D4, D7, D9

512 GB

Black sockets are populated

Oracle Storage ZS7-2 mid-range model, high-memory configuration

16

D2, D4, D7, D9

D3, D5, D6, D8

1024 GB

Black sockets are populated

White sockets are populated

Oracle Storage ZS7-2 high-end model

24

D0, D2, D4, D7, D9, D11

D1, D3, D5, D6, D8, D10

1536 GB

Black sockets are populated

White sockets are populated

Oracle ZFS Storage ZS7-2 Storage Drives

Only two of the storage drive slots are used for system boot purposes, which include redundant mirrored drives. These are used and designated consecutively from left, bottom (System Disk 0) to right (System Disk 1). All other storage drive slots include filler panels as is indicated in the following drawing. Drive slots are numbered from left to right, and from bottom to top.

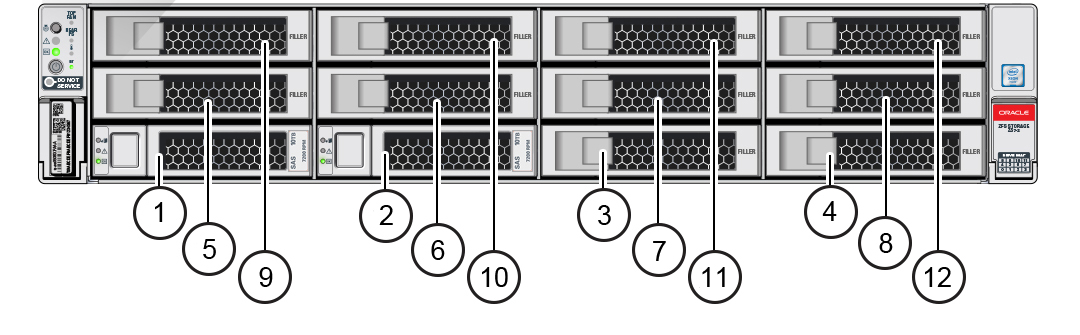

The image shows the Oracle ZFS Storage ZS7-2 front panel components.

1 System Disk 0

5 Filler panel

9 Filler panel

2 System Disk 1

6 Filler panel

10 Filler panel

3 Filler panel

7 Filler panel

11 Filler panel

4 Filler panel

8 Filler panel

12 Filler panel
