Oracle ZFS Storage ZS9-2 Front and Rear Panel Components
Oracle ZFS Storage ZS9-2 Front Panel Components - The Oracle ZFS Storage ZS9-2 controller drive slots and front panel components are shown in the following figure.
|
1 RFID tag |
2 System status LED: Locator (white) |
3 System status LED: Service Action Required (amber) |
|
4 System status LED: Power/OK (green) |
5 Power button |
6 Fan service action required (amber) |
|
7 Power Supply (PS) service action required (amber) |
8 Over-temperature warning (amber) |
9 Service Processor (SP) OK (green) |
|
10 Do Not Service indicator |
11 System disk 0 |
12 System disk 1 |
|
13 Filler panel |
14 Filler panel |
15 Filler panel |
|
16 Filler panel |
17 Filler panel |
18 Filler panel |
|
19 Filler panel |
20 Filler panel |
21 Filler panel |
|
22 Filler panel |

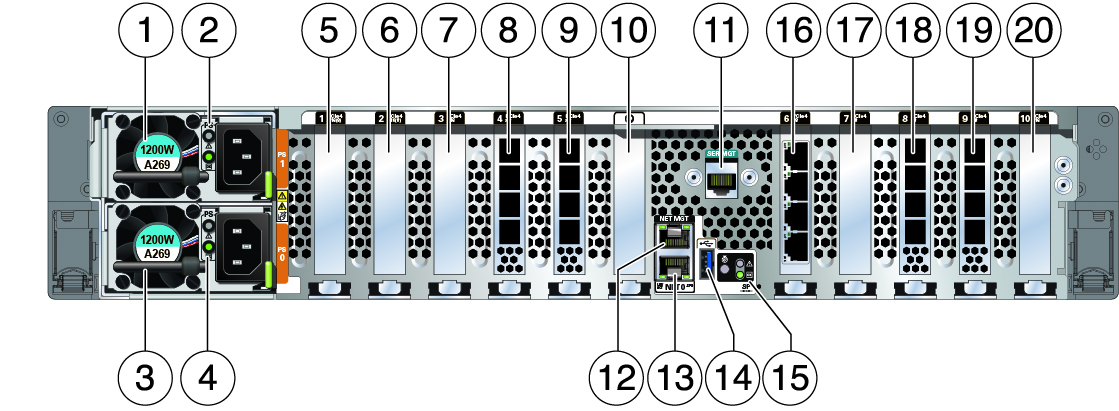

Oracle ZFS Storage ZS9-2 Rear Panel Components - The Oracle ZFS Storage ZS9-2 controller PCIe slots and rear panel components are shown in the following figure (Oracle ZFS Storage ZS9-2 high-end model shown).
|
1 Power Supply Unit (PSU) 1 |
2 PSU 1 status indicators (top to bottom):
|
3 PSU 0 |
|
4 PSU 0 status indicators (top to bottom):
|
5 Second PCIe option (slot 1) |
6 Third PCIe option (slot 2) |
|
7 Fifth PCIe option (slot 3) |
8 External SAS-3 HBA (slot 4) |
9 Slot 5:
|
|
10 Not available |
11 Serial management (SER MGT) RJ-45 serial port |
12 Service Processor (SP) NET MGT port |
|
13 Network (NET) 100/1000BASE-T RJ-45 Gigabit Ethernet (GbE) port: NET 0 |
14 USB 3.0 port |
15 System status LEDs:
|
|
16 Cluster interface Ethernet adapter (slot 6) |
17 First PCIe option (slot 7) |
18 Slot 8:
|
|
19 External SAS-3 HBA (slot 9) |
20 Fourth PCIe option (slot 10) |
Cluster Interface Card Compatibility - Oracle ZFS Storage ZS9-2 controllers employ Ethernet-based clustering via two Ethernet ports in the Oracle Quad Port 10GBASE-T Ethernet Adapter. All other controller cluster interface cards use serial-based clustering via two serial cluster links, and provide Ethernet connectivity via one link. Therefore, the Oracle ZFS Storage ZS9-2 cluster interface card is not compatible with older controller models.
For information about how to connect cables to form a cluster, see Connecting Cluster Cables in Oracle ZFS Storage Appliance Cabling Guide, Release OS8.8.x.
Ethernet Port
The Oracle ZFS Storage ZS9-2 controller has one RJ-45 100/1000BASE-T Gigabit Ethernet (GbE) network connector, labeled NET0, on the rear panel. The port operates at 100 Mbits/sec or 1000 Mbits/sec. Use this port to connect the appliance to the network.
There are two status indicators (LEDs) on this port. These indicators are visible from the rear of the controller.
Table 4-1 Gigabit Ethernet Port Status Indicators
| Status Indicator Name | Location | Color | State and Meaning |
|---|---|---|---|
|
Activity |
Bottom left |
Green |
ON – Link up OFF – No link FLASHING – Packet activity |
|
Link speed |
Bottom right |
Green |
OFF – 100BASE-T link (if link up) ON – 1000BASE-T link |
Network Management Port
The Oracle ZFS Storage ZS9-2 controller has one 10/100/1000BASE-T Ethernet management domain interface, labeled NET MGT. There are two status indicators (LEDs) on this port. These indicators are visible from the rear of the controller. The service processor NET MGT port is the optional connection to the Oracle ILOM service processor. The NET MGT port is configured by default to use Dynamic Host Configuration Protocol (DHCP). The service processor NET MGT port uses an RJ-45 cable for a 10/100/1000BASE-T connection.
Table 4-2 Network Management Port Status Indicators
| Status Indicator Name | Location | Color | State and Meaning |
|---|---|---|---|
|
Activity |
Top left |
Green |
ON – Link up OFF – No link FLASHING – Packet activity |
|
Link speed |
Top right |
Green |
ON – 1000BASE-T link OFF – 10/100BASE-T link |
Serial Management Port
The service processor SER MGT port uses an RJ-45 cable and is the default connection to the Oracle ILOM service processor. This port supports local connections to the controller and only recognizes Oracle ILOM command-line interface (CLI) commands. Typically you connect a terminal or terminal emulator to this port.
Note:
This port does not support network connections.4x4 SAS HBA Ports
The 4x4 SAS HBAs are installed in PCIe slots 1, 2, 8, and 9 for the Oracle ZFS Storage ZS9-2 high-end model, and slots 1 and 9 for the Oracle ZFS Storage ZS9-2 mid-range model. The HBAs provide connectivity to external disk shelves. The HBA logical ports are numbered 0-3, bottom to top, as shown in the following figure.
