Sun ZFS Storage 7320 Front and Back Panel Components
Sun ZFS Storage 7320 Front Panel Components - The following figure and legend identify the front panel LEDs.
![Figure showing the Sun ZFS Storage 7320 controller front panel LEDs. Figure showing the Sun ZFS Storage 7320 controller front panel LEDs.](img/leds7320.png)
1 Locate Button/LED |
5 Rear Power Supply |
2 Service Required LED (amber) |
6 System Overtemperature LED |
3 Power/OK LED (green) |
7 Top Fan |
4 Power Button |
The following figure and legend identify the Sun ZFS Storage 7320 front panel drive locations. Two mirrored hard disk drives (HDDs) that store the operating system reside in slots 0 and 1. Up to four read-optimized cache solid state drives (SSDs) fill slots 2 through 5, in order. Slots 6 and 7 are empty and must contain drive fillers.
![Graphic showing the Sun ZFS Storage 7320 controller front panel drive locations Graphic showing the Sun ZFS Storage 7320 controller front panel drive locations](img/front_panel7320.png)
Table 11-9 Sun ZFS Storage 7320 Controller Front Panel Drive Locations
Disk Drive Location | Disk Drive Location | Disk Drive Location | Disk Drive Location | Disk Drive Location |
---|---|---|---|---|
HDD1 |
HDD3 |
HDD5 |
(no drive) |
(no drive) |
HDD0 |
HDD2 |
HDD4 |
HDD6 |
HDD7 |

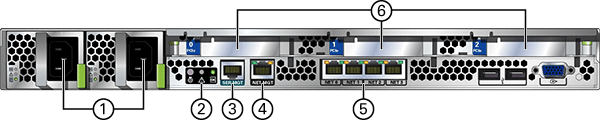

Sun ZFS Storage 7320 Back Panel Components - Following is an illustration of the Sun ZFS Storage 7320 storage controller rear panel. The Sun 375-3609 belongs in slot 2, cannot be installed in any other slots, and a second is not offered as an option.
![Figure showing the Sun ZFS Storage 7320 controller rear panel. Figure showing the Sun ZFS Storage 7320 controller rear panel.](img/rear_panel7320.png)
1 Power supplies |
4 Network management (NET MGT) 10/100 BASE-T Ethernet port |
2 SC summary status LEDs |
5 Ethernet ports |
3 Serial management port |
6 PCIe slots |
Cluster Interface Card Compatibility - The Sun ZFS Storage 7320 controller contains a Version 2 cluster interface card. This card cannot be replaced with a Version 3 cluster interface card.
For information about how to connect cables to form a cluster, see Connecting Cluster Cables in Oracle ZFS Storage Appliance Cabling Guide, Release OS8.8.x.
Ethernet Ports
There are four RJ-45 Gigabit Ethernet connectors (NET0, NET1, NET2, NET3) located on the Sun ZFS Storage 7320 motherboard that operate at 10/100/1000 Mbit/sec. These network interfaces must be configured before use.
