Physical architecture

The physical configuration of the Central Designer software includes:

There are three configuration options for the Central Designer software.

Configuration

Description

Single-tier

The application server, database server, and client applications run on the same machine.

Two-tier

The application server and database server run on the same machine, and the client applications run on another machine.

Three-tier

The database server, application server, and client applications each run on a separate machine.

Notes:

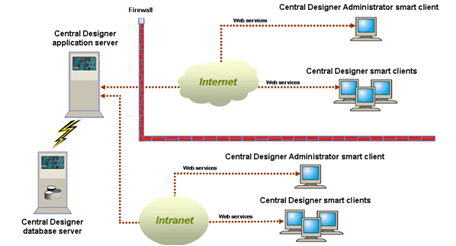

Illustration. Physical configuration of the software.
