HDR Version 7 HL7 Version 3 Messaging Conformance Specification

5.15 A_Insurance (universal) - COCT_RM444000HT01

This section contains the following topics:

5.15.1 Introduction
5.15.2 RMIM
5.15.3 Referenced CMETs
5.15.4 Links to Artifacts

5.15.1 Introduction

The A_Insurance (universal) CMET represents insurance attributes mapped from HL7 v2.4 IN1 segment. This information has been introduced as a new CMET for version 6 release to be used in an Encounter Event RMIM.

5.15.2 RMIM

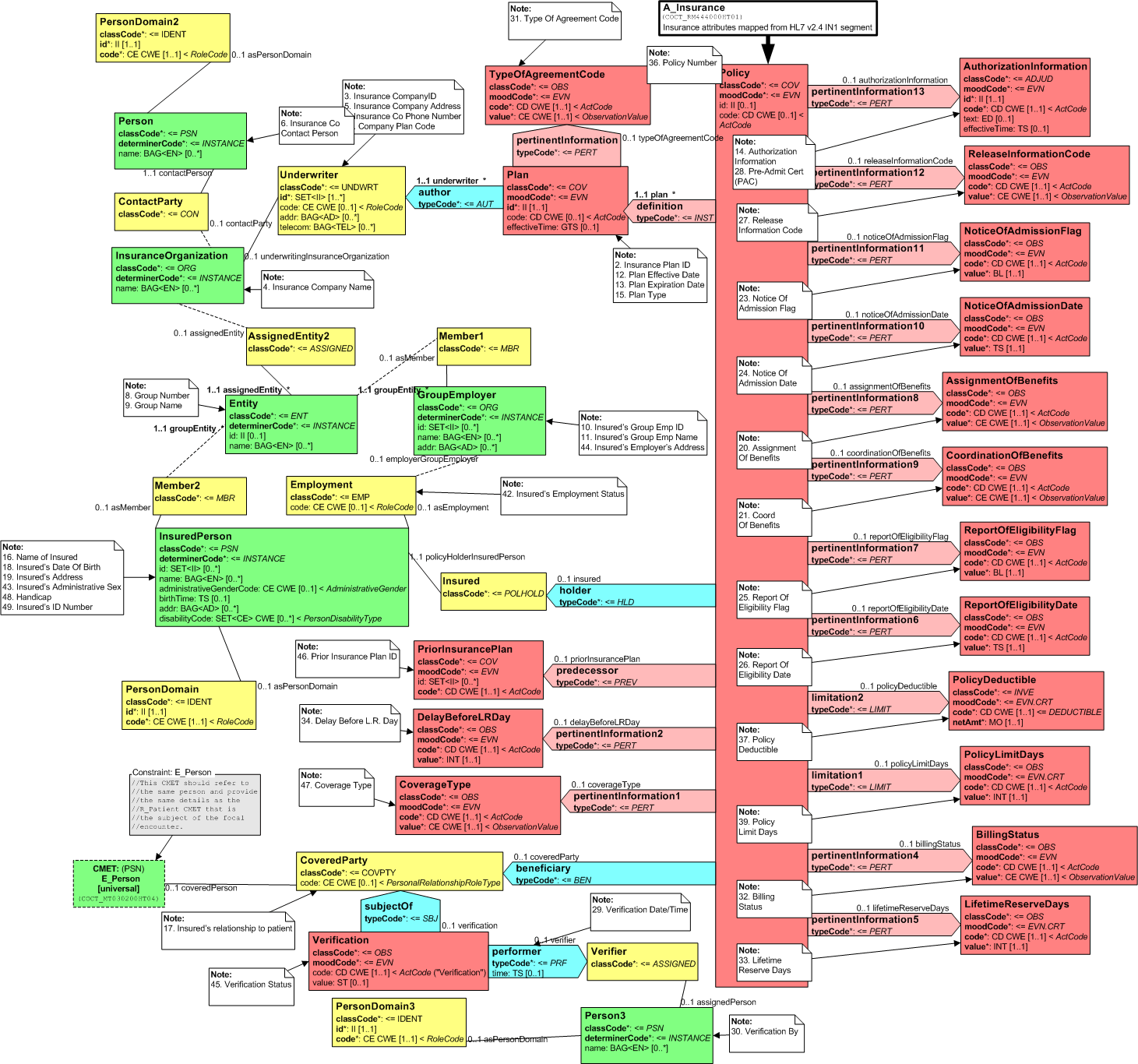

The following figure shows the A_Insurance (universal) RMIM:

Figure: 5.15.2-1 A_Insurance (universal) RMIM

See Full-size Image

5.15.3 Referenced CMETs

• 5.50 E_Person (universal) - COCT_RM030200HT04


5.15.4 Links to Artifacts
