Checkbox controls
Checkbox controls are mapped to 2xN clinical view columns, where N is the number of checkboxes (children). Each checkbox is mapped to two individual columns.
Columns in clinical views for checkbox controls
View column name |
View column type |
Report element name |
Report element folder |
Content |
|---|---|---|---|---|
C_<CORECOLUMNNAME> |
FLOAT, NUMBER or VARCHAR2 if the child is a simple control, otherwise VARCHAR2. |
Code ~ <COREITEMNAME> |
Additional Data |
ELEMENTVALUE if a child control is a simple control, CONTROLSELECTIONVALUE if the control has a selection value, otherwise CONTROLREFNAME. |
<COREITEMNNAME> |
VARCHAR2 |
<COREITEMNAME> |
Basic Data |
ELEMENTLABEL if a child control is a simple control, CONTROLCAPTION, otherwise CONTROLREFNAME. |
The following examples illustrate mapping a checkbox control.

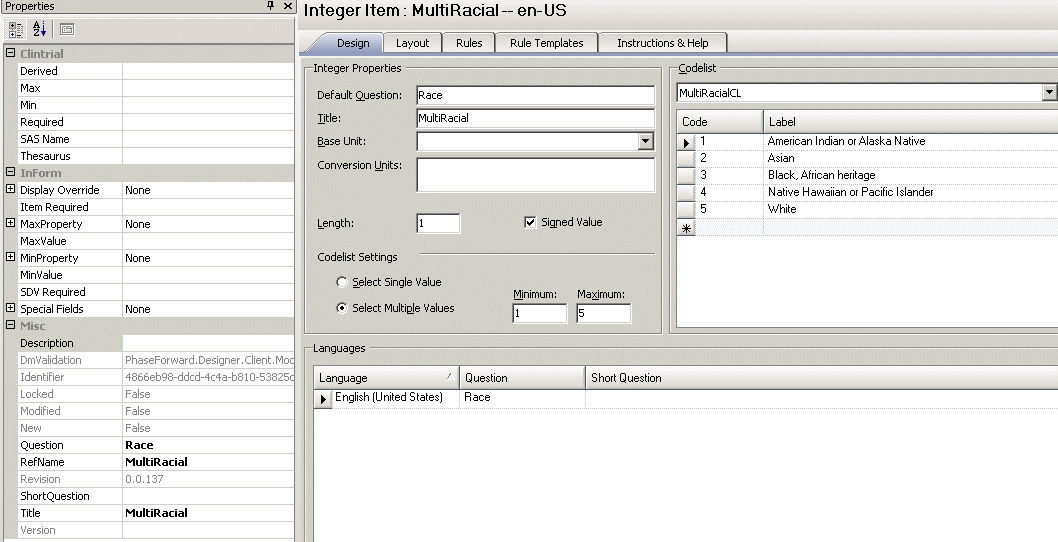

Central Designer Properties Browser view
Central Designer Project Explorer view

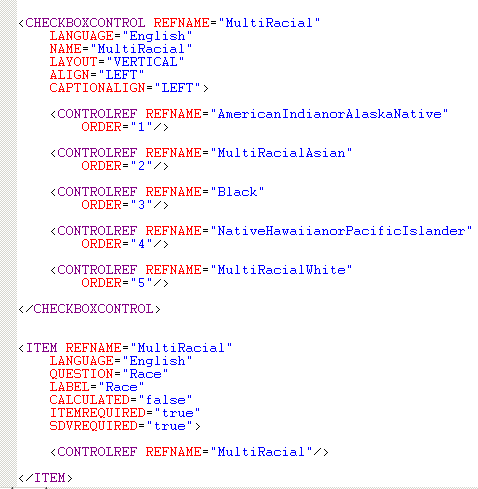

MedML definition

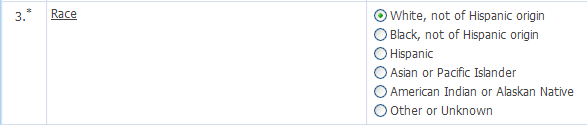

Display in the InForm application
