Prerequisites

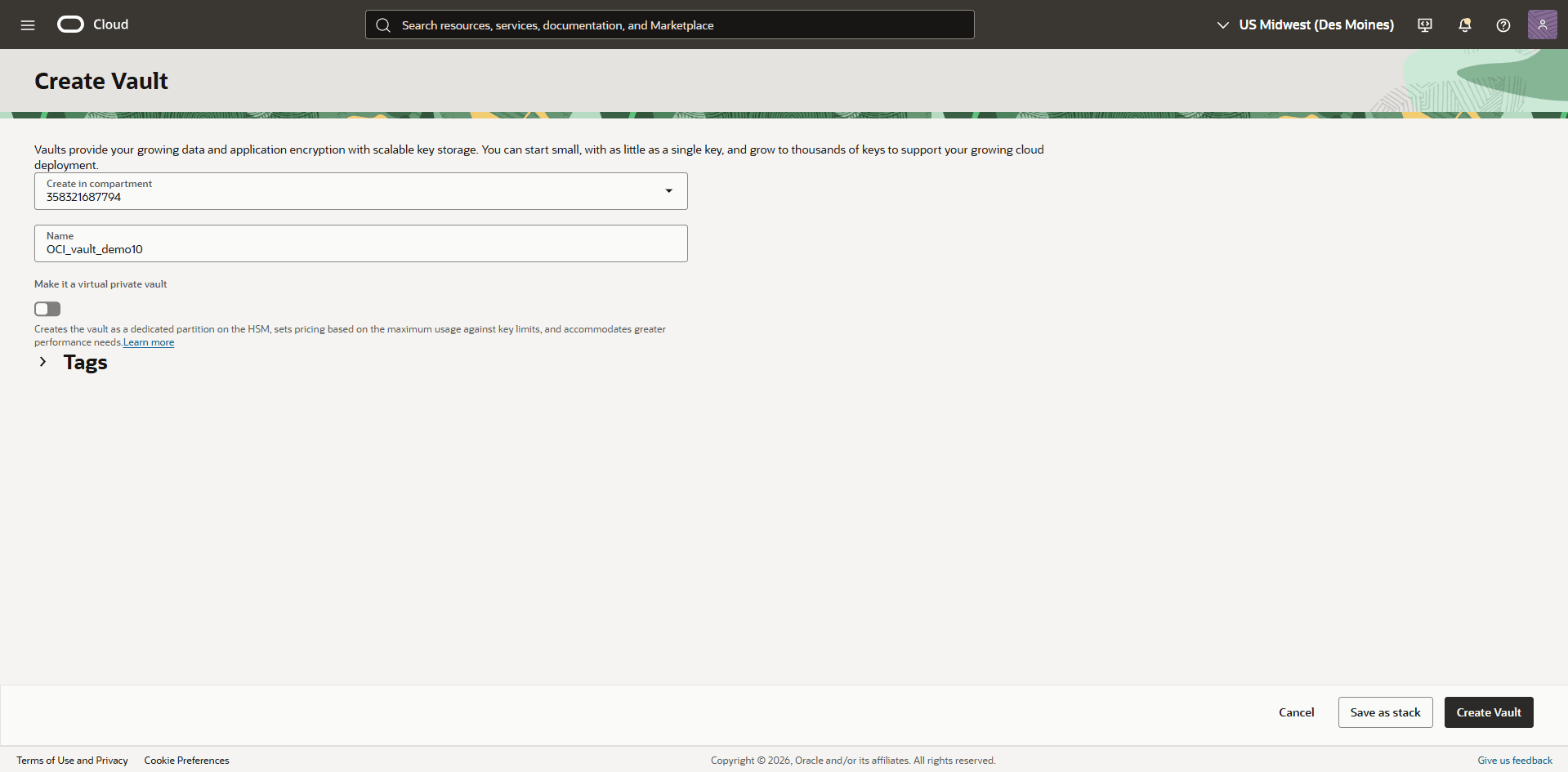

1. From the OCI Console, select Identity and Security. Under Key Management, select Vault.
2. Select the Create Vault button.
   1. Select a compartment.
   2. Enter a name for the vault.
   3. Enable the Make it a virtual private vault toggle to create a dedicated partition in a hardware security module (HSM), if required.
      Note

      You cannot change the vault type after you create the vault.
   4. The Tags section is optional.
   5. Select the Create Vault button.
   Note

   We recommend creating the vault in a compartment dedicated to customer-managed keys, as described in Before You Begin: Compartment Hierarchy Best Practice. For more information, see Creating a Vault.


1. From the Vault menu, select the vault that you created previously.

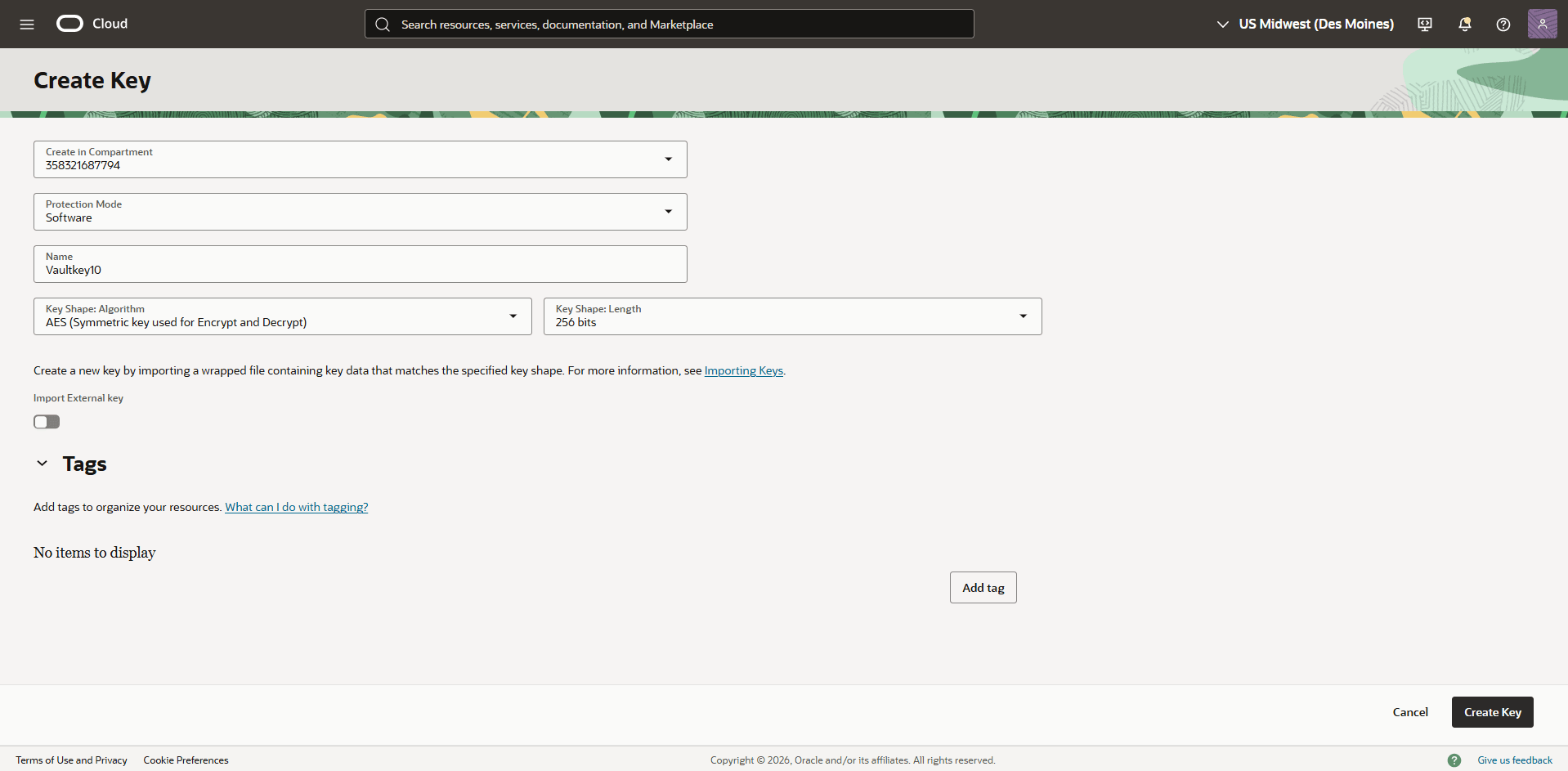

2. Select the Master Encryption Keys tab, then select the Create Key button.
   1. Choose a compartment.
   2. Select the protection mode from the dropdown list:
      • HSM: Creates a master encryption key that is stored and processed on an HSM.
      • Software: Creates a master encryption key that is stored in a software file system in the Vault service. Software-protected keys are protected at rest using an HSM-based root key. You can export software keys to other key management devices or to a different OCI region. Software-protected keys do not incur cost.
   3. Enter a key name.
   4. From the Key Shape: Algorithm dropdown list, select AES (Symmetric key used for Encrypt and Decrypt).
   5. From the Key Shape: Length dropdown list, select 256 bits.
   Note

   We recommend creating a separate master encryption key for each container database (CDB). This approach simplifies key rotation management.

   For more information, see Creating a Master Encryption Key and Overview of Key Management..



To enable communication between OCI Vault and Oracle AI Database@Google Cloud, configure a Service Gateway, update the Route table(s), and configure the required security list permissions.

1. From the OCI Console, navigate to the Virtual Cloud Network (VCN) associated with your Oracle AI Database@Google Cloud database.

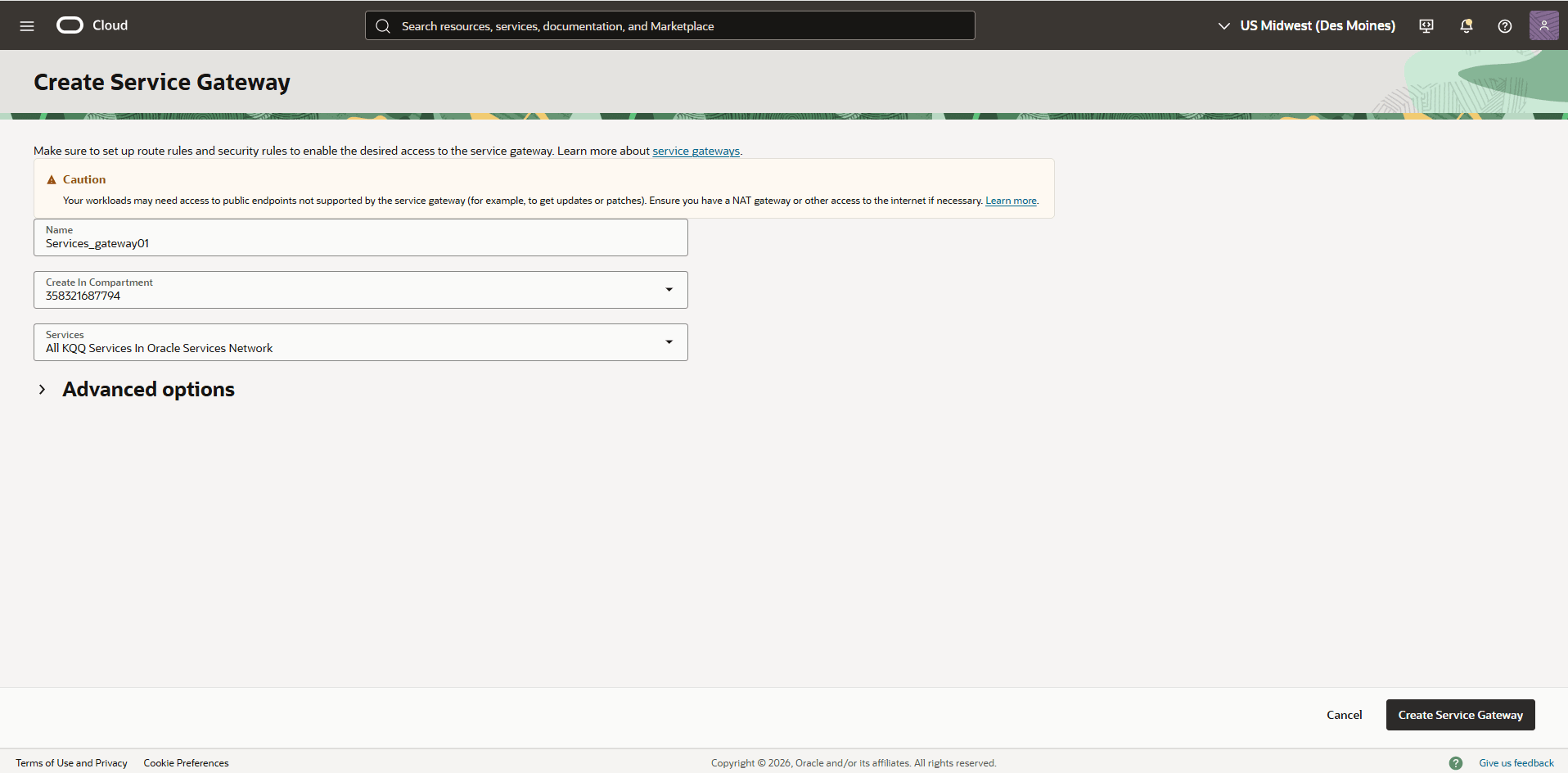

2. Select the Gateways tab. In the Service Gateways section, select the Create Service Gateway button.
   1. Enter a descriptive name for the service gateway.
   2. For Services, select the All KQQ Services in Oracle Services Network option.
   3. Review your information, and then select the Create Service Gateway to create your service gateway.
3. Select the Routing tab, then select your default route table.

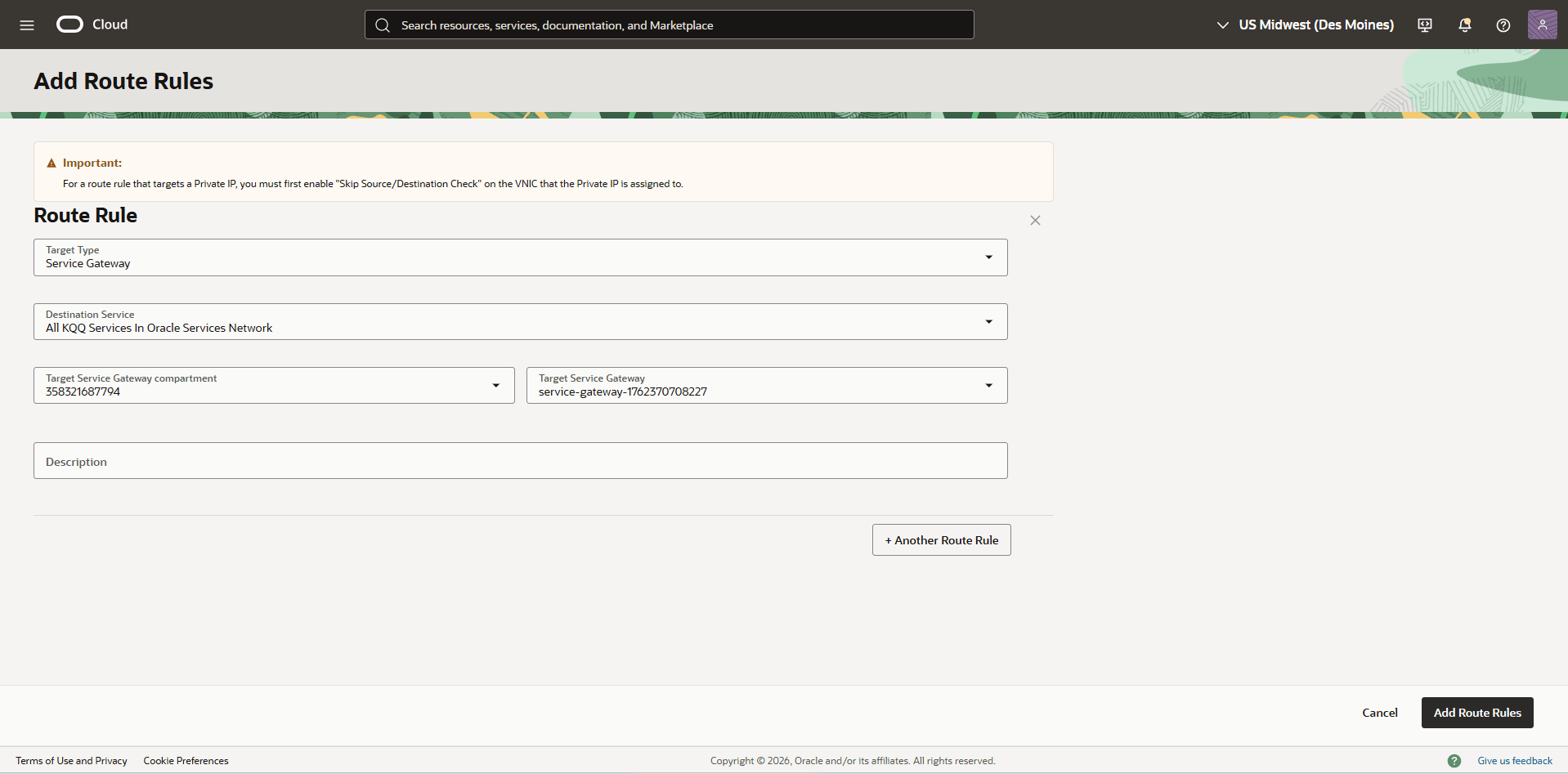

4. Select the Route Rules tab, then select the Add Route Rules button.
   1. Set Target Type to Service Gateway.
   2. Set Destination Service to All KQQ Services in Oracle Services Network.
   3. In the Target Service Gateway compartment field, select the compartment that contains the service gateway.
   4. In the Target Service Gateway field, select the service gateway that you created previously.
   5. Review your information, and then select the Add Route Rules button.

5. From the Virtual Cloud Network (VCN) that is associated with your Oracle AI Database@Google Cloud database, select the Security tab.
6. In the Security List section, select the default security list.

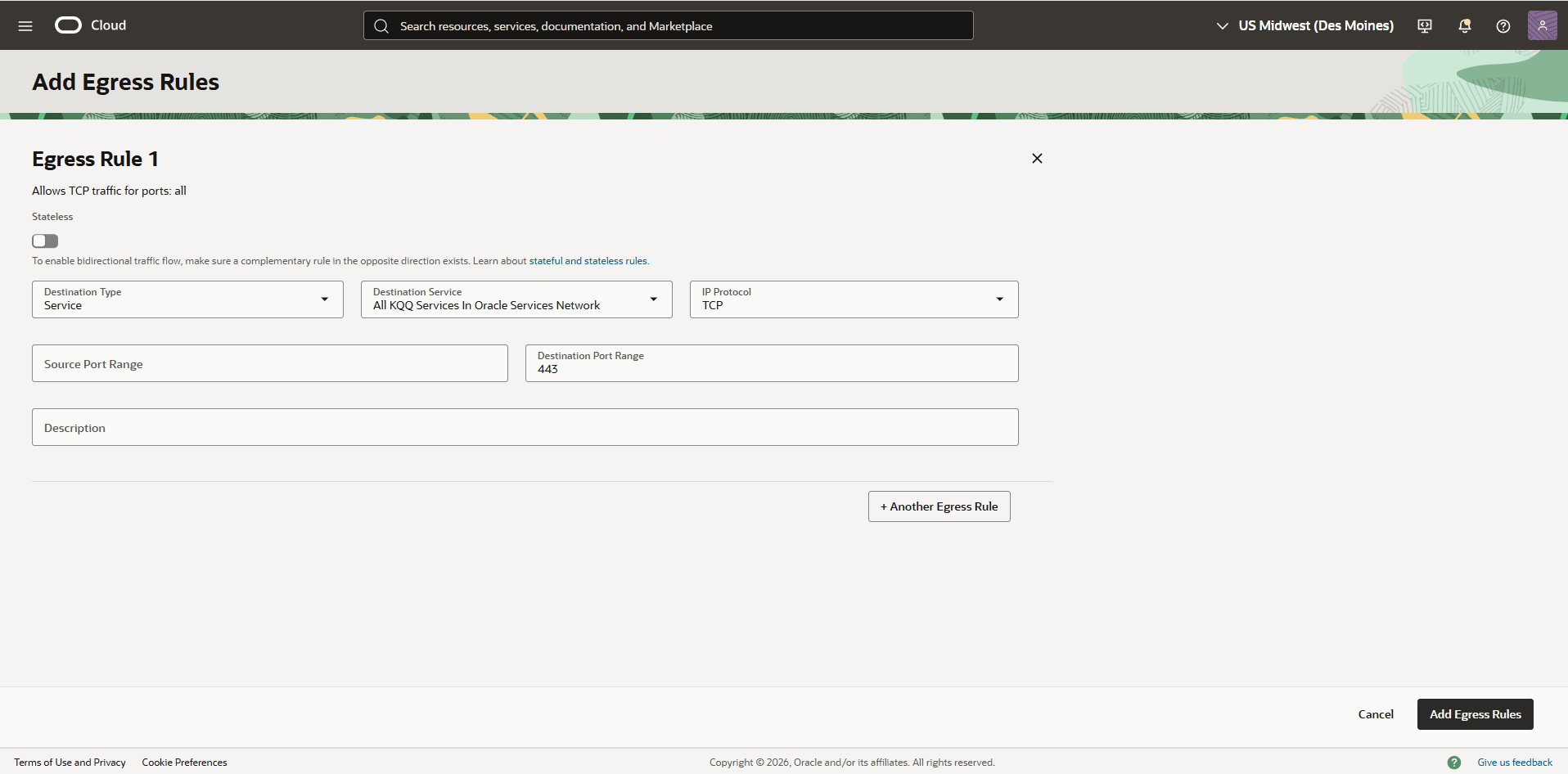

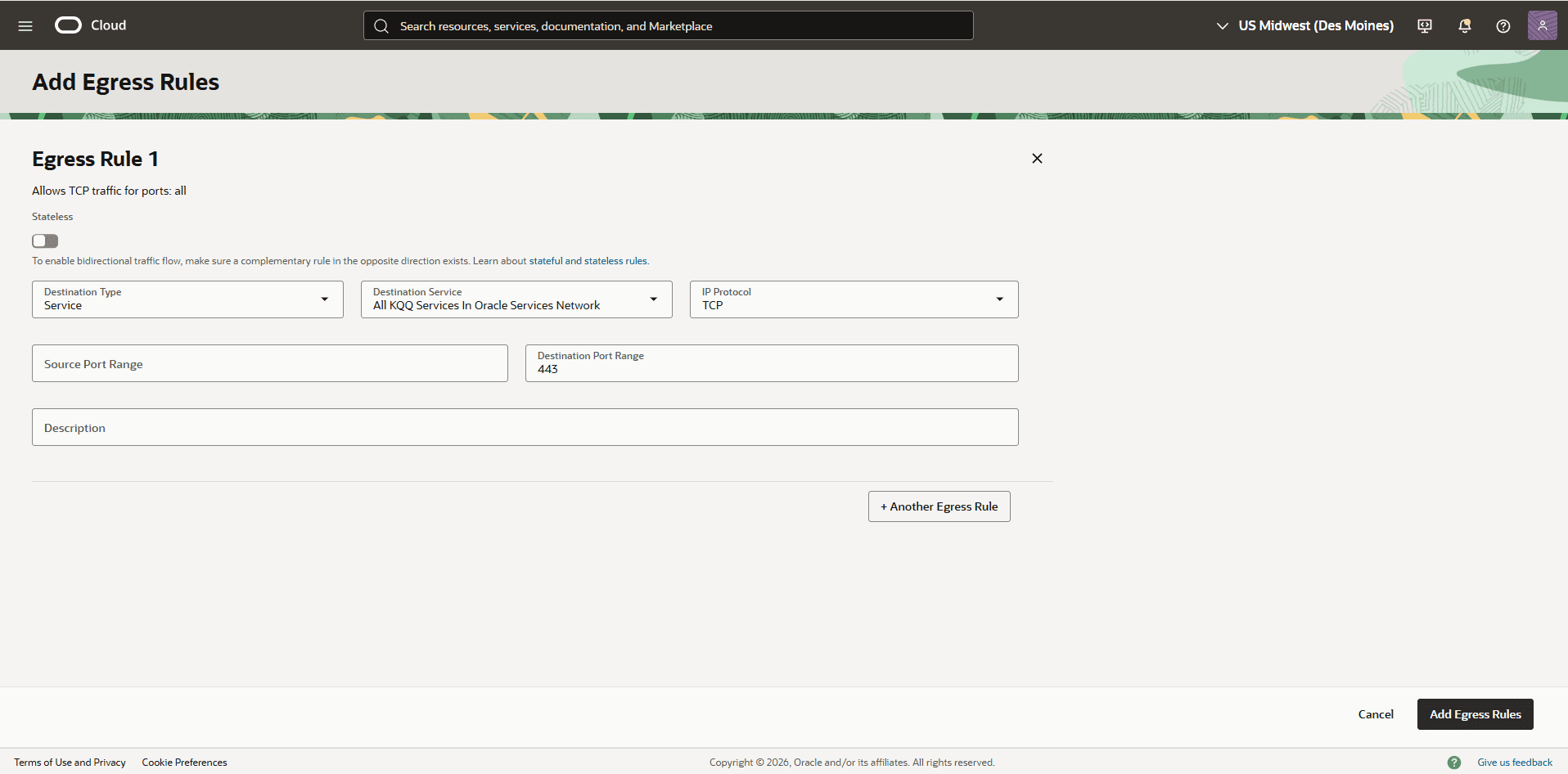

7. Select the Security Rules tab, then select the Add Egress Rules button.
   1. Set Stateless to No.
   2. Set Destination Type to Service.
   3. Set Destination Service to All IAD Services in Oracle Services Network.
   4. Set IP Protocol to TCP.
   5. Set Source Port Range to All.
   6. Set Destination Port Range to 443.
   7. Select the Add Egress Rules button.

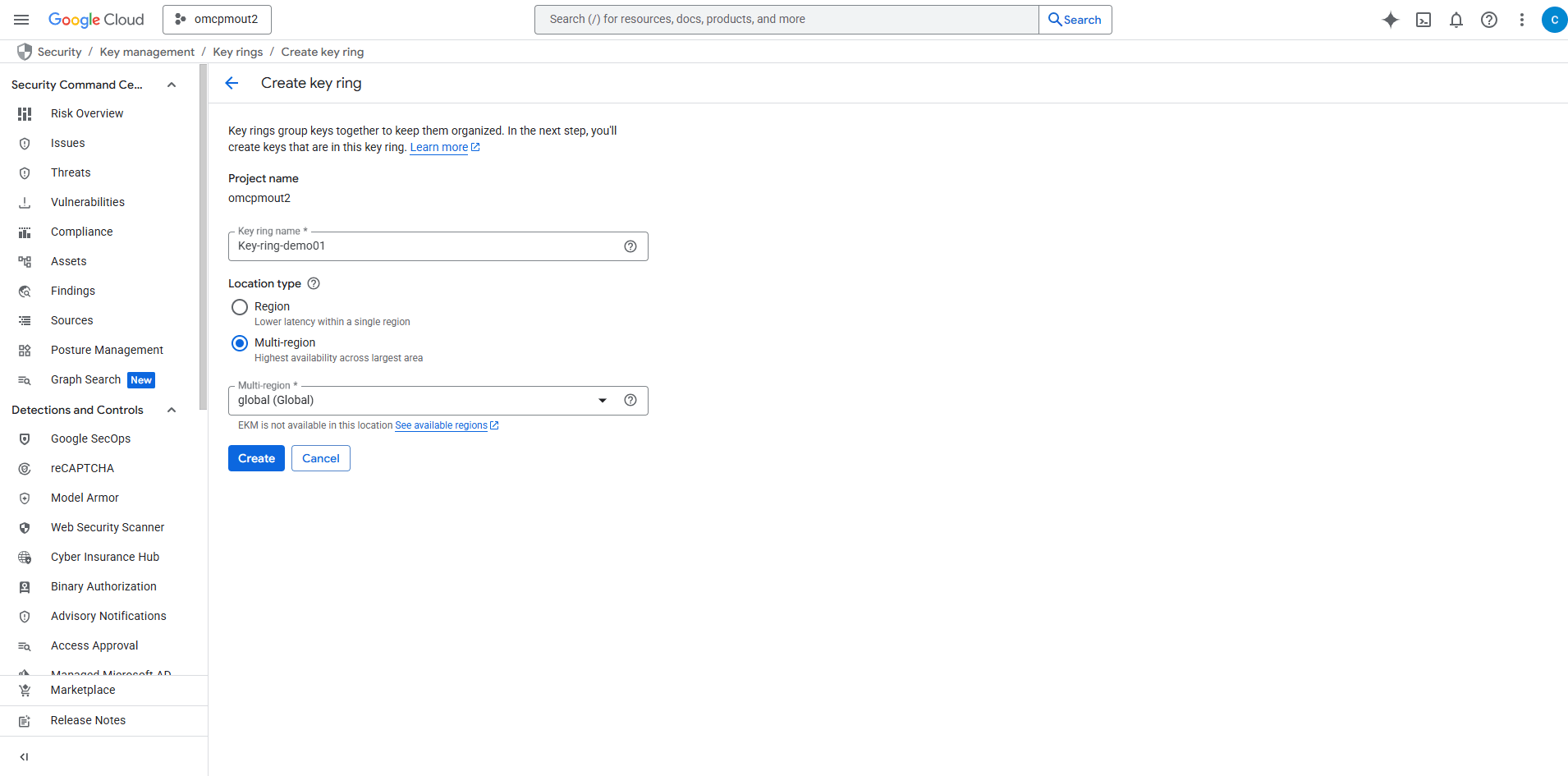

1. Enter a descriptive Key ring name. Names can only contain letters, numbers, underscores (_), and hyphens (-).
2. Choose your Location type.
   1. Region: It allows you to select a specific region.
   2. Multi-region: It allows you to select a multi-region such as global.
   Note



   • Key rings with the same name can exist in different locations, so you must always specify the location.
   • Choose a location close to the resources you want to protect.
   • For Customer Managed Encryption Keys, ensure the key ring is in the same location as the resources that will use it.

   Choosing a location for your Key Ring:

   When creating a key ring in Google Cloud Key Management Service (KMS), selecting the right location is crucial. Your choice affects where your cryptographic keys are stored and how they're replicated. For more information, see Cloud KMS locations.

   • Region:
     • Data is stored in a specific geographic region.
     • Keys remain within the boundaries of this single region.
     • Ideal for:
       • Low-latency applications
       • Compliance with data residency requirements
       • Region-specific workloads
   • Multi-region:
     • Data is replicated across multiple regions within a larger geographical area.
     • Google manages distribution and replication automatically.
     • You cannot select individual data centers or regions.
     • Ideal for:
       • High availability
       • Resilient, fault-tolerant applications
       • Services serving a wide regional area
   • Global:
     • A special type of multi-region.
     • Keys are distributed across Google data centers worldwide.
     • Location selection and control are not available.
     • Ideal for:
       • Applications with global users
       • Use cases needing maximum redundancy and reach
   Note

   If you plan to use Cross-Region Data Guard, select Multi-region or Global as the location for your key ring.
3. Select the Create button to create key ring.
