This chapter includes the following sections:

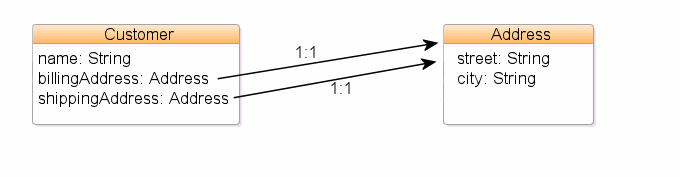

At least one of your mapped classes must have a default root element defined. This tells EclipseLink what the top-level root of your XML document will be. Consider the Customer and Address classes shown in Figure 3-1:
These classes correspond to the XML schema shown in Example 3-1. The schema contains a top-level element of type customer-type
, therefore our Customer class will need to have a default root element specified.
<xsd:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
<xsd:complexType name="address-type">
<xsd:sequence>
<element name="street" type="xsd:string"/>
<element name="city" type="xsd:string"/>
</xsd:sequence>
</xsd:complexType>
<xsd:element name="customer" type="customer-type"/>
<xsd:complexType name="customer-type">
<xsd:sequence>
<xsd:element name="name" type="xsd:string"/>
<xsd:element name="billing-address" type="address-type"/>
<xsd:element name="shipping-address" type="address-type"/>
</xsd:sequence>
</xsd:complexType>
</xsd:schema>
Example 3-2 shows how to annotate your Java class to specify a default root element. All that is needed is the standard JAXB @XmlRootElement
annotation.
Example 3-2 Using the @XmlRootElement Annotation
package example;
import javax.xml.bind.annotation.*;
@XmlRootElement
public class Customer {
private String name;
@XmlElement(name="billing-address")
private Address billingAddress;
@XmlElement(name="shipping-address")
private Address shippingAddress;
...
}
Example 3-3 shows how specify a default root element in EclipseLink's OXM metadata format.
Example 3-3 Specifying a Default Root Element
...
<java-type name="Customer">
<xml-root-element/>
<java-attributes>
<xml-element java-attribute="name"/>
<xml-element java-attribute="billingAddress" name="billing-address"/>
<xml-element java-attribute="shippingAddress" name="shipping-address"/>
</java-attributes>
</java-type>
...
In Example 3-2, our class is called Customer, and our root element name in XML is customer
. By default, when @XmlRootElement
is specified, the name of the class has its first letter lower-cased, and this is set as the root element name. If, however, the element name in XML is different from the Java class name, a name attribute can be included in the annotation (as in Example 3-4) or OXM metadata (as in Example 3-5):
package example;
import javax.xml.bind.annotation.*;
@XmlRootElement(name="my-customer")
public class Customer {
private String name;
@XmlElement(name="billing-address")
private Address billingAddress;
@XmlElement(name="shipping-address")
private Address shippingAddress;
...
}
Example 3-5 Using OXM Metadata
...
<java-type name="Customer">
<xml-root-element name="my-customer"/>
<java-attributes>
<xml-element java-attribute="name"/>
<xml-element java-attribute="billingAddress" name="billing-address"/>
<xml-element java-attribute="shippingAddress" name="shipping-address"/>
</java-attributes>
</java-type>
...
For more information on JAXB name-binding algorithms, see "Appendix D: Binding XML Names to Java Identifiers" of the Java Architecture for XML Binding (JAXB) Specification (http://jcp.org/en/jsr/detail?id=222
).
When an instance of the Customer class is persisted to XML, the EclipseLink runtime performs the following:
Gets the default root element. The Customer class instance corresponds to the root of the XML document. The EclipseLink runtime uses the default root element (customer
) specified in either annotations or OXM to start the XML document. EclipseLink then uses the mappings on the class to marshal the object's attributes.
<customer> <name>...</name> </customer>
When the EclipseLink runtime encounters an object attribute such as billingAddress
, it checks the mapping associated with it to determine with what element (billing-address
) to continue.
<customer> <name>...</name> <billing-address/> </customer>
The EclipseLink runtime checks the mapping's reference descriptor (Address) to determine what attributes to persist.
<customer> <name>...</name> <billing-address> <street>...</street> <city>...</city> </billing-address> </customer>
Most XML documents are qualified with a namespace. You can namespace-qualify elements of your Java class at the following levels:
In most cases, package-level annotation is sufficient. You can use the other levels to customize your document. Use the @XmlSchema
annotation to specify the namespace.
Use the @XmlSchema
annotation on the package to set a default namespace and specify that all elements in the package are qualified with the namespace. This information is specified in a special Java source file, package-info.java
.
@XmlSchema(
namespace="http://www.example.org/package",
elementFormDefault=XmlNsForm.QUALIFIED)
package example;
import javax.xml.bind.annotation.XmlNsForm;
import javax.xml.bind.annotation.XmlSchema;
This can be defined in EclipseLink XML Bindings as follows:
Example 3-7 Using OXM Metadata
<?xml version="1.0" encoding="UTF-8"?>
<xml-bindings xmlns="http://www.eclipse.org/eclipselink/xsds/persistence/oxm">
<xml-schema
element-form-default="QUALIFIED"
namespace="http://www.example.org/package">
</xml-schema>
<java-types>
<java-type name="Customer">
...
</xml-bindings>
Using a simple Customer class, Example 3-6 and Example 3-7 will produce the following XML:
<customer xmlns="http://www.example.org/package"> <name>Jane Doe</name> <account>36328721</account> </customer>
All elements are qualified with the http://www.example.org/package namespace.
Type level annotations will override the package level namespace.
package example;
@XmlRootElement
@XmlType(namespace="http://www.example.org/type")
public class Customer {
private String name;
private String account;
...
}
This can be defined in EclipseLink XML Bindings as follows:
Example 3-9 Using XML Bindings File
<?xml version="1.0" encoding="UTF-8"?>
<xml-bindings xmlns="http://www.eclipse.org/eclipselink/xsds/persistence/oxm">
<xml-schema
element-form-default="QUALIFIED"
namespace="http://www.example.org/package">
</xml-schema>
<java-types>
<java-type name="Customer">
<xml-type namespace="http://www.example.org/type" />
<java-attributes>
<xml-element java-attribute="name" />
<xml-element java-attribute="account" />
</java-attributes>
</java-type>
</java-types>
</xml-bindings>
This will produce the following XML:
<custom xmlns="http://www.example.org/package" xmlns:ns0="http://www.example.org/type"> <ns0:name>Bob</ns0:name> <ns0:account>1928712</ns0:account> </custom>
Elements inside the Customer type are qualified with the http://www.example.org/type namespace.
You can override the package or type namespaces at the property/field level. All attribute and element annotations accept the namespace parameter.
Example 3-10 Overriding the Namespace
package example; @XmlRootElement @XmlAccessorType(XmlAccessType.FIELD) @XmlType(namespace="http://www.example.org/type") public class Customer { private String name; @XmlElement(namespace="http://www.example.org/property") private String account; ... }
This can be defined in EclipseLink XML Bindings as follows:
Example 3-11 Sample Bindings File
<?xml version="1.0" encoding="UTF-8"?> <xml-bindings xmlns="http://www.eclipse.org/eclipselink/xsds/persistence/oxm"> <xml-schema element-form-default="QUALIFIED" namespace="http://www.example.org/package"> </xml-schema> <java-types> <java-type name="Customer"> <xml-type namespace="http://www.example.org/type" /> <java-attributes> <xml-element java-attribute="name" /> <xml-element java-attribute="account" namespace="http://www.example.org/property" /> </java-attributes> </java-type> </java-types> </xml-bindings>
This will produce the following XML:
<custom xmlns="http://www.example.org/package" xmlns:ns1="http://www.example.org/property" xmlns:ns0="http://www.example.org/type"> <ns0:name>Bob</ns0:name> <ns1:account>1928712</ns1:account> </custom>
Only the account element is qualified with the http://www.example.org/property namespace.
EclipseLink MOXy provides several ways to represent your inheritance hierarchy in XML:
By default, EclipseLink will use the xsi:type
attribute to represent inheritance in XML.
In this example an abstract super class (ContactInfo) contains all types of contact information. Address and PhoneNumber are the concrete implementations of ContactInfo.
Example 3-12 Sample Java Classes
public abstract class ContactInfo { } public class Address extends ContactInfo { private String street; ... } public class PhoneNumber extends ContactInfo { private String number; ... }
Because the Customer object can have different types of contact information, its property refers to the superclass.
@XmlRootElement public class Customer { private ContactInfo contactInfo; ... }
Marshalling an example Customer would produce the following XML:
<customer>
<contactInfo
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:type="address">
<street>323 Main Street</street>
</contactInfo>
</customer>
Note the xsi:type
attribute on the contactInfo
element.
Another way to model inheritance in XML is through XML Schema's substitution groups functionality. Using this approach, the element name itself determines which subclass to use.
Taking the same Example 3-12, we will add @XmlRootElement
annotations to each of the subclasses, which will act as the inheritance indicator.
Example 3-13 Using @XmlRootElement Annotation
public abstract class ContactInfo { } @XmlRootElement public class Address extends ContactInfo { private String street; ... } @XmlRootElement public class PhoneNumber extends ContactInfo { private String number; ... }
Using this approach, marshalling an example Customer would produce the following XML:
<customer> <address> <street>323 Main Street</street> </address> </customer>
Note that the Address object is marshalled to the address
element.
You can also use the MOXY-specific @XmlDiscriminatorNode
and @XmlDiscriminatorValue
annotations (introduced in EclipseLink 2.2) to represent inheritance. With this approach, you can select the attribute to represent the subtype.
Using Example 3-13, the ContactInfo class uses the @XmlDiscriminatorNod
e annotation to specify the XML attribute (classifier) that will hold the subclass indicator. Address and PhoneNumber are annotated with @XmlDiscriminatorValue, indicating that class' indicator name (address-classifier
and phone-number-classifier
).
Example 3-14 Using the @XmlDiscriminatorNode and @XmlDiscriminatorValue Annotations
@XmlDiscriminatorNode("@classifier") public abstract class ContactInfo { } @XmlDiscriminatorValue("address-classifier") public class Address extends ContactInfo { private String street; ... } @XmlDiscriminatorValue("phone-number-classifier") public class PhoneNumber extends ContactInfo { private String number; ... }
Example 3-14 produces the following XML:
<customer> <contactInfo classifier="address-classifier"> <street>323 Main Street</street> </contactInfo> </customer>
Notice that Address is marshalled to the contactInfo
element. Its classifier attribute contains the discriminator node value address-classifier
.
