設定雙向複寫

設定單向複製之後,只需幾個額外步驟即可以相反方向複製資料。這個快速入門範例使用 Autonomous Transaction Processing 和 Autonomous Data Warehouse 作為其兩個雲端資料庫。

相關主題

開始之前

您必須在相同的租用戶和區域有兩個現有的資料庫,才能繼續進行此快速啟動。如果您需要範例資料,請下載 Archive.zip ,然後依照實驗室 1、任務 3:載入可承諾量結構中的指示進行。

概觀

下列步驟將引導您瞭解如何使用 Oracle Data Pump 建立目標資料庫,並在相同區域中的兩個資料庫之間設定雙向 (雙向) 複寫。

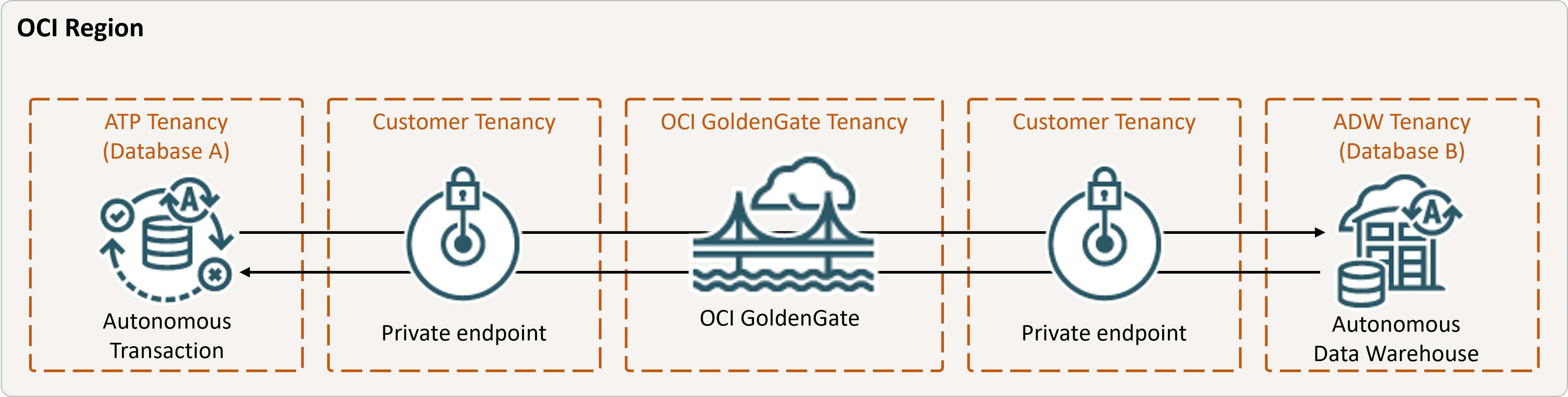

bidirectional.png 的描述如下
bidirectional.png 圖解描述

作業 1:設定環境

  1. 建立部署
  2. 建立資料庫連線
  3. 指派部署的連線
  4. 啟用補充記錄日誌:
    ALTER DATABASE ADD SUPPLEMENTAL LOG DATA
  5. 執行下列查詢以確保來源資料庫中所有表格的 support_mode=FULL

    select * from DBA_GOLDENGATE_SUPPORT_MODE where owner = 'SRC_OCIGGLL';
  6. 在資料庫 B 執行下列查詢,以確保資料庫中所有表格的 support_mode=FULL
    select * from DBA_GOLDENGATE_SUPPORT_MODE where owner = 'SRCMIRROR_OCIGGLL';

工作 2:新增兩個資料庫的交易資訊和檢查點表格

OCI GoldenGate 建置主控台中,移至「管理服務」的「組態」畫面,然後完成下列作業:

  1. 在資料庫 A 和 B 上新增交易資訊
    1. 若為資料庫 A,請在「綱要名稱」輸入 SRC_OCIGGLL
    2. 若為資料庫 B,請輸入 SRCMIRROR_OCIGGLL 作為綱要名稱。

    附註:

    如果您使用與此範例不同的資料集,綱要名稱應該是唯一的,並且符合您的資料庫綱要名稱。
  2. 建立資料庫 A 和 B 的檢查點表格
    1. 若為資料庫 A,請輸入檢查點表格的 "SRC_OCIGGLL"."ATP_CHECKTABLE"
    2. 若為資料庫 B,請輸入檢查點表格的 "SRCMIRROR_OCIGGLL"."CHECKTABLE"

任務 3:建立整合式擷取

「整合式擷取」會擷取來源資料庫的持續變更。

  1. 在部署「詳細資訊」頁面上,按一下啟動主控台
  2. 新增並執行整合式擷取

    附註:

    請參閱其他擷取參數選項,瞭解您可以用來指定來源表格之參數的詳細資訊。
    1. 在「擷取參數」頁面上,將下列行附加至 EXTTRAIL <extract-name> 下:
      -- Capture DDL operations for listed schema tables
      ddl include mapped

      -- Add step-by-step history of
      -- to the report file. Very useful when troubleshooting.
      ddloptions report

      -- Write capture stats per table to the report file daily.
      report at 00:01

      -- Rollover the report file weekly. Useful when IE runs
      -- without being stopped/started for long periods of time to
      -- keep the report files from becoming too large.
      reportrollover at 00:01 on Sunday

      -- Report total operations captured, and operations per second
      -- every 10 minutes.
      reportcount every 10 minutes, rate

      -- Table list for capture
      table SRC_OCIGGLL.*;

      -- Exclude changes made by GGADMIN
      tranlogoptions excludeuser ggadmin

    附註:

    tranlogoptions excludeuser ggadmin 可避免重新擷取 ggadmin 在雙向複製案例中套用的交易。
  3. 檢查長時間執行的交易:
    1. 在來源資料庫上執行下列命令檔:
      select start_scn, start_time from gv$transaction where start_scn < (select max(start_scn) from dba_capture);

      如果查詢傳回任何資料列,則您必須找出交易的 SCN,然後確認或倒回交易。

工作 4:使用 Oracle Data Pump 匯出資料 (ExpDP)

使用 Oracle Data Pump (ExpDP) 將資料從來源資料庫匯出至 Oracle Object Store。

  1. 建立 Oracle Object Store 儲存桶

    記下用於「匯出」和「匯入」命令檔的命名空間和儲存桶名稱。

  2. 建立認證權杖,然後將權杖字串複製並貼到文字編輯器以供日後使用。
  3. 在您的來源資料庫中建立證明資料,將 <user-name><token> 取代為您的 Oracle Cloud 帳戶使用者名稱和您在上一個步驟中建立的權杖字串:
    BEGIN
      DBMS_CLOUD.CREATE_CREDENTIAL(
        credential_name => 'ADB_OBJECTSTORE',
        username => '<user-name>',
        password => '<token>'
      );
    END;
  4. 在來源資料庫中執行下列命令檔以建立「匯出資料」工作。請確定已相應地取代物件存放區 URI 中的 <region><namespace><bucket-name>SRC_OCIGGLL.dmp -- 執行此命令檔時所要建立的檔案。
    DECLARE
    ind NUMBER;              -- Loop index
    h1 NUMBER;               -- Data Pump job handle
    percent_done NUMBER;     -- Percentage of job complete
    job_state VARCHAR2(30);  -- To keep track of job state
    le ku$_LogEntry;         -- For WIP and error messages
    js ku$_JobStatus;        -- The job status from get_status
    jd ku$_JobDesc;          -- The job description from get_status
    sts ku$_Status;          -- The status object returned by get_status

    BEGIN
    -- Create a (user-named) Data Pump job to do a schema export.
    h1 := DBMS_DATAPUMP.OPEN('EXPORT','SCHEMA',NULL,'SRC_OCIGGLL_EXPORT','LATEST');

    -- Specify a single dump file for the job (using the handle just returned
    -- and a directory object, which must already be defined and accessible
    -- to the user running this procedure.
    DBMS_DATAPUMP.ADD_FILE(h1,'https://objectstorage.<region>.oraclecloud.com/n/<namespace>/b/<bucket-name>/o/SRC_OCIGGLL.dmp','ADB_OBJECTSTORE','100MB',DBMS_DATAPUMP.KU$_FILE_TYPE_URIDUMP_FILE,1);

    -- A metadata filter is used to specify the schema that will be exported.
    DBMS_DATAPUMP.METADATA_FILTER(h1,'SCHEMA_EXPR','IN (''SRC_OCIGGLL'')');

    -- Start the job. An exception will be generated if something is not set up properly.
    DBMS_DATAPUMP.START_JOB(h1);

    -- The export job should now be running. In the following loop, the job
    -- is monitored until it completes. In the meantime, progress information is displayed.
    percent_done := 0;
    job_state := 'UNDEFINED';
    while (job_state != 'COMPLETED') and (job_state != 'STOPPED') loop
      dbms_datapump.get_status(h1,dbms_datapump.ku$_status_job_error + dbms_datapump.ku$_status_job_status + dbms_datapump.ku$_status_wip,-1,job_state,sts);
      js := sts.job_status;

    -- If the percentage done changed, display the new value.
    if js.percent_done != percent_done
    then
      dbms_output.put_line('*** Job percent done = ' || to_char(js.percent_done));
      percent_done := js.percent_done;
    end if;

    -- If any work-in-progress (WIP) or error messages were received for the job, display them.
    if (bitand(sts.mask,dbms_datapump.ku$_status_wip) != 0)
    then
      le := sts.wip;
    else
      if (bitand(sts.mask,dbms_datapump.ku$_status_job_error) != 0)
      then
        le := sts.error;
      else
        le := null;
      end if;
    end if;
    if le is not null
    then
      ind := le.FIRST;
      while ind is not null loop
        dbms_output.put_line(le(ind).LogText);
        ind := le.NEXT(ind);
      end loop;
    end if;
      end loop;

      -- Indicate that the job finished and detach from it.
      dbms_output.put_line('Job has completed');
      dbms_output.put_line('Final job state = ' || job_state);
      dbms_datapump.detach(h1);
    END;

作業 5:使用 Oracle Data Pump 建立目標資料庫 (ImpDP)

使用 Oracle Data Pump (ImpDP) 從來源資料庫匯出的 SRC_OCIGGLL.dmp 將資料匯入目標資料庫。

  1. 在您的目標資料庫中建立證明資料以存取 Oracle Object Store (使用前一節中的相同資訊)。
    BEGIN
      DBMS_CLOUD.CREATE_CREDENTIAL(
        credential_name => 'ADB_OBJECTSTORE',
        username => '<user-name>',
        password => '<token>'
      );
    END;
  2. 在目標資料庫中執行下列命令檔,以從 SRC_OCIGGLL.dmp 匯入資料。請確定已相應地取代物件存放區 URI 中的 <region><namespace><bucket-name>
    DECLARE
    ind NUMBER;  -- Loop index
    h1 NUMBER;  -- Data Pump job handle
    percent_done NUMBER;  -- Percentage of job complete
    job_state VARCHAR2(30);  -- To keep track of job state
    le ku$_LogEntry;  -- For WIP and error messages
    js ku$_JobStatus;  -- The job status from get_status
    jd ku$_JobDesc;  -- The job description from get_status
    sts ku$_Status;  -- The status object returned by get_status
    BEGIN

    -- Create a (user-named) Data Pump job to do a "full" import (everything
    -- in the dump file without filtering).
    h1 := DBMS_DATAPUMP.OPEN('IMPORT','FULL',NULL,'SRCMIRROR_OCIGGLL_IMPORT');

    -- Specify the single dump file for the job (using the handle just returned)
    -- and directory object, which must already be defined and accessible
    -- to the user running this procedure. This is the dump file created by
    -- the export operation in the first example.

    DBMS_DATAPUMP.ADD_FILE(h1,'https://objectstorage.<region>.oraclecloud.com/n/<namespace>/b/<bucket-name>/o/SRC_OCIGGLL.dmp','ADB_OBJECTSTORE',null,DBMS_DATAPUMP.KU$_FILE_TYPE_URIDUMP_FILE);


    -- A metadata remap will map all schema objects from SRC_OCIGGLL to SRCMIRROR_OCIGGLL.
    DBMS_DATAPUMP.METADATA_REMAP(h1,'REMAP_SCHEMA','SRC_OCIGGLL','SRCMIRROR_OCIGGLL');

    -- If a table already exists in the destination schema, skip it (leave
    -- the preexisting table alone). This is the default, but it does not hurt
    -- to specify it explicitly.
    DBMS_DATAPUMP.SET_PARAMETER(h1,'TABLE_EXISTS_ACTION','SKIP');

    -- Start the job. An exception is returned if something is not set up properly.
    DBMS_DATAPUMP.START_JOB(h1);

    -- The import job should now be running. In the following loop, the job is
    -- monitored until it completes. In the meantime, progress information is
    -- displayed. Note: this is identical to the export example.
    percent_done := 0;
    job_state := 'UNDEFINED';
    while (job_state != 'COMPLETED') and (job_state != 'STOPPED') loop
      dbms_datapump.get_status(h1,
        dbms_datapump.ku$_status_job_error +
        dbms_datapump.ku$_status_job_status +
        dbms_datapump.ku$_status_wip,-1,job_state,sts);
        js := sts.job_status;

      -- If the percentage done changed, display the new value.
      if js.percent_done != percent_done
      then
        dbms_output.put_line('*** Job percent done = ' ||
        to_char(js.percent_done));
        percent_done := js.percent_done;
      end if;

      -- If any work-in-progress (WIP) or Error messages were received for the job, display them.
      if (bitand(sts.mask,dbms_datapump.ku$_status_wip) != 0)
      then
        le := sts.wip;
      else
        if (bitand(sts.mask,dbms_datapump.ku$_status_job_error) != 0)
        then
          le := sts.error;
        else
          le := null;
        end if;
      end if;
      if le is not null
      then
        ind := le.FIRST;
        while ind is not null loop
          dbms_output.put_line(le(ind).LogText);
          ind := le.NEXT(ind);
        end loop;
      end if;
    end loop;

    -- Indicate that the job finished and gracefully detach from it.
    dbms_output.put_line('Job has completed');
    dbms_output.put_line('Final job state = ' || job_state);
    dbms_datapump.detach(h1);
    END;

工作 6:新增和執行非整合式 Replicat

  1. 新增並執行 Replicat
    1. 參數檔畫面上,使用下列命令檔取代 MAP *.*, TARGET *.*;
      -- Capture DDL operations for listed schema tables
      --
      ddl include mapped
      --
      -- Add step-by-step history of ddl operations captured
      -- to the report file. Very useful when troubleshooting.
      --
      ddloptions report
      --
      -- Write capture stats per table to the report file daily.
      --
      report at 00:01
      --
      -- Rollover the report file weekly. Useful when PR runs
      -- without being stopped/started for long periods of time to
      -- keep the report files from becoming too large.
      --
      reportrollover at 00:01 on Sunday
      --
      -- Report total operations captured, and operations per second
      -- every 10 minutes.
      --
      reportcount every 10 minutes, rate
      --
      -- Table map list for apply
      --
      DBOPTIONS ENABLE_INSTANTIATION_FILTERING;
      MAP SRC_OCIGGLL.*, TARGET SRCMIRROR_OCIGGLL.*;

      附註:

      DBOPTIONS ENABLE_INSTATIATION_FILTERING 可對使用 Oracle Data Pump 匯入的表格啟用 CSN 篩選。如需詳細資訊,請參閱 DBOPTIONS Reference
  2. 對資料庫 A 執行一些變更以查看複製至資料庫 B 的變更。

作業 7:設定從資料庫 B 複製到資料庫 A

作業 1 到 6 已建立從資料庫 A 到資料庫 B 的複製。下列步驟設定從資料庫 B 複製到資料庫 A。

  1. 新增並執行資料庫 B 上的 Extract 。在 EXTRAIL <extract-name> 之後的擷取參數頁面上,確保您包括:
    -- Table list for capture
    table SRCMIRROR_OCIGGLL.*;

    -- Exclude changes made by GGADMIN
    tranlogoptions excludeuser ggadmin
  2. 新增並執行 Replicat 至資料庫 A。在「參數」頁面上,以下列項目取代 MAP *.*, TARGET *.*;
    MAP SRCMIRROR_OCIGGLL.*, TARGET SRC_OCIGGLL.*;
  3. 對資料庫 B 執行一些變更以查看複製至資料庫 A 的變更。

工作 8:監督和維護處理作業

  1. 監督效能
  2. 管理歷程檔
