Module java.desktop
Package java.awt

Class Window

java.lang.Object
java.awt.Component
java.awt.Container
java.awt.Window
All Implemented Interfaces:
ImageObserver, MenuContainer, Serializable, Accessible
Direct Known Subclasses:
BasicToolBarUI.DragWindow, Dialog, Frame, JWindow
public class Window extends Container implements Accessible
A Window object is a top-level window with no borders and no menubar. The default layout for a window is BorderLayout.

A window must have either a frame, dialog, or another window defined as its owner when it's constructed.

In a multi-screen environment, you can create a Window on a different screen device by constructing the Window with Window(Window, GraphicsConfiguration). The GraphicsConfiguration object is one of the GraphicsConfiguration objects of the target screen device.

In a virtual device multi-screen environment in which the desktop area could span multiple physical screen devices, the bounds of all configurations are relative to the virtual device coordinate system. The origin of the virtual-coordinate system is at the upper left-hand corner of the primary physical screen. Depending on the location of the primary screen in the virtual device, negative coordinates are possible, as shown in the following figure.

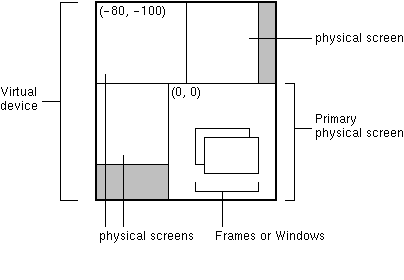

Diagram shows virtual device containing 4 physical screens. Primary physical screen shows coords (0,0), other screen shows (-80,-100).

In such an environment, when calling setLocation, you must pass a virtual coordinate to this method. Similarly, calling getLocationOnScreen on a Window returns virtual device coordinates. Call the getBounds method of a GraphicsConfiguration to find its origin in the virtual coordinate system.

The following code sets the location of a Window at (10, 10) relative to the origin of the physical screen of the corresponding GraphicsConfiguration. If the bounds of the GraphicsConfiguration is not taken into account, the Window location would be set at (10, 10) relative to the virtual-coordinate system and would appear on the primary physical screen, which might be different from the physical screen of the specified GraphicsConfiguration.

      Window w = new Window(Window owner, GraphicsConfiguration gc);
      Rectangle bounds = gc.getBounds();
      w.setLocation(10 + bounds.x, 10 + bounds.y);

Note: the location and size of top-level windows (including Windows, Frames, and Dialogs) are under the control of the desktop's window management system. Calls to setLocation, setSize, and setBounds are requests (not directives) which are forwarded to the window management system. Every effort will be made to honor such requests. However, in some cases the window management system may ignore such requests, or modify the requested geometry in order to place and size the Window in a way that more closely matches the desktop settings.

Visual effects such as halos, shadows, motion effects and animations may be applied to the window by the desktop window management system. These are outside the knowledge and control of the AWT and so for the purposes of this specification are not considered part of the top-level window.

Due to the asynchronous nature of native event handling, the results returned by getBounds, getLocation, getLocationOnScreen, and getSize might not reflect the actual geometry of the Window on screen until the last request has been processed. During the processing of subsequent requests these values might change accordingly while the window management system fulfills the requests.

An application may set the size and location of an invisible Window arbitrarily, but the window management system may subsequently change its size and/or location when the Window is made visible. One or more ComponentEvents will be generated to indicate the new geometry.

Windows are capable of generating the following WindowEvents: WindowOpened, WindowClosed, WindowGainedFocus, WindowLostFocus.

Since:
1.0
