iPlanet Application Server Administrator's Guide



Chapter 13   Managing Distributed Data Synchronization


This chapter describes how to group iPlanet Application Server instances into clusters that participate in data synchronization.

The following subjects are described in this chapter:



About Distributed Data Synchronization

Distributed data synchronization maintains the integrity of shared state and session information across multiple iPlanet Application Server instances. This is crucial for partitioned and distributed applications that are hosted on multiple iPlanet Application Server instances.

In most enterprises, several iPlanet Application Server instances support one or more distributed applications. For such distributed applications to run successfully, each server must have access to the relevant information for that application, such as state and session information.

Support for this distribution of information is provided through a system-level distributed data synchronization service that is built into iPlanet Application Server.



How Failover Keeps Data Accessible


The distributed data synchronizer is a system-level service that controls how distributed data, such as application session information, is maintained and made accessible across multiple iPlanet Application Server instances.

Each iPlanet Application Server instance is made up of the following four "engines:"

  • Administrative Server (KAS) - The Administrative Server brings up and monitors the other engines and makes sure that any engines that fail are brought up again.

  • Executive Server (KXS) - Only an Executive Server can be the primary synchronization engine (the synchronizer) for an iPlanet Application Server cluster.

    In a cluster of iPlanet Application Server instances, one of the Executive Servers maintains the distributed (synchronized) information and sets up server roles for all the other servers participating in the cluster. All engines in a cluster know how to access this primary engine and the information that is on this primary engine.

  • Zero or more Java Servers (KJS)

  • Zero or more C++ Servers (KCS)

    If KJS or KCS fails, KAS simply restarts the failed engine. However, if KXS fails, KAS performs the following actions:

    • Brings KXS back up in the currently appropriate role. This role is determined in synchronization with KXS engines in the cluster, and may not necessarily be the role previously occupied.

    • Brings down the KJS and KCS engines.

    • Brings the KJS and KCS engines back up.



What Is a Cluster?

A cluster is a group of iPlanet Application Server instances that share information related to the state of individual user sessions. The primary benefit of using clusters is to improve reliability, to continue user sessions even after process and hardware failures. The secondary benefit is improved load distribution across all available resources.

Servers in a cluster can belong to the same network or to different networks, or to different subnets within the same network. While keeping the servers in a cluster on a common subnet enhances performance, this is not necessary. Members in a cluster communicate through TCP/IP, which uses the IP Addresses and port numbers of the servers in the cluster, to access the KAS and the KXS engines of each instance. As long as this communication takes place, the cluster will be operable. See "Using Firewalls for Security", for more information on how this communication takes place.

In a cluster, the state/session data is stored in the memory of the KXS process for the Primary Sync Server. The configuration data of the cluster is stored in Directory Server. All the iPlanet Application Server instances in your cluster can share a single Directory Server; if the iPlanet Application Server instances in your cluster do not share a single Directory Server, cluster settings must be copied from one Directory Server to another so each server has access to identical cluster information.

This section describes the following topics:


Setting Up Data Synchronization

To set up data synchronization between servers, you need to decide the role that you want a server to perform in the cluster. You can then edit each cluster entry to set up the server roles and register the cluster with the synchronizer service. Finally, you need to start each iPlanet Application Server in the order that is determined by server roles.


Server Roles Within Clusters

You can configure a server's role within a cluster as either a Sync Alternate or a Sync Local. The server that you start first becomes your Primary Sync Server and the server that you start next becomes your Backup Sync Server. This goes on till the number of backup servers you have defined have been started. If you have defined 2 backup servers, then the 2 servers that you start after the Primary Sync Server is started play the role of backup Sync Servers.

The next server that is started (once the defined number of backup servers have been started), is your Sync Alternate. This server takes over if the Primary and the backups fail.

See "Example: Coordination Within a Seven-Server Cluster, to learn more about how servers in a cluster coordinate with each other, while performing the roles that they have been assigned.

The roles that the servers in a cluster can perform are described in the following table.


Table 13-1    Roles for Data Synchronization in a Cluster

Server role

Description

Sync Server

Any iPlanet Application Server instance can be identified as Sync Primary. The Sync Server category contains the Sync Primary, Sync Backups and Sync Alternates.

All Sync Servers are listed in the SyncServers key of iPlanet Registry.

 Sync Primary

The server that is the primary data store, with which all other cluster members communicate for the latest distributed data information.

The first iPlanet Application Server to be started in a cluster must be a Sync Server, and that Sync Server becomes the Sync Primary for the cluster simply because it is started first.

 Sync Backup

Any number of Sync Servers, up to a maximum number (MaxBackups) set by you, that mirrors the information on the Sync Primary. Because each Sync Backup increases the load on the cluster, weigh safety against performance impacts when deciding how many backups to assign.

If the Sync Primary becomes inaccessible, the Sync Backup with the highest priority (which is the lowest integer value) relative to other Sync Backups becomes the next Sync Primary.

 Sync Alternate

A server listed in the SyncServers key in iPlanet Registry that is eligible to become a Sync Backup. If the number of Sync Backups falls below the set maximum, the Sync Alternate with the highest priority relative to other Sync Alternates is promoted to Sync Backup.

Each Sync Alternate performs work similar to that of a Sync Local until the Sync Alternate is promoted to Sync Backup.

Sync Local

A server that uses data synchronization services, but is not eligible to become a Sync Primary, Sync Backup, or Sync Alternate. Sync Locals can use, create, and destroy all distributed data, but are never responsible for maintaining that data.

Sync Locals are not listed in the SyncServers key in iPlanet Registry. However, the SyncServers list in every registry in the cluster contains identification and priority information for each of the Sync Servers in the cluster.

Each Sync Local contacts each of the servers listed in its SyncServers key in iPlanet Registry until the Sync Local finds the Sync Primary, at which time the Sync Local becomes active in the cluster. If the Sync Local goes through its entire SyncServers key in iPlanet Registry without finding the Sync Primary, the Sync Local assumes that the cluster is down, and acts as a local server.

Sync Locals communicate only with the Sync Primary, and the other servers in the cluster are not aware of them.



How a Cluster Communicates


Servers in a cluster need to communicate with each other. To enable this communication, it is necessary that each server identifies with the cluster to which it belongs. An iPlanet Application Server instance becomes an active part of a cluster when you map its synchronizer to the cluster. This procedure is described in .

When an application component requests "write" access to a distributed data source, the write occurs first on the Sync Primary. When the data changes on the Sync Primary, the Sync Primary immediately updates the Sync Backups.

You can map the synchronizer for each iPlanet Application Server instance to only one cluster at a time.


Information Flow Within a Cluster

Sync Backups, Sync Alternates, and Sync Locals communicate with the Sync Primary in a star configuration, as shown in the following illustration:

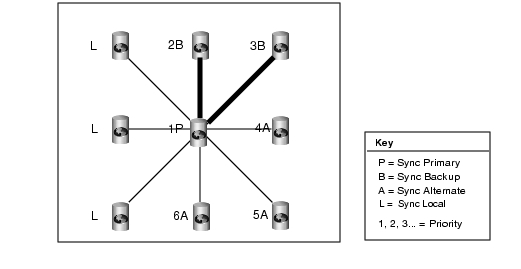

In this illustration, notice that all servers are communicating with the Sync Primary. Also note that no Sync Local is assigned a priority number.

Note also that this illustration is an ideal representation of a cluster that has probably just started and has not experienced failover, as the priority numbers correspond gracefully to the currently assigned roles.



Configuring Clusters


You can set up and manage clusters using the iPlanet Application Server Administration Tool (iASAT). iASAT is a stand-alone graphical user interface tool, using which you can manage all the administrative aspects of iPlanet Application Server. When you configure clusters using iASAT, the relevant back-end entries are created in iPlanet Registry, which you can verify and edit.

You can also configure clusters directly in iPlanet Registry, using iPlanet Registry Editor. However, it is recommended that iASAT be used to create and manage clusters.

The following sections describe how to create and manage clusters, using both iASAT and iPlanet Registry Editor.


Configuring Clusters Using iASAT

When you install iPlanet Application Server on your instance, your host server is automatically taken as the default cluster, with a single node. You can add other registered iPlanet Application Server instances to the existing cluster (your host server), or create a new cluster, or create a completely new cluster.

This section describes the following topics:


To Create a New Cluster

To create a new cluster using iASAT, perform the following tasks:

  1. In the iASAT toolbar, click General to open the General window.

  2. From the left pane of the General window, select the iPlanet Application Server instance with which you want to create a new cluster.

  3. In the right pane of the General window, click the Cluster tab, as shown in the following figure:



  4. In the Cluster Name drop-down list, delete the default cluster name entry, using either the Backspace or the Delete key.

  5. Provide the name of the new cluster and press Enter. You can choose any unique name for the new cluster.

  6. Click Apply Changes. You need to start the server again for the new cluster configuration to take effect.

When you restart the server, you can add other iPlanet Application Server instances to the new cluster as described in the following section.


To Add a Server to a Cluster

To add an unassigned server to a cluster or to reassign a server to a different cluster using iASAT, perform the following steps:

  1. From the iASAT toolbar, click General to open the General window.

  2. Click the Cluster tab.

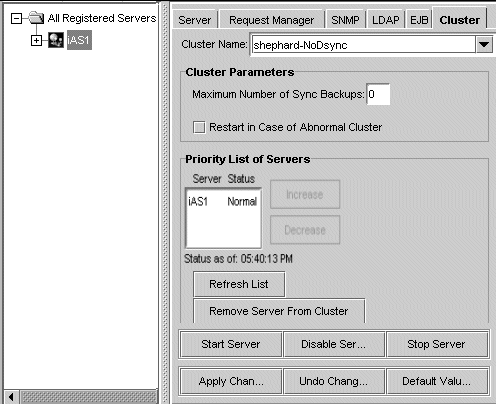

    The following window appears:



    A list of all registered servers is displayed in the left pane of the General window. A list of the server(s) belonging to the existing cluster(s) is displayed in the Priority List of Servers box, in the right pane of the General window. These servers are sorted by their priority in a cluster.

    The Priority List of Servers box also shows the cluster status of a server. Server conditions can be Normal, Dual Primary or No Primary. Click the Refresh List button to immediately update the Priority List of Servers box. By default, this box is updated every 15 seconds.

  3. In the left pane of the General window, click the name of the server you want to add to a cluster.

  4. From the Cluster Name drop-down box, select the name of the cluster to which you want to add the server.

    The Cluster Name drop-down list is populated with the cluster names to which all registered servers belong.

  5. Click Apply Changes.

  6. Stop and start every server in the cluster, including the server you just added.
    Note If you remove a server from a cluster and add it to another, you need to restart all the servers in both clusters, for the change in configuration to take effect.



To Remove a Server From a Cluster

To remove a server from a cluster, perform the following steps:

  1. From the iASAT toolbar, click General to open the General window.

  2. From the left pane of the General window, select an iPlanet Application Server that is a member of the cluster from which you want to remove a server.

  3. Click the Clusters tab in the right pane of the General window, as shown in the following figure:



    A list of all registered servers is displayed in the left pane of the General window. A list of the server(s) belonging to the existing cluster(s) is displayed in the Priority List of Servers box, in the right pane of the General window.

  4. In the Cluster Name drop-down list, select the cluster from which you want to remove a server. The Priority List of Servers box shows all the servers belonging to the selected cluster.

  5. In the Priority List of Servers box, select the server you want to delete and click Remove from Cluster.

  6. Click Apply Changes.

  7. Shut down and restart every server in the cluster, including the server you just removed.


    Note
    • A server that is not a member of a cluster, hence not participating in data synchronization, will be listed under <hostname>-NoDsync, in the cluster list. You cannot remove a server from the <hostname>-NoDsync list.

    • If you want to rename a cluster, delete the cluster name in the Clusters tab, in the General window of iASAT. Type a new name for the cluster and click Apply Changes.



Configuring Clusters Using iPlanet Registry Editor

When you configure clusters using iASAT, the necessary back-end entries are created in iPlanet Registry. You can directly create these entries in iPlanet Registry and configure clusters, without using iASAT. Although this facility is available, it is strongly recommended that you use iASAT to set up and manage your clusters.

This section describes the following topics:


To Create a New Cluster

When you install iPlanet Application Server, a default cluster is automatically created, using the host server. The easiest way to set up and configure clusters is to modify the back-end entries created in iPlanet Registry for this default cluster.

The default cluster bears the name <hostname>-NoDsync, where hostname is the name of your local instance. For instance, if you install iPlanet Application Server on a machine named Bozo, the default cluster entry will be named Bozo-NoDysnc. The default values for this cluster are configured during iPlanet Application Server installation. You can configure the existing default cluster, or configure a completely new cluster, as described in the sections that follow.

To create a new cluster, perform the following tasks:

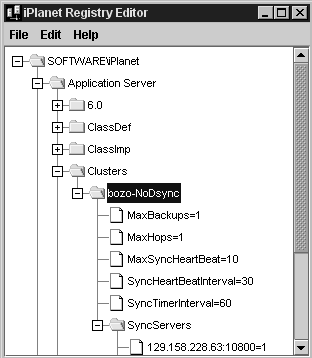

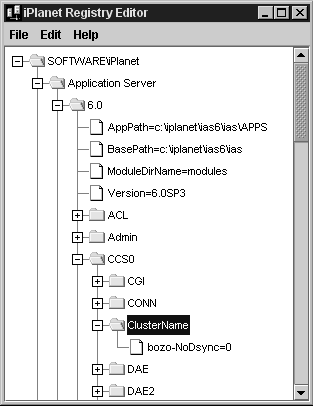

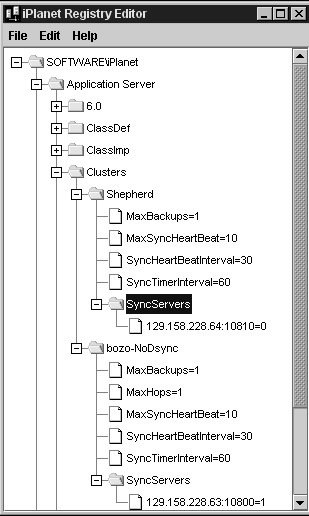

  1. Start iPlanet Registry. (See "About iPlanet Registry Editor)


    Note Note that you can have multiple instances of iPlanet Application Server on UNIX systems, each with its own iPlanet Registry. Ensure that you edit the iPlanet Registry that belongs to the server instance for you want to map the synchronizer.


  2. Open the following key:

    SOFTWARE\iPlanet\Application Server\Clusters\

  3. From the Edit menu, choose Add Key. The Add Key dialog box appears, as shown in the following figure:



  4. In the Key field, provide a name for the new cluster and press OK. A new cluster is created. You now need to configure the cluster, as described in the ensuing steps.

  5. Select the new cluster that you created, and choose Add Value from the Edit menu. The Add Value dialog box appears, as shown in the following figure:



When you add the required values to your cluster, make sure that the type for each value is set to Integer. You can do this by selecting Integer from the Type drop-down list, in the Add Value dialog box.

When you finish adding a value, click OK to confirm. To add another value, select the new cluster you have created and choose Add Value from the Edit menu.

  1. You need to add the following values to the new cluster:

    • MaxBackups

      This value indicates the maximum number of servers that can be assigned as backup servers. The default value for this key is 1.


      Note A key named MaxHops is automatically configured below the MaxBackups key when you create a new cluster using iASAT. This key relates to an unsupported feature. If you create clusters using iPlanet Registry Editor, you need not create an entry for this key.


    • MaxSyncHeartBeat

      This value specifies the maximum number of heartbeat messages that an engine will send to any other engine. The heart-beat mechanism is used to detect an abnormal cluster condition. The default value for this key is 10.

    • SyncHeartBeatInterval

      This value specifies the number of seconds between two heartbeat messages sent from one server to another. The default value is 30.

    • SyncTimerInterval

      This key specifies the intervals, in seconds, at which the synchronization service wakes up and checks to see whether any data has expired. This key specifies how often the timer thread goes through the node list and removes all the nodes that have expired. The default value is 30.

      See Setting Cluster Parameters, for more information on configuring these values for best results.

  2. When you finish adding these values, select the new cluster key and choose Add Key from the Edit menu.

  3. In the AddKey dialog box that appears, type SyncServers.

    This creates a folder called SyncServers under the new cluster key that you have created. When you add servers to your cluster, you will need to add them under this key.

    Your new cluster is created and configured. You can now add servers to your cluster, as described in the next section.


Adding a Server to a Cluster

To add servers to a cluster, perform the following tasks:

  1. Start iPlanet Registry.

    (See About iPlanet Registry Editor)


    Note Note that you can have multiple instances of iPlanet Application Server on UNIX systems, each with its own iPlanet Registry. Ensure that you edit the iPlanet Registry that belongs to the server instance for which you want to map the synchronizer.


  2. Open the following key:

    SOFTWARE\iPlanet\Application Server\Clusters\<clustername>\SyncServers

  3. From the Edit menu, choose Add Value. The Add Value dialog box appears, as shown in the following figure:



  4. In the Name text field, provide the IP Address of the instance which you want to add to the cluster. Type a colon (:) after the IP Address and enter the KXS port number, as shown in the following example:

    host IP address:KXS port number

    Your entry should look like this.

    129.158.228.63:10800

  5. In the Value text field, provide a value that indicates server priority in the cluster. For example, 0 indicates the highest priority and 1 indicates the next level of priority. The lowest priority value is 65,535.

  6. Select Integer from the Type drop-down list and click OK to register your entry in iPlanet Registry.

    When you finish adding the IP Address of a server to the SyncServers key, the back-end entry in iPlanet Registry must look like the following example:



You can now continue to add more servers to your cluster. When you finish adding servers to your cluster, you need to map the servers to the cluster to which they belong. See Mapping the Synchronizer to the Cluster.


To Remove a Server From a Cluster

You can remove a server from a cluster that you have added, by deleting the server's IP Address entry from the SyncServers key.

To remove a server from a cluster using iPlanet Registry Editor, perform the following tasks:

  1. Start iPlanet Registry.

    (See About iPlanet Registry Editor)


    Note Note that you can have multiple instances of iPlanet Application Server on Solaris systems, each with its own iPlanet Registry. Ensure that you edit the iPlanet Registry that belongs to the server instance for you want to map the synchronizer.


  2. Open the following key:

    SOFTWARE\iPlanet\Application Server\Clusters\<clustername>\SyncServers

    You will see the IP Address and port number entries of the servers that have been added to the cluster.

  3. To remove a server, select the required IP Address entry and choose Delete from the Edit menu. Alternatively, you can select the required entry and press the Delete key.

  4. You will be prompted to confirm the action. Click Yes to confirm. The server is removed from the cluster.


    Note
    • Note that you can add the server that you removed, again to the same cluster, or to a different cluster. See To Add a Server to a Cluster for more information.

    • You can't rename a cluster in iPlanet Registry. You will have to delete the cluster name entry and create a new cluster configuration. See To Create a New Cluster for more information.



Determining Sync Server Priority

You can set priority values to sync servers in a cluster. Priority values are used to select between Sync Servers in the same status (either between a group of Sync Backups or between a group of Sync Alternates). Only the order in which instances of iPlanet Application Server are started, not priority, determines which server should be the Sync Primary and which Sync Servers will start out as Sync Backups or Sync Alternates.

You can set the sync server priority using either iASAT or iPlanet Registry Editor.

The following sections describe how you can assign or change priority to a sync server:


To Change Sync Server Priority Using iASAT

To assign a new Sync Server priority to a server that is in a cluster, perform the following tasks:

  1. From the iASAT toolbar, click General to open the General window.

  2. In the left pane of the General window, click a server that is a member of the cluster whose Sync Server priority you want to change.

  3. In the right pane of the General window, click the Clusters tab. The following window appears:



    A list of registered servers is displayed in the left pane of the General window. Another list of servers, sorted by priority in a cluster, is displayed in the right pane.

    The list also shows the status of each server in the cluster. The status should always be Normal. If an abnormal cluster condition exists, the status could be Dual Primary or No Primary. To ensure that these conditions are corrected, see Setting Cluster Parameters. To check for status, click the Refresh List button. By default, server status is updated every 15 seconds.

  4. In the Priority List of Servers box, click the name of the server whose Sync Server priority you want to change.

  5. To change the Sync Server priority of the server, click one of the following buttons next to the Priority List of Servers box:

    • Increase to assign a higher priority.

    • Decrease to assign a lower priority.

  6. For example, if a server has a Sync Server priority of third in line to take over for the Sync Primary, clicking Increase once changes the priority from third to second. A lower number indicates higher priority. For example, 0 indicates the highest priority and 1 indicates the next level of priority. The lowest priority value is 65,535.

  7. Click Apply Changes, when you complete reassigning priorities for the server(s).

  8. For changes in Sync Server priority to apply across a cluster, you must restart each server so that all servers are aware of their new priority sequence, relative to one another.

    The changes you made in iASAT will be reflected in iPlanet Registry. You can also change the sync server priority directly in iPlanet Registry. The next section describes how you can do this.


To Change Sync Server Priority Using iPlanet Registry Editor

To change the sync server priority directly in iPlanet Registry using iPlanet Registry Editor, perform the following tasks:

  1. Start iPlanet Registry.

    (See "About iPlanet Registry Editor")


    Note You can have multiple instances of iPlanet Application Server on UNIX systems, each with its own iPlanet Registry. Ensure that you edit the iPlanet Registry that belongs to the server instance for you want to map the synchronizer.


  2. Open the following key:

    SOFTWARE\iPlanet\Application Server\Clusters\<clustername>\SyncServers

  3. You will see the IP Address and port number entries of the servers that are added to the cluster. Select the sync server whose priority you want to change.

  4. Double-click the entry to open it, or, choose Modify
    Value     from the Edit menu. The Modify Value dialog box appears.

  5. Change the value as required. Note that a lower value indicates higher priority. For example, 0 indicates the highest priority and 1 indicates the next level of priority. The lowest priority value is 65,535.

  6. Restart every server in the cluster, including the one whose priority you just changed. For changes in Sync Server priority to apply across a cluster, you must restart each server so that all servers are aware of their new priority sequence, relative to one another.


Setting Cluster Parameters

For a cluster to function efficiently, you need to set specific parameters that will affect its performance. You can set these parameters using either iASAT or iPlanet Registry Editor. The following sections describe how you can set cluster parameters using either tool:


To Set Cluster Parameters Using iASAT

You can set the following parameters for each cluster, using iASAT:

  • Maximum Number of Sync Backups

    You can specify the maximum number of Sync Backups the Sync Primary will use. In clusters that have many servers, specifying the maximum number of Sync Backups allows you to control how many servers are used as backups.

  • Restart in case of abnormal cluster

    You can also enable the process to restart if an abnormal cluster condition is detected. An abnormal cluster condition is either a cluster that has more than one iPlanet Application Server instances with the Sync Primary (dual-primary) role or no iPlanet Application Server instances with the Sync Primary role.

To set cluster parameters using iASAT, perform the following steps:

  1. From the iASAT toolbar, click General to open the General window.

  2. In the left pane of the General window, select the iPlanet Application Server that is a member of the cluster you want to modify.

  3. In the right pane of the General window, click the Clusters tab. The following window appears

    :

  4. In the right pane of the General window, enter the maximum number of Sync Backups allowed during a single cluster session in the Maximum Number of Sync Backups text field.

  5. Mark the Restart in case of abnormal cluster checkbox to correct any abnormal cluster conditions that are detected.

Restart every server in the cluster. For changes to apply across a cluster, you must restart each instance in the cluster, so that all the instances are aware of the changes.


Note You need to first register a server with iASAT, before you add the server to a cluster.



To Set Cluster Parameters Using iPlanet Registry Editor

To set cluster parameters using iPlanet Registry Editor, perform the following steps:

  1. Stop the server whose iPlanet Registry you want to edit.


    Note Editing the server registry while the server is running can cause serious problems. Also, some changes take effect only after the engine is recycled. It is strongly recommended that you stop all application servers that belong to a cluster, before editing that cluster's settings.


  2. Start iPlanet Registry.

    (See "About iPlanet Registry Editor")


    Note You can have multiple instances of iPlanet Application Server on UNIX systems, each with its own iPlanet Registry. Ensure that you edit the iPlanet Registry that belongs to the server instance for you want to map the synchronizer.


  3. Open the following folder:

       SOFTWARE\iPlanet\Application Server\Clusters\<clustername>\

    In the given example, the default cluster is named bozo-NoDysnc and contains one Sync Server with a priority of 1, as shown in the following figure:



  4. Modify the following values under the <clustername> key, as required:


    Tip To modify a value in iPlanet Registry, perform the following steps:

      1. Double-click the key name or select the key and choose Modify Value from the Edit menu, to bring up the Modify Value dialog box.

      2. Enter the new value in the dialog box.

      3. Click OK to register the change in iPlanet Registry.


  5. MaxBackups

    The maximum number of backup data synchronization servers determines how many Sync Backups are updated with data from the Sync Primary at the same time. For more information about backup data synchronization servers, see What Is a Cluster?.

    As all Sync Backups are updated at the same time, an extra load is created for each additional backup server when you increase the MaxBackups value. Consider the performance impact when you set the number of backup servers, and choose a number that is high enough to provide safety, while not so high as to negatively affect performance. The default value of 1 is usually sufficient.


    Note The next entry is the MaxHops key. This key relates to an unsupported feature. You do not need to modify the value of this key.


  6. MaxSyncHeartBeat

    Check and modify the MaxSyncHeartBeat value as required.

    This value specifies the maximum number of heartbeat messages that an engine will send to any other engine. The heart-beat mechanism is used to detect an abnormal cluster condition. The default value is 10.

    Each heartbeat message consists of the:

    • Host ID and port of the engine that sends the messages

    • Role of the sender in the cluster

    Whenever a heartbeat message is received, an iPlanet Application Server engine will send back a response identifying its role in the cluster.

    A heartbeat starts when a Sync Backup server is promoted to a Sync Primary. The new Sync Primary starts to send heart-beat messages to the original Sync Primary engine. In the case of a temporary network failure, the two engines will become Sync Primaries, thus creating a double-primary (split-primary) abnormal condition. This condition can be automatically corrected.

  7. SyncHeartBeatInterval

    Check and modify the SyncHeartBeatInteveral value as required.

    This value specifies the number of seconds between two heartbeat messages sent from one server to another. The default value is 30 seconds.

  8. SyncTimerInterval

    Check and modify the SyncTimerInterval value as required.

    This key specifies the intervals, in seconds, at which the synchronization service wakes up and checks to see whether any data has expired. This key specifies how often the timer thread goes through the node list and removes all the nodes that have expired.

    If this value is too large, expired data will still be accessible. If this value is too small, the frequent waking up and checking can degrade system performance. The default value of 60 seconds is good for most clusters.

  9. Close iPlanet Registry Editor when you finish setting the values you want.

  10. Restart all the servers that will be affected by the modifications.


    Note You can also set cluster parameters using iASAT. See To Set Cluster Parameters Using iASAT for more information.


After correctly completing these steps, you have redefined the default cluster. Now, follow the procedure in to enable communication between the servers in the cluster


Mapping the Synchronizer to the Cluster

Each iPlanet Application Server has an inbuilt data synchronizer, which helps synchronize the data within the server and also the server's communication with other servers.

For a cluster to communicate, the synchronizer in each server must know to which cluster the server belongs. If you create clusters using iASAT, the server synchronizer is mapped automatically. If you create clusters manually, using iPlanet Registry Editor, you need to perform the following tasks, to map the synchronizer to its cluster:

  1. Stop the server whose iPlanet Registry you want to edit.


    Note Please be noted that editing the server registry while the server is running can cause serious problems. Also, some changes take effect only after the engine is recycled. It is strongly recommended that you stop all application servers that belong to a cluster, before editing that cluster's settings.


  2. Start iPlanet Registry.

    (See "About iPlanet Registry Editor")


    Note Note that you can have multiple instances of iPlanet Application Server on UNIX systems, each with its own iPlanet Registry. Ensure that you edit the iPlanet Registry that belongs to the server instance for you want to map the synchronizer.


  3. Open the following key:

       SOFTWARE\iPlanet\Application Server\6.0\CCS0\ClusterName\

    The following window appears:



  4. The default cluster name will be listed. You can delete the default cluster name and specify a new cluster name for the cluster.

  5. Close iPlanet Registry.

  6. Start the server whose synchronizer you just mapped.

The synchronizer is now be mapped to the cluster.



How Sync Server Prioritization Improves Coordination


This section discusses general priority issues and gives a comprehensive example of cluster coordination.

Priority values are used only to select between Sync Servers in the same status (either between a group of Sync Backups or between a group of Sync Alternates). Only the order in which instances of iPlanet Application Server are started, not priority, determines which server should be the Sync Primary and which Sync Servers will start out as Sync Backups or Sync Alternates.

A Sync Local is not assigned a priority because it is not eligible to become a Sync Server, so a Sync Local cannot become a Sync Primary, Sync Backup, or Sync Alternate.

Which Sync Server becomes the Sync Primary in a cluster is determined simply by which Sync Server is started first. The next Sync Servers that start, up to the value in MaxBackups, become Sync Backups. When the Sync Primary fails, the Sync Backup with the highest priority, which is the lowest integer value, becomes the new Sync Primary.

When a Sync Backup becomes a Sync Primary, the number of Sync Backups falls below the value of MaxBackups. To restore the number of Sync Backups, the Sync Alternate with the highest priority becomes a Sync Backup.


Example: Coordination Within a Seven-Server Cluster

The following example illustrates cluster coordination through server roles, and the part that priority plays in determining those roles. As you trace the role changes through the example, keep in mind that server fallibility has been purposely exaggerated to provide many scenarios.

Although not required, you can ease cluster maintenance by assigning the highest priority to the iPlanet Application Server instance that you will start as the Sync Primary, and the next highest priorities (in descending order) to the Sync Backups. Be aware that the cluster in this example does not do this. Also, notice that this cluster does not follow the recommended practice of starting the servers in priority order.

Assume a seven-server cluster with iPlanet Application Server instances that are numbered 0 to 6. Servers 0 through 4 are Sync Servers that are assigned the same priorities as their server numbers (for example, server 0 has a priority of zero). Servers 5 and 6 are Sync Locals. MaxBackups for the cluster is set to 2.

  • Server 3 is brought up first, so it becomes the Sync Primary.

  • Server 4 is started next, and it becomes a Sync Backup.

  • Server 6 is started next, and it is a Sync Local.

  • Server 1 is started next, and it becomes a Sync Backup.

  • Server 2 is started next, and it becomes a Sync Alternate.

  • Server 5 is started next, and it is a Sync Local.

  • Server 0 is started next, and it becomes a Sync Alternate.

Server 3 fails and goes down. Between the two Sync Backups, server 4 and server 1, server 1 has the higher priority (lower integer value) and it becomes the new Sync Primary. This leaves server 4 as the only Sync Backup.

Because MaxBackups is set to 2, one of the Sync Alternates is converted to a Sync Backup. Server 0 becomes the new Sync Backup because it has a higher priority than the other remaining Sync Alternate, server 2. At this point:

  • Server 1 is the Sync Primary.

  • Servers 0 and 4 are Sync Backups.

  • Server 2 is a Sync Alternate.

  • Servers 5 and 6 are Sync Locals.

  • Server 3 is off-line.

Server 3 comes back online. It becomes a Sync Alternate. Even though it was originally a Sync Primary, the synchronizer now sees it as just another Sync Server, so the server does not resume its Sync Primary role. At this point:

  • Server 1 is the Sync Primary.

  • Servers 0 and 4 are Sync Backups.

  • Servers 2 and 3 are Sync Alternates.

  • Servers 5 and 6 are Sync Locals.

Server 0 fails. Server 2 becomes a Sync Backup because it has the higher priority (lower integer value) among the Sync Alternates. At this point:

  • Server 1 is the Sync Primary.

  • Servers 2 and 4 are Sync Backups.

  • Server 3 is a Sync Alternate.

  • Servers 5 and 6 are Sync Local servers.

  • Server 0 is off-line.

Server 0 comes back online and becomes a Sync Alternate. Server 1, the Sync Primary, fails. Among the Sync Backups, server 2 has a higher priority than server 4, so server 2 becomes the new Sync Primary. Server 0 becomes a Sync Backup. At this point:

  • Server 2 is the Sync Primary.

  • Servers 0 and 4 are Sync Backups.

  • Server 3 is a Sync Alternate.

  • Servers 5 and 6 are Sync Locals.

  • Server 1 is off-line.

Server 2 fails. Server 0 becomes the Sync Primary and server 3 becomes a Sync Backup. At this point:

  • Server 0 is the Sync Primary.

  • Servers 3 and 4 are Sync Backups.

  • Servers 5 and 6 are Sync Locals.

  • Servers 1 and 2 are off-line.

Server 3 fails. Even though only one Sync Backup remains, neither server 5 nor server 6 is considered because neither is a Sync Server. At this point:

  • Server 0 is the Sync Primary.

  • Server 4 is a Sync Backup.

  • Servers 5 and 6 are Sync Locals.

  • Servers 1 and 2 and 3 are off-line.


Previous     Contents     Index     DocHome     Next
Copyright © 2001 Sun Microsystems, Inc. Some preexisting portions Copyright © 2001 Netscape Communications Corp. All rights reserved.

Last Updated June 25, 2001
