1 Overview of System Status Indicators and LEDs

This manual provides instructions for servicing Oracle Database Appliance hardware. Oracle Database Appliance comes in four versions:

• Oracle Database Appliance X5-2

• Oracle Database Appliance X4-2

• Oracle Database Appliance X3-2

• Oracle Database Appliance original version (also referred to as "version 1" or "V1")

The following sections in this chapter describe system status indicators and LEDs:

• Oracle Database Appliance X5-2 Status Indicators

• Oracle Database Appliance X3-2/X4-2 Status Indicators

• Oracle Database Appliance (Original Version) Status Indicators

For information about system features and racking, refer to the Oracle Database Appliance Owner's Guide. For information on cabling, Oracle ILOM initial setup, and appliance software setup, refer to the Oracle Database Appliance Getting Started Guide.

Oracle Database Appliance X5-2 Status Indicators

This section describes the status indicators for Oracle Database Appliance X5-2.

• Server Node Status Indicators

• Storage Shelf Status Indicators

Server Node Status Indicators

These topics describe Oracle Database Appliance X5-2 server node status indicators (LEDs).

Note:

The links below take you to topics outside of the Oracle Database Appliance library to the Oracle Server X5-2 documentation library. Use your browser's Back button to return to the Oracle Database Appliance library.

• Server Node General Status Indicators

• Server Node Fan Status Indicators

• Server Node Storage Drive Status Indicators

• Server Node Power Supply Status Indicators

• Server Node Motherboard Status Indicators

Storage Shelf Status Indicators

Storage shelves are supported with Oracle Database Appliance X5-2. They include controls and indicators on the front panel, hard drives, SSD drives, power supplies, and SAS I/O modules.

Storage Shelf Front Panel and Drive Indicators

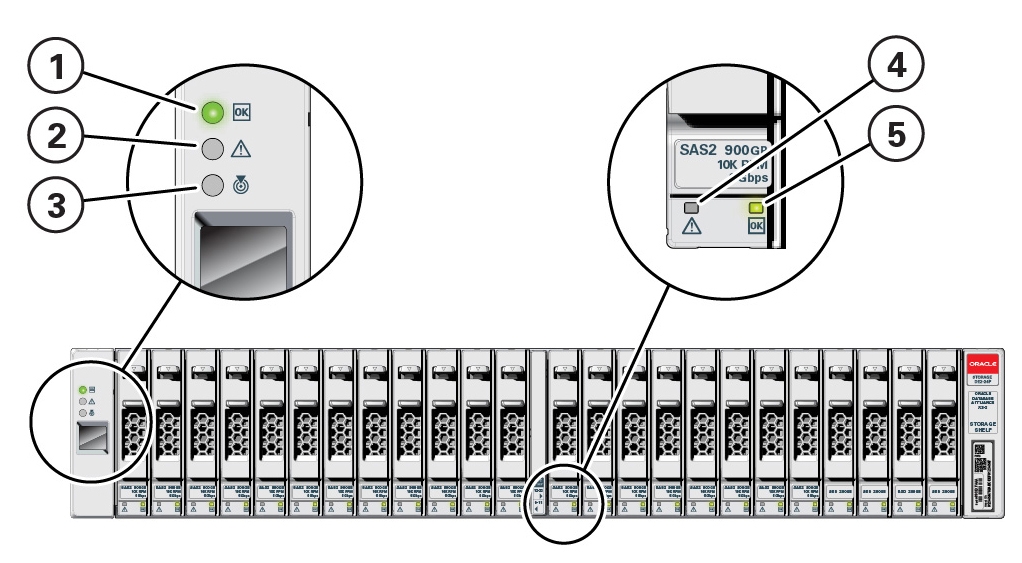

The following figure shows the controls and indicators on the storage shelf front panel and drives.

Callout	Indicator/LED: Color	State Meaning
1	OK: green	On – The storage shelf is powered on and operating normally. Off – The storage shelf is unplugged or turned off.
2	Service Required: amber	Off – Normal operation. Steady on – A fault is present in the storage shelf.
3	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off.
4	Drive Service Required: amber	Off – Normal operation. Steady on – A fault is present in the disk drive.
5	Power/Activity: green	On – The drive is installed and recognized by the system but there is no drive activity. Blink – The LED blinks randomly in response to data being written to or read from the drive. Off – The drive is powered off or the installed drive is not recognized by the system.

Storage Shelf Back Panel Indicators

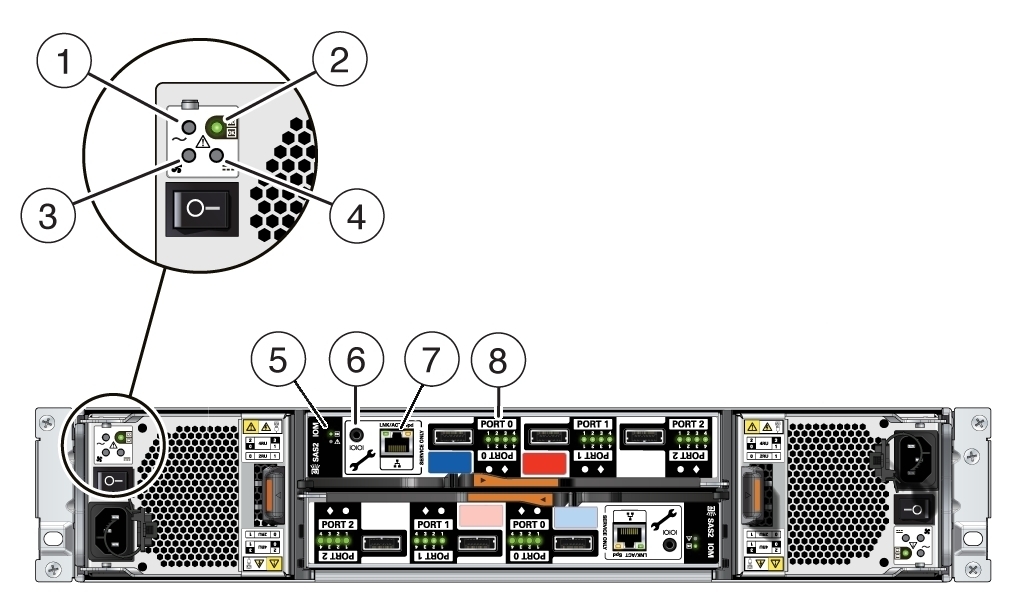

The following figure shows the controls and indicators on the storage shelf back panel and drives.

Callout	Indicator/LED: Color	State Meaning
1	AC power fault indicator: amber	On – Indicates an AC power fault. Off – Normal operation.
2	Power supply status indicator: green	On – The power supply is operating normally. Off – The power supply is unplugged or turned off.
3	Fan fail indicator: amber	On – The fan is faulty. Off – Normal operation.
4	DC power fail indicator: amber	On – The power supply is faulty. Off – Normal operation.
5	SAS I/O Module status indicators: green or amber	OK – Lights green to indicate normal operation. Service Required – Lights amber to indicate a fault with the I/O module (top module is 0; bottom module is 1).
6	Reserved	This port is reserved for Oracle Service.
7	Network port (reserved)	This port is reserved for Oracle Service.
8	Host SAS port activity indicators (x4 per port): green	Lights green to indicate host SAS link activity.

Oracle Database Appliance X3-2/X4-2 Status Indicators

This section describes the status indicators for Oracle Database Appliance X3-2 and Oracle Database Appliance X4-2.

• Server Node Status Indicators

• Storage Shelf Status Indicators

Server Node Status Indicators

These topics describe Oracle Database Appliance X3-2 and Oracle Database Appliance X4-2 server node status indicators (LEDs).

Note:

The links in the following table take you to topics outside of the Oracle Database Appliance library to the Sun Server X3-2 and Sun Server X4-2 documentation libraries. Use your browser's Back button to return to the Oracle Database Appliance library.

ODA X3-2	ODA X4-2
Server Node General Status Indicators	Server Node General Status Indicators
Server Node Fan Status Indicators	Server Node Fan Status Indicators
Server Node Storage Drive Status Indicators	Server Node Storage Drive Status Indicators
Server Node Power Supply Status Indicators	Server Node Power Supply Status Indicators
Server Node Motherboard Status Indicators	Server Node Motherboard Status Indicators

Storage Shelf Status Indicators

Storage shelves are supported with Oracle Database Appliance X3-2/X4-2. They include controls and indicators on the front panel, hard drives, SSD drives, power supplies, and SAS I/O modules.

Storage Shelf Front Panel and Drive Indicators

The following figure shows the controls and indicators on the storage shelf front panel and drives.

Callout	Indicator/LED: Color	State Meaning
1	OK: green	On – The storage shelf is powered on and operating normally. Off – The storage shelf is unplugged or turned off.
2	Service Required: amber	Off – Normal operation. Steady on – A fault is present in the storage shelf.
3	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off.
4	Drive Service Required: amber	Off – Normal operation. Steady on – A fault is present in the disk drive.
5	Power/Activity: green	On – The drive is installed and recognized by the system but there is no drive activity. Blink – The LED blinks randomly in response to data being written to or read from the drive. Off – The drive is powered off or the installed drive is not recognized by the system.

Storage Shelf Back Panel Indicators

The following figure shows the controls and indicators on the storage shelf back panel and drives.

Callout	Indicator/LED: Color	State Meaning
1	AC power fault indicator: amber	On – Indicates an AC power fault. Off – Normal operation.
2	Power supply status indicator: green	On – The power supply is operating normally. Off – The power supply is unplugged or turned off.
3	Fan fail indicator: amber	On – The fan is faulty. Off – Normal operation.
4	DC power fail indicator: amber	On – The power supply is faulty. Off – Normal operation.
5	SAS I/O Module status indicators: green or amber	OK – Lights green to indicate normal operation. Service Required – Lights amber to indicate a fault with the I/O module (top module is 0; bottom module is 1).
6	Reserved	This port is reserved for Oracle Service.
7	Network port (reserved)	This port is reserved for Oracle Service.
8	Host SAS port activity indicators (x4 per port): green	Lights green to indicate host SAS link activity.

Oracle Database Appliance (Original Version) Status Indicators

This section describes the status indicators for the original version Oracle Database Appliance.

• Server Node Status Indicators

• Server Node Fan Indicators

• Storage and Boot Drive Status Indicators

• Power Supply Status Indicators

• Rear Server Node Status Indicators

• Server Node Internal LEDs

• Ethernet Port Indicators

Server Node Status Indicators

The following table lists and describes the general status indicators on the front and rear panel of each Oracle Database Appliance (original version) server node.

Callout	Indicator/LED: Color	State Meaning
1	Locate button/LED: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off. It is also used to prove physical presence. Indicator Test Mode – Push and hold the Locate button for 5 seconds to activate the push to test feature, which causes all LEDs except disk activity and power supply LEDs to light for 15 seconds.
2	SP OK/Fault: bi-color	Off – No power is supplied to the SP or it is not functional. Amber – When lit indicates an SP fault. Green – When steady on indicates that Oracle ILOM is fully functional. If blinking, POST diagnostics are running, Oracle ILOM is booting, or firmware is updating. Note -  The amber LED indicates the status of the watchdog timer. The watchdog timer runs continuously, but it times out if it is not reset by Oracle ILOM. If it times out, the amber LED is lit and the green LED is extinguished.
3	Ready to Remove: blue	Off – Normal operation. Fast Blink – The system is preparing a customer-replaceable unit (CRU) (disk drive, fan module, or power supply) for safe removal but it is not ready yet. Steady on – The CRU can be safely removed.
4	Service Required: amber	Off – Normal operation. Steady on – A fault is present in system or a subsystem within the chassis.
5	Power/OK: green	This LED indicates the operational state of the chassis. This LED can be in the following states: Off – AC power is not present or the Oracle ILOM boot has not completed. Standby blink – Standby power is on and Oracle ILOM can be accessed, but full chassis power is off. The LED blinks at a 10 percent duty cycle (0.1 second on, 2.9 seconds off), that is, the light is on for a very short period of time. Slow blink – The startup sequence has been initiated on the host. The LED blinks at a 50 percent duty cycle, which is noticeably longer than the STANDBY BLINK. This pattern should begin immediately following powering on the system. This status indicates either 1) power-on self-test (POST) diagnostics running on system host or 2) the host is transitioning from the powered-on state to the standby state on shutdown. Steady on – The system is powered on and all host POST tests passed. The system is one of the following states: 1) the system host is ready to boot, or 2) the system host is booting the operating system (OS), or 3) the system host is running the OS.
6	Over temperature: amber	Off – Normal operation. Steady on – The system is experiencing an over-temperature warning condition. Note -  This is a warning indication, not a fatal over temperature. Failure to correct this can result in the system over heating and shutting down.
7	Rear Component Failure: amber	Off – Normal operation. Steady on – The system has detected a power supply fault, a fan fault, or a rear 2.5-inch disk drive fault. This fault condition is associated with chassis components located in the rear of the chassis. This fault might be caused by: Power supply failure (AC fault, 12V/3.3Vaux fault, or power supply fan fault) Rear fan failure Rear 2.5-inch disk failure

Server Node Fan Indicators

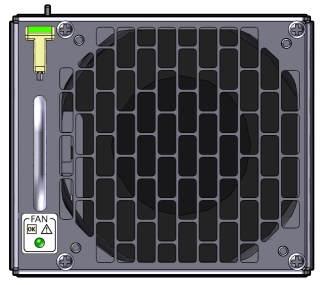

Each fan module for Oracle Database Appliance (original version) has a single bi-colored LED indicating both fan OK and fan fault conditions. The LED lights green to indicate that the fan module is properly plugged into the system and operating within the expected RPM range for a given power management setting. The LED lights amber to indicate a fan fault.

Note:

The LEDs on the fan modules are not lit amber on initial system power-on. The fan amber LED only lights if Oracle ILOM detects a failure that indicates a faulty fan module or a missing fan that should be installed.

Indicator/LED: Color	State Meaning
OK: green	Steady on – The fan is functioning normally. Off – Chassis 3.3V_Standby power is off or there is a fan fault.
Service Required: amber	Off – Normal operation. Steady on – A fault has been detected with the fan. Note -  The front and rear panel Service Required LEDs are also lit if the system detects a fan module fault.

Storage and Boot Drive Status Indicators

Each storage drive for Oracle Database Appliance (original version) includes three LEDs. They are the same on the front storage drives and the rear-mounted boot drives. See the following table.

Callout	Indicator/LED: Color	State Meaning
1	Ready to Remove: blue	Off – Normal operation. Fast blink – The system is preparing a disk drive for safe removal but it is not ready yet. Steady on – The disk drive can be safely removed.
2	Service Required: amber	Off – Normal operation. Steady on – A fault is present in the disk drive.
3	OK/Activity: green	On – The drive is installed and recognized by the system but there is no drive activity. Blink – The LED blinks randomly in response to data being written to or read from the drive. Off – The drive is powered off or the installed drive is not recognized by the system.

Power Supply Status Indicators

There are three status LEDs on each power supply for Oracle Database Appliance (original version), as shown in the following table.

Callout	Indicator/LED: Color	State Meaning
1	OK: green	On – The power supply is operating normally. Off – The power supply is unplugged or turned off.
2	Service Required: amber	On – The power supply is faulty. The front REAR PS LED and the front and rear panel Service Required LEDs are also lit if the system detects a power supply fault. Off – Normal operation.
3	AC Present: green	On – The power supply is plugged in and AC power is available, regardless of system power state. Off – The power supply is unplugged or turned off.

Rear Server Node Status Indicators

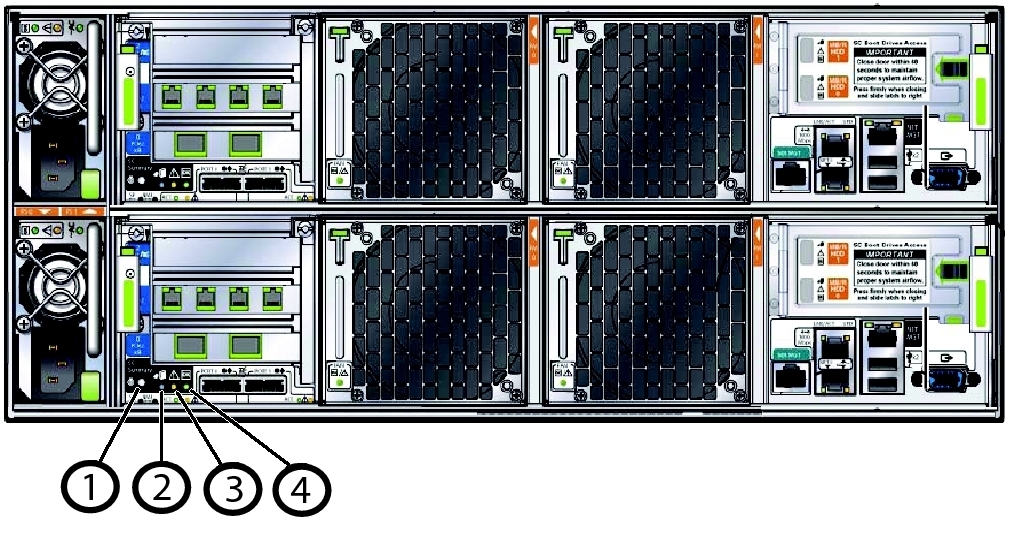

Each server node in Oracle Database Appliance (original version) has four summary status LEDs that are located on its back panel, as shown in the following table.

Callout	Indicator/LED: Color	State Meaning
1	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off. Indicator Test Mode – Push and hold the Locate button for 5 seconds to activate the push to test feature, which causes all LEDs except disk activity and power supply LEDs to light for 15 seconds.
2	Ready to Remove: blue	Off – Normal operation. Fast Blink – The system is preparing a customer-replaceable unit (CRU) (disk drive, fan module, or power supply) for safe removal but it is not ready yet. Steady on – The CRU can be safely removed.
3	Service Required: amber	Off – Normal operation. Steady on – A fault is present in system or a subsystem within the chassis.
4	Power/OK: green	This LED indicates the operational state of the chassis. This LED can be in the following states: Off – AC power is not present or the Oracle ILOM boot has not completed. Standby blink – Standby power is on and Oracle ILOM can be accessed, but full chassis power is off. The LED blinks at a 10 percent duty cycle (0.1 second on, 2.9 seconds off), that is, the light is on for a very short period of time. Slow blink – The startup sequence has been initiated on the host. The LED blinks at a 50 percent duty cycle, which is noticeably longer than the STANDBY BLINK. This pattern should begin immediately following powering on the system. This status indicates either 1) power-on self-test (POST) diagnostics running on system host or 2) the host is transitioning from the powered-on state to the standby state on shutdown. Steady on – The system is powered on and all host POST tests passed. The system is one of the following states: 1) the system host is ready to boot, or 2) the system host is booting the operating system (OS), or 3) the system host is running the OS.

Server Node Internal LEDs

The following section describes the internal LEDs for Oracle Database Appliance (original version). Each server node contains the following internal LEDs:

Note:

A super capacitor (located on the motherboard) provides power to light the server node fault LEDs for up to 15 minutes after the server node is removed from a powered-on system chassis. After approximately 15 minutes, the capacitor discharges enough so that it cannot light the fault LEDs.

• Fault Remind Power Good LED.

  This green LED lights each time the Fault Remind button is pressed, if the capacitor has enough of a charge to light the fault LEDs. This LED is located next to the Fault Remind button.

  For the location of Fault Remind button and the Fault Remind Power Good LED, see Remove Faulty DIMMs.

• Memory DIMM Fault LEDs

  Each DIMM slot has an adjacent DIMM fault LED. If a DIMM fails, the adjacent LED lights when the Fault Remind button is pressed.

  For the location of Fault Remind button and the DIMM fault LEDs, see Remove Faulty DIMMs.

• CPU Fault LEDs

  Both CPUs have an associated CPU fault LED. If a CPU fails, the associated LED lights when the Fault Remind button is pressed.

  For the location of CPU fault LEDs, see Remove Processor (CPU).

• Ethernet Port LEDs

  Each server node has two host Ethernet ports (NET0 and NET1) and an SP network management port (NET MGT). Each of these has two LEDs that indicate link activity and port speed. See Ethernet Port Indicators.

Ethernet Port Indicators

Each server node in Oracle Database Appliance (original version) has two host Ethernet ports (NET0 and NET1) and an SP network management port (NET MGT). Each of these has two LEDs that indicate link activity and port speed.

Callout	Indicator/LED: Color	State Meaning
1	Link Activity: green	Lights to indicate link activity.
2	Link Speed: bi-colored	Green – Link established at fastest speed. Amber – Link established at next fastest speed or slower speeds. Off – Link at slowest speed, which is 10 Mbps.
