Remove a Subscriber

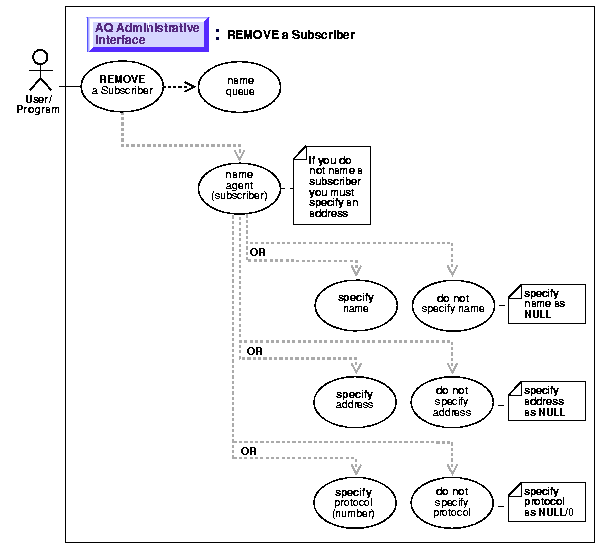

Figure 9-18 Use Case Diagram: Remove a Subscriber

To refer to the table of all basic operations having to do with the Administrative Interface see: "Use Case Model: Administrative Interface -- Basic Operations"

Purpose:

Remove a default subscriber from a queue.

Usage Notes

This operation takes effect immediately and the containing transaction is committed. All references to the subscriber in existing messages are removed as part of the operation.

Syntax

See Chapter 3, "AQ Programmatic Environments" for a list of available functions in each programmatic environment. Use the following syntax references for each programmatic environment:

• PL/SQL (DBMS_AQADM Package): Oracle8i Supplied PL/SQL Packages Reference DBMS_AQADM, REMOVE_SUBSCRIBER procedure

• Visual Basic (OO4O): There is no applicable syntax reference for this use case

• Java (JDBC): Oracle8i Supplied Java Packages Reference oracle.AQ) removeSubscriber

Examples

See Chapter 3, "AQ Programmatic Environments" for a list of available functions in each programmatic environment. Examples are provided in the following programmatic environments.

Examples in the following programmatic environments are provided:

• PL/SQL (DBMS_AQADM): Remove Subscriber

• VB (OO4O): Example not provided.

• Java (JDBC): Remove a Subscriber

PL/SQL (DBMS_AQADM): Remove Subscriber

DECLARE
   subscriber       sys.aq$_agent;
BEGIN
   subscriber := sys.aq$_agent('subscriber1','aq2.msg_queue2', NULL);
   DBMS_AQADM.REMOVE_SUBSCRIBER(
      queue_name => 'aq.multi_queue',
      subscriber => subscriber);
END;

Java (JDBC): Remove a Subscriber

/* Remove a subscriber */
public static void example(AQSession aq_sess) throws AQException
{
     AQQueue         queue;
     AQAgent         agent1;
     AQAgent         agent2;

     /* Get the queue object */
     queue = aq_sess.getQueue("AQ", "multi_queue");

     /* add a subscriber */
     agent1 = new AQAgent("subscriber1", "aq2.msg_queue2@london");

     queue.removeSubscriber(agent1);
}
