Operational Interface: Basic Operations, 9 of 16

Listen to One (Many) Single-Consumer Queue(s)

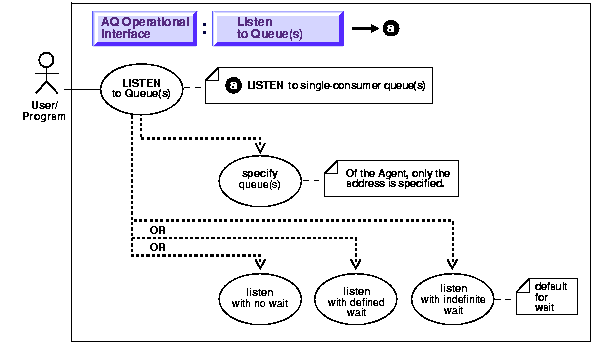

Figure 11-8 Use Case Diagram: Listen to One (Many) Single-Consumer Queue(s)

To refer to the table of all basic operations having to do with the Operational Interface see:

"Use Case Model: Operational Interface -- Basic Operations"

Usage Notes

Not applicable.

Syntax

See Chapter 3, "AQ Programmatic Environments" for a list of available functions in each programmatic environment. Use the following syntax references for each programmatic environment:

PL/SQL (DBMS_AQ Package): Oracle8i Supplied PL/SQL Packages Reference DBMS_AQ, LISTEN procedure
C (OCI): Oracle Call Interface Programmer's Guide Relational Functions, OCIAQListen
Visual Basic (OO4O) (Oracle Objects for OLE (OO4O) Online Help): From Help Topics, Contents tab, select OO4O Automation Server > OBJECTS > OraAQ Object > Monitoring Messages
Feature not available through the Java API

Examples

See Chapter 3, "AQ Programmatic Environments" for a list of available functions in each programmatic environment. Examples in the following programmatic environments are provided:

PL/SQL (DBMS_AQ Package): Listen to Queue(s)

/* The listen call allows you to monitor a list of queues for messages for
   specific agents. You need to have dequeue privileges for all the queues
   you wish to monitor. */

Listen to Single-Consumer Queue (Timeout of Zero).

DECLARE
   Agent_w_msg      aq$_agent;
   My_agent_list    dbms_aq.agent_list_t;

BEGIN
   /* NOTE:  MCQ1, MCQ2, MCQ3 are multi-consumer queues  in SCOTT's schema
   *        SCQ1, SCQ2, SCQ3 are single consumer queues in SCOTT's schema
   */

   Qlist(1):= aq$_agent(NULL, 'scott.SCQ1',  NULL);
   Qlist(2):= aq$_agent(NULL, 'SCQ2', NULL);
   Qlist(3):= aq$_agent(NULL, 'SCQ3', NULL);

   /* Listen with a time-out of zero: */
   DBMS_AQ.LISTEN(
      Agent_list   =>   My_agent_list,
      Wait         =>   0,
      Agent        =>   agent_w_msg);
   DBMS_OUTPUT.PUT_LINE('Message in Queue :- ' ||  agent_w_msg.address);
   DBMS_OUTPUT.PUT_LINE('');
END;

C (OCI): Listen to Single-Consumer Queue(s)

Listening for Single Consumer Queues with Zero Timeout

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <oci.h>

static void checkerr(errhp, status)
OCIError *errhp;
sword status;
{
    text errbuf[512];
    ub4 buflen;
    sb4 errcode;

    switch (status)
    {
   case OCI_SUCCESS:
       break;
   case OCI_SUCCESS_WITH_INFO:
       printf("Error - OCI_SUCCESS_WITH_INFO\n");
       break;
   case OCI_NEED_DATA:
       printf("Error - OCI_NEED_DATA\n");
       break;
   case OCI_NO_DATA:
       printf("Error - OCI_NO_DATA\n");
       break;
   case OCI_ERROR:
       OCIErrorGet ((dvoid *) errhp, (ub4) 1, (text *) NULL, &errcode,
       errbuf, (ub4) sizeof(errbuf), (ub4) OCI_HTYPE_ERROR);
       printf("Error - %s\n", errbuf);
       break;
   case OCI_INVALID_HANDLE:
       printf("Error - OCI_INVALID_HANDLE\n");
       break;
   case OCI_STILL_EXECUTING:
       printf("Error - OCI_STILL_EXECUTE\n");
       break;
   case OCI_CONTINUE:
       printf("Error - OCI_CONTINUE\n");
       break;
   default:
   break;
    }
}

/* set agent into descriptor */
void SetAgent(agent, appname, queue,errhp)

OCIAQAgent  *agent;
text        *appname;
text        *queue;
OCIError    *errhp;
{

  OCIAttrSet(agent, OCI_DTYPE_AQAGENT,
     appname ? (dvoid *)appname : (dvoid *)"",
     appname ? strlen((const char *)appname) : 0,
        OCI_ATTR_AGENT_NAME, errhp);

  OCIAttrSet(agent, OCI_DTYPE_AQAGENT,
     queue ? (dvoid *)queue : (dvoid *)"",
     queue ? strlen((const char *)queue) : 0,
        OCI_ATTR_AGENT_ADDRESS, errhp);

  printf("Set agent name to %s\n", appname ? (char *)appname : "NULL");
  printf("Set agent address to %s\n", queue ? (char *)queue : "NULL");
}

/* get agent from descriptor */
void GetAgent(agent, errhp)
OCIAQAgent *agent;
OCIError   *errhp;
{
text      *appname;
text      *queue;
ub4       appsz;
ub4       queuesz;

  if (!agent )
  {
    printf("agent was NULL \n");
    return;
  }
  checkerr(errhp, OCIAttrGet(agent, OCI_DTYPE_AQAGENT,
     (dvoid *)&appname, &appsz, OCI_ATTR_AGENT_NAME, errhp));
  checkerr(errhp, OCIAttrGet(agent, OCI_DTYPE_AQAGENT,
     (dvoid *)&queue, &queuesz, OCI_ATTR_AGENT_ADDRESS, errhp));
  if (!appsz)
     printf("agent name: NULL\n");
  else printf("agent name: %.*s\n", appsz, (char *)appname);
  if (!queuesz)
     printf("agent address: NULL\n");
  else printf("agent address: %.*s\n", queuesz, (char *)queue);
}

int main()
{
  OCIEnv *envhp;
  OCIServer *srvhp;
  OCIError *errhp;
  OCISvcCtx *svchp;
  OCISession *usrhp;
  OCIAQAgent *agent_list[3];
  OCIAQAgent *agent = (OCIAQAgent *)0;
  /* added next 2 121598 */
  int i;

 /* Standard OCI Initialization */

  OCIInitialize((ub4) OCI_OBJECT, (dvoid *)0,  (dvoid * (*)()) 0,
     (dvoid * (*)()) 0,  (void (*)()) 0 );

  OCIHandleAlloc( (dvoid *) NULL, (dvoid **) &envhp,
             (ub4) OCI_HTYPE_ENV, 0, (dvoid **) 0);

  OCIEnvInit( &envhp, (ub4) OCI_DEFAULT, 0, (dvoid **) 0);

  OCIHandleAlloc( (dvoid *) envhp, (dvoid **) &errhp, (ub4) OCI_HTYPE_ERROR,
     0, (dvoid **) 0);

  OCIHandleAlloc( (dvoid *) envhp, (dvoid **) &srvhp, (ub4) OCI_HTYPE_SERVER,
     0, (dvoid **) 0);

  OCIServerAttach( srvhp, errhp, (text *) 0, (sb4) 0, (ub4) OCI_DEFAULT);

  OCIHandleAlloc( (dvoid *) envhp, (dvoid **) &svchp, (ub4) OCI_HTYPE_SVCCTX,
     0, (dvoid **) 0);

  /* set attribute server context in the service context */
  OCIAttrSet( (dvoid *) svchp, (ub4) OCI_HTYPE_SVCCTX, (dvoid *)srvhp, (ub4) 0,
     (ub4) OCI_ATTR_SERVER, (OCIError *) errhp);

  /* allocate a user context handle */
  OCIHandleAlloc((dvoid *)envhp, (dvoid **)&usrhp, (ub4) OCI_HTYPE_SESSION,
      (size_t) 0, (dvoid **) 0);

  /* allocate a user context handle */
  OCIHandleAlloc((dvoid *)envhp, (dvoid **)&usrhp, (ub4) OCI_HTYPE_SESSION,
     (size_t) 0, (dvoid **) 0);

  OCIAttrSet((dvoid *)usrhp, (ub4)OCI_HTYPE_SESSION,
     (dvoid *)"scott", (ub4)strlen("scott"), OCI_ATTR_USERNAME, errhp);

  OCIAttrSet((dvoid *) usrhp, (ub4) OCI_HTYPE_SESSION,
      (dvoid *) "tiger", (ub4) strlen("tiger"),
      (ub4) OCI_ATTR_PASSWORD, errhp);

  OCISessionBegin (svchp, errhp, usrhp, OCI_CRED_RDBMS, OCI_DEFAULT);

  OCIAttrSet((dvoid *)svchp, (ub4)OCI_HTYPE_SVCCTX,
     (dvoid *)usrhp, (ub4)0, OCI_ATTR_SESSION, errhp);

  /* AQ LISTEN Initialization - allocate agent handles */
  for (i = 0; i < 3; i++)
  {
     agent_list[i] = (OCIAQAgent *)0;
     OCIDescriptorAlloc(envhp, (dvoid **)&agent_list[i],
         OCI_DTYPE_AQAGENT, 0, (dvoid **)0);
  }

  /*
   *   SCQ1, SCQ2, SCQ3 are single consumer queues in SCOTT's schema
   */

  SetAgent(agent_list[0], (text *)0, "SCOTT.SCQ1", errhp);
  SetAgent(agent_list[1], (text *)0, "SCOTT.SCQ2", errhp);
  SetAgent(agent_list[2], (text *)0, "SCOTT.SCQ3", errhp);

  checkerr(errhp,OCIAQListen(svchp, errhp, agent_list, 3, 0, &agent, 0));

  printf("MESSAGE for :- \n");
  GetAgent(agent, errhp);
  printf("\n");

}

Listening for Single Consumer Queues with Timeout of 120 Seconds

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <oci.h>

static void checkerr(errhp, status)
OCIError *errhp;
sword status;
{
    text errbuf[512];
    ub4 buflen;
    sb4 errcode;

    switch (status)
    {
   case OCI_SUCCESS:
       break;
   case OCI_SUCCESS_WITH_INFO:
       printf("Error - OCI_SUCCESS_WITH_INFO\n");
       break;
   case OCI_NEED_DATA:
       printf("Error - OCI_NEED_DATA\n");
       break;
   case OCI_NO_DATA:
       printf("Error - OCI_NO_DATA\n");
       break;
   case OCI_ERROR:
       OCIErrorGet ((dvoid *) errhp, (ub4) 1, (text *) NULL, &errcode,
       errbuf, (ub4) sizeof(errbuf), (ub4) OCI_HTYPE_ERROR);
       printf("Error - %s\n", errbuf);
       break;
   case OCI_INVALID_HANDLE:
       printf("Error - OCI_INVALID_HANDLE\n");
       break;
   case OCI_STILL_EXECUTING:
       printf("Error - OCI_STILL_EXECUTE\n");
       break;
   case OCI_CONTINUE:
       printf("Error - OCI_CONTINUE\n");
       break;
   default:
   break;
    }
}

/* set agent into descriptor */
/* void SetAgent(agent, appname, queue) */
void SetAgent(agent, appname, queue,errhp)

OCIAQAgent  *agent;
text        *appname;
text        *queue;
OCIError    *errhp;
{

  OCIAttrSet(agent, OCI_DTYPE_AQAGENT,
     appname ? (dvoid *)appname : (dvoid *)"",
     appname ? strlen((const char *)appname) : 0,
        OCI_ATTR_AGENT_NAME, errhp);

  OCIAttrSet(agent, OCI_DTYPE_AQAGENT,
     queue ? (dvoid *)queue : (dvoid *)"",
     queue ? strlen((const char *)queue) : 0,
        OCI_ATTR_AGENT_ADDRESS, errhp);

  printf("Set agent name to %s\n", appname ? (char *)appname : "NULL");
  printf("Set agent address to %s\n", queue ? (char *)queue : "NULL");
}

/* get agent from descriptor */
void GetAgent(agent, errhp)
OCIAQAgent *agent;
OCIError   *errhp;
{
text      *appname;
text      *queue;
ub4       appsz;
ub4       queuesz;

  if (!agent )
  {
    printf("agent was NULL \n");
    return;
  }
  checkerr(errhp, OCIAttrGet(agent, OCI_DTYPE_AQAGENT,
     (dvoid *)&appname, &appsz, OCI_ATTR_AGENT_NAME, errhp));
  checkerr(errhp, OCIAttrGet(agent, OCI_DTYPE_AQAGENT,
     (dvoid *)&queue, &queuesz, OCI_ATTR_AGENT_ADDRESS, errhp));
  if (!appsz)
     printf("agent name: NULL\n");
  else printf("agent name: %.*s\n", appsz, (char *)appname);
  if (!queuesz)
     printf("agent address: NULL\n");
  else printf("agent address: %.*s\n", queuesz, (char *)queue);
}

int main()
{
  OCIEnv *envhp;
  OCIServer *srvhp;
  OCIError *errhp;
  OCISvcCtx *svchp;
  OCISession *usrhp;
  OCIAQAgent *agent_list[3];
  OCIAQAgent *agent = (OCIAQAgent *)0;
  /* added next 2 121598 */
  int i;

 /* Standard OCI Initialization */

  OCIInitialize((ub4) OCI_OBJECT, (dvoid *)0,  (dvoid * (*)()) 0,
     (dvoid * (*)()) 0,  (void (*)()) 0 );

  OCIHandleAlloc( (dvoid *) NULL, (dvoid **) &envhp,
             (ub4) OCI_HTYPE_ENV, 0, (dvoid **) 0);

  OCIEnvInit( &envhp, (ub4) OCI_DEFAULT, 0, (dvoid **) 0);

  OCIHandleAlloc( (dvoid *) envhp, (dvoid **) &errhp, (ub4) OCI_HTYPE_ERROR,
     0, (dvoid **) 0);

  OCIHandleAlloc( (dvoid *) envhp, (dvoid **) &srvhp, (ub4) OCI_HTYPE_SERVER,
     0, (dvoid **) 0);

  OCIServerAttach( srvhp, errhp, (text *) 0, (sb4) 0, (ub4) OCI_DEFAULT);

  OCIHandleAlloc( (dvoid *) envhp, (dvoid **) &svchp, (ub4) OCI_HTYPE_SVCCTX,
     0, (dvoid **) 0);

  /* set attribute server context in the service context */
  OCIAttrSet( (dvoid *) svchp, (ub4) OCI_HTYPE_SVCCTX, (dvoid *)srvhp, (ub4) 0,
     (ub4) OCI_ATTR_SERVER, (OCIError *) errhp);

  /* allocate a user context handle */
  OCIHandleAlloc((dvoid *)envhp, (dvoid **)&usrhp, (ub4) OCI_HTYPE_SESSION,
      (size_t) 0, (dvoid **) 0);

  /* allocate a user context handle */
  OCIHandleAlloc((dvoid *)envhp, (dvoid **)&usrhp, (ub4) OCI_HTYPE_SESSION,
     (size_t) 0, (dvoid **) 0);

  OCIAttrSet((dvoid *)usrhp, (ub4)OCI_HTYPE_SESSION,
     (dvoid *)"scott", (ub4)strlen("scott"), OCI_ATTR_USERNAME, errhp);

  OCIAttrSet((dvoid *) usrhp, (ub4) OCI_HTYPE_SESSION,
      (dvoid *) "tiger", (ub4) strlen("tiger"),
      (ub4) OCI_ATTR_PASSWORD, errhp);

  OCISessionBegin (svchp, errhp, usrhp, OCI_CRED_RDBMS, OCI_DEFAULT);

  OCIAttrSet((dvoid *)svchp, (ub4)OCI_HTYPE_SVCCTX,
     (dvoid *)usrhp, (ub4)0, OCI_ATTR_SESSION, errhp);

  /* AQ LISTEN Initialization - allocate agent handles */
  for (i = 0; i < 3; i++)
  {
     agent_list[i] = (OCIAQAgent *)0;
     OCIDescriptorAlloc(envhp, (dvoid **)&agent_list[i],
         OCI_DTYPE_AQAGENT, 0, (dvoid **)0);
  }

  /*
   *   SCQ1, SCQ2, SCQ3 are single consumer queues in SCOTT's schema
   */

  SetAgent(agent_list[0], (text *)0, "SCOTT.SCQ1", errhp);
  SetAgent(agent_list[1], (text *)0, "SCOTT.SCQ2", errhp);
  SetAgent(agent_list[2], (text *)0, "SCOTT.SCQ3", errhp);

  checkerr(errhp,OCIAQListen(svchp, errhp, agent_list, 3, 120, &agent, 0));

  printf("MESSAGE for :- \n");
  GetAgent(agent, errhp);
  printf("\n");

}
